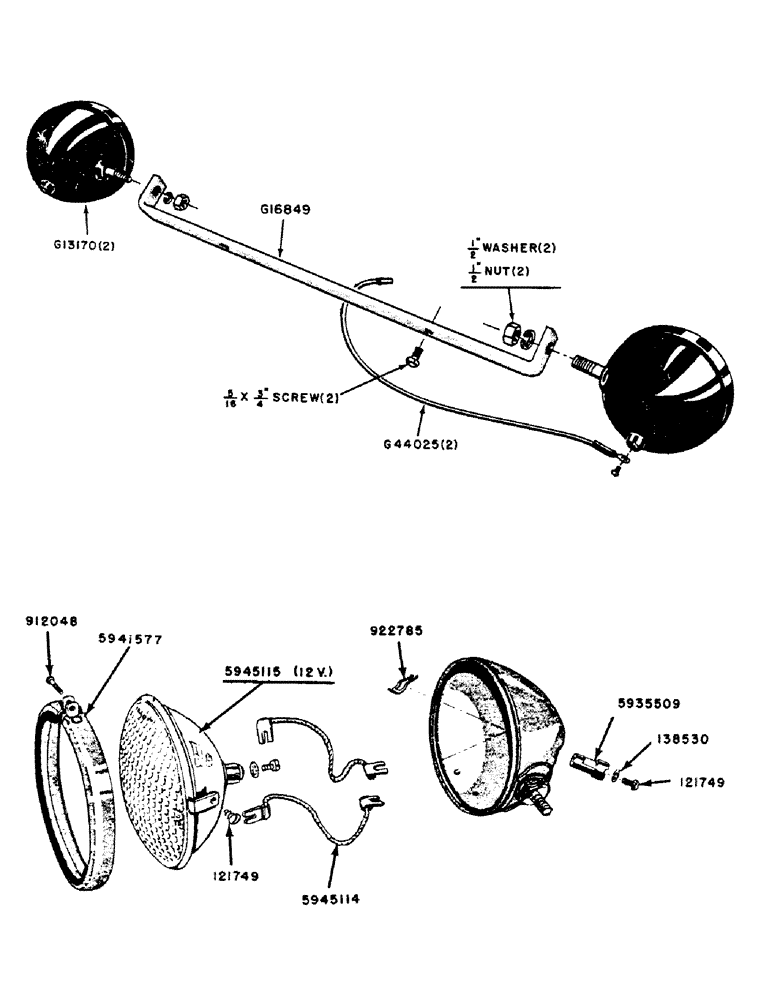

Запчасти Case IH 300B-SERIES (077) - MID MOUNTED HEAD LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

G13170

LAMP - head, RH and LH

2шт.

1/2" NC hex. nut and lockwasher (plated)

2шт.

G16849

BRACKET - mounting

1шт.

5/16" x 3/4" truss hd. mach. screw

2шт.

G44025

CABLE - head lamp

2шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal, G13170 head lamp

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal, G13170 head lamp Int Tooth, #8

2шт.

143189

WHEEL ASSY

SCREW - terminal, G13170 head lamp

1шт.

912048

SCREW - moulding, G13170 head lamp

1шт.

922785

SUPPORT

SPRING - terminal, G13170 head lamp

1шт.

5935509

PLATE - terminal, G13170 head lamp

1шт.

5941577

MOULDING ASSEMBLY, G13170 head lamp

1шт.

5945114

WIRING ASSEMBLY, G13170 head lamp

1шт.

5945115

SEALED BEAM ASSEMBLY (12 volt), G13170 head lamp

1шт.
