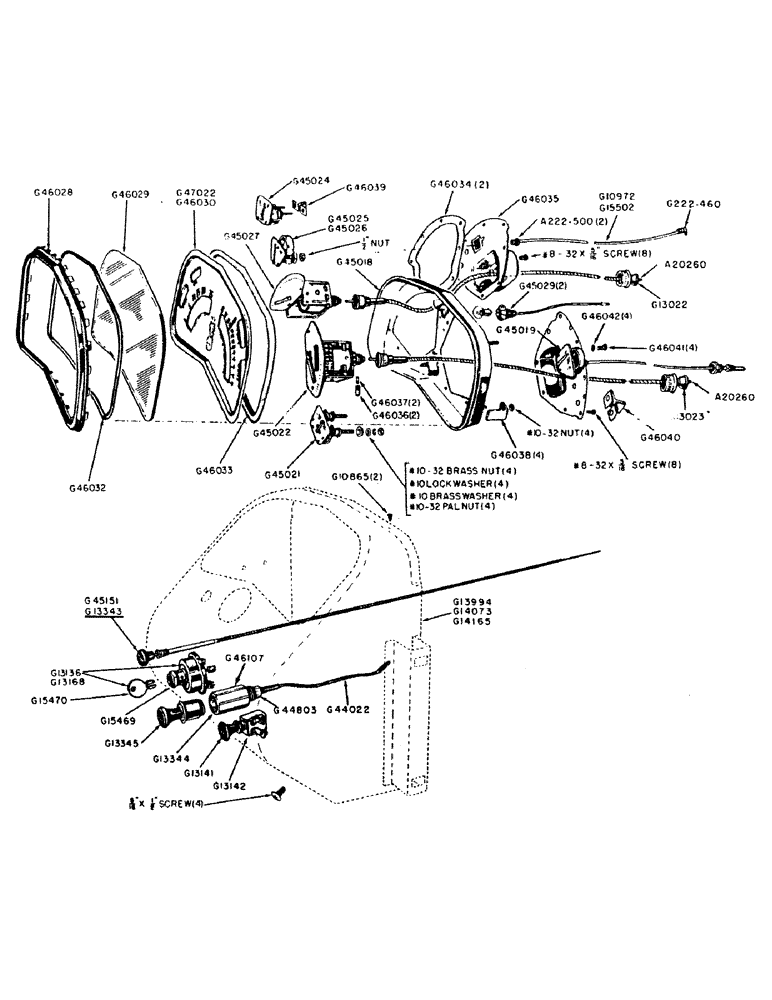

Запчасти Case IH 300B-SERIES (072) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

A20260

X

CABLE KIT - speedometer and tachometer drive (See G13022 and G13023)

1шт.

G10865

CUSHION - rubber button

2шт.

G10972

LINE

TUBE - oil pressure, engine to gage (spark ignition engine)

1шт.

G13022

CABLE

HOUSING - speedometer drive cable (39" long. See A20260)

1шт.

G13023

X

HOUSING - tachometer drive cable (34" long. See A20260)

1шт.

G13136

IGNITION SWITCH

SWITCH - starting and ignition (includes keys). See G13168

1шт.

#8 - 32 x 1/4" rd. hd. terminal screw w/Shakeproof lockwasher

2шт.

G13141

KNOB

- light switch

1шт.

G13142

IGNITION SWITCH

SWITCH - light (includes knob)

1шт.

G13168

SWITCH

- starting and ignition (includes keys) Magneto ignition

1шт.

G13343

WIRE - engine shutoff (diesel engine)

1шт.

G13344

SOCKET - cigarette lighter (includes cable and fuse)

1шт.

G13345

UNIT

- pop-out, cigarette lighter

1шт.

G13994

PANEL - instrument (gasoline engine)

1шт.

G14073

PANEL - instrument (diesel engine)

1шт.

5/16" x 3/4" NC truss hd. mach. screw (cadmium plated)

4шт.

G14165

PANEL - instrument (L.P.G. engine)

1шт.

G15469

NUT

- face, ignition and starting switch

1шт.

G15470

KEY

- ignition and starting switch

1шт.

G15502

TUBE - oil pressure, engine to gage (diesel engine)

1шт.

G44022

ELECTRICAL WIRE

CABLE - cigarette lighter socket

1шт.

G44803

FUSE - cigarette lighter socket

1шт.

G45018

CASE

- instrument cluster, includes studs

1шт.

#10 - 32 hex. nut (Keps)

4шт.

G45019

GAUGE

GAGE - heat indicator, includes case and 49" cable

1шт.

#8 - 32 x 5/16" indented hd. self-tapping screw

8шт.

G45021

AMMETER

ASSEMBLY

1шт.

#10 - 32 hex. nut (brass) and plain washer brass

2шт.

#10 - 32 Pal nut and #10 lockwasher

2шт.

G45022

TACHOMETER

AND HOURMETER ASSEMBLY

1шт.

G45024

X

GAGE - fuel

1шт.

#10 - 32 hex. nut (brass) and plain washer (brass)

2шт.

#10 - 32 Pal nut and #10 lockwasher

2шт.

G45025

GAGE - oil pressure (Spark ignition engine)

1шт.

G45026

GAGE - oil pressure (diesel engine)

1шт.

G45027

SPEEDOMETER

1шт.

G45029

LAMP SOCKET AND CABLE (includes G4-1/2 6-8 volt 2 CP bulb Mfr. #57)

2шт.

G45151

ROD - choke

1шт.

G46028

RIM

- clamp, instrument panel glass

1шт.

G46029

GLASS

- instrument panel

1шт.

G46030

FACE - instrument panel (300B Series)

1шт.

G46032

GASKET,0.125" ID x 0.188" OD

GASKET - rubber tube, between glass and rim

1шт.

G46033

GASKET

- rubber channel, Serial Range: rim-case

1шт.

G46034

GASKET - cork, instrument case

2шт.

G46035

CASE - speedometer, fuel gage and oil gage

1шт.

#8 - 32 x 5/16" indented hd. self-tapping screw

8шт.

G46036

TUBE - oil wick retainer 0.1875" OD x 0.687" L

2шт.

G46037

OIL WICK - felt, speedometer and tachometer drives

2шт.

G46038

CLAMP - mounting, instrument cluster

4шт.

G46039

INSULATOR

- fuel gage posts

1шт.

G46040

INSULATOR - ammeter posts

1шт.

G46041

SCREW - retaining, speedometer and tachometer

4шт.

G46042

WASHER - rubber, retaining screw

4шт.

G46107

PIN

SHELL - clamping, G13344 lighter socket

1шт.

G47022

FACE - instrument panel (400B Series)

1шт.

G222-460

ELBOW - oil pressure tube (94LB - 1/8" x 1/8" includes A222-500 nut)

1шт.

A222-500

NUT - oil pressure tube (81LB - 1/8")

2шт.
