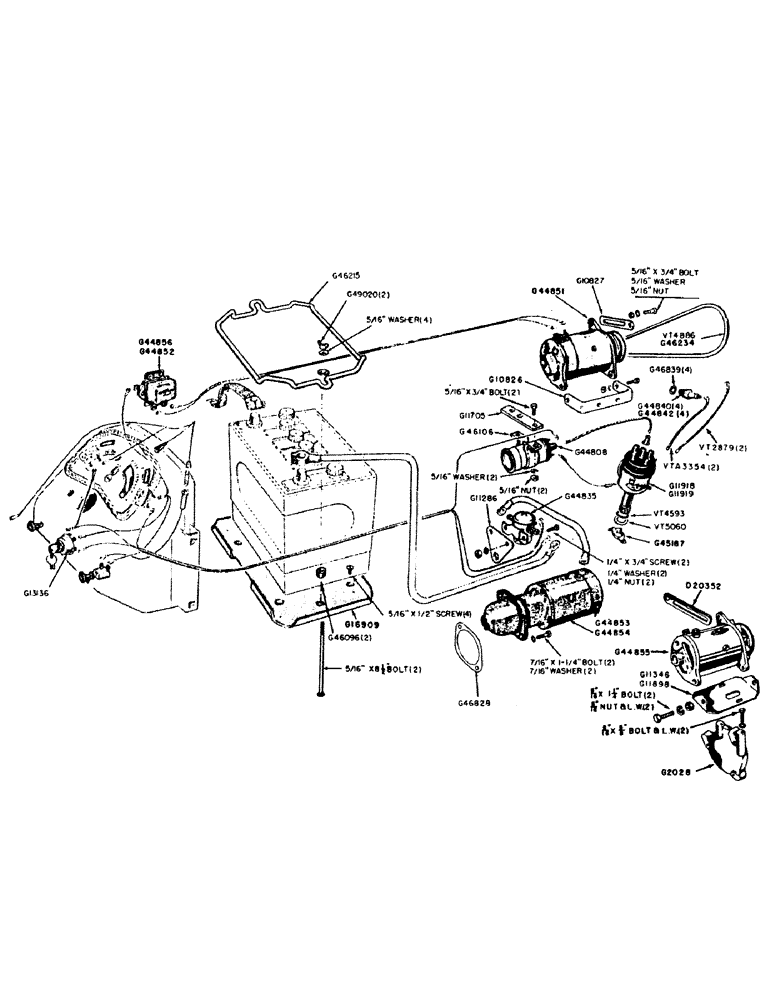

Запчасти Case IH 300B-SERIES (067A) - ELECTRIC SYSTEM DELCO-REMY, BATTERY, L.H. AND R.H. MOUNTED GENERATOR, STARTING MOTOR AND IGNITION (04) - ELECTRICAL SYSTEMS

BATTERY - 12 volt (Exide #2SM-50) Not furnished by J. I. Case Co.

1шт.

G16909

PAN

PAN - battery base

1шт.

5/16" x 1/2" flat hd. mach. screw (Spin-Lok)

4шт.

G46096

RETAINER

BUSHING - rubber, battery frame bolt

2шт.

G46215

X

FRAME - battery hold down

1шт.

5/16" x 8-1/2" carr. bolt w/lockwasher and plain washer

2шт.

G49020

NUT

NUT - wing, battery frame bolts (5/16" NC)

2шт.

G10826

SPARE PART BRACKET - generator mounting

1шт.

3/8" N.C. hex. nut and lockwasher

2шт.

G10827

STRAP - adjusting, generator belt, L.H. mounted generator - Delco-Remy

1шт.

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G44851

SPARE PART GENERATOR W/PULLEY (Delco-Remy #1101011), L.H. mounted generator - Delco-Remy

1шт.

108004A1R

REMAN-GENERATOR

Remanufactured, Generator 12 volt 11 ampere, N.A. Only

1шт.

108004A1C

CORE-GENERATOR

Return Number, Generator 12 volt 11 ampere, N.A. Only

1шт.

5/16" x 1-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G44852

REGULATOR

REGULATOR - voltage (Delco-Remy #1119191), L.H. mounted generator - Delco-Remy

1шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

VT4886

X

"V" BELT - fan and generator drive, L.H. mounted generator - Delco-Remy

1шт.

D20352

STRAP - adjusting, generator belt, R.H. mounted generator - Delco-Remy

1шт.

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G2028

SUPPORT - mounting bracket, generator, R.H. mounted generator - Delco-Remy

1шт.

B11346

BRACKET - mounting, generator (Use with new Power Steering pump. See Page 145), R.H. mounted generator - Delco-Remy

1шт.

G11898

SPARE PART BRACKET - mounting, generator (See G11346), R.H. mounted generator - Delco-Remy

1шт.

5/16" x 5/8" N.C. hex. hd. bolt w/lockwasher

2шт.

G44855

X

GENERATOR (Delco-Remy #11100371), R.H. mounted generator - Delco-Remy

1шт.

5/16" x 1-1/4" N.F. hex. hd. bolt w/hex. nut, lockwasher and plain washer

2шт.

G44856

REGULATOR

- voltage (Delco-Remy #1118901), R.H. mounted generator - Delco-Remy

1шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

G46234

V-BELT,0.78" W

Fan and Generator Drive, R.H. Mounted

1шт.

G11286

BRACKET - solenoid mounting, starting motor & ignition Delco Remy

1шт.

G11705

BRACKET

BRACKET - mounting, coil to engine, starting motor & ignition Delco Remy

1шт.

G11918

X

DISTRIBUTOR - "400B" Series (Delco-Remy #1111908) includes G45187 advance arm, starting motor & ignition Delco Remy

1шт.

G11919

X

DISTRIBUTOR - "300B" Series (Delco-Remy #1111909) includes G45187 advance arm, starting motor & ignition Delco Remy

1шт.

G13136

IGNITION SWITCH

SWITCH - (includes keys), starting motor & ignition Delco Remy

1шт.

Ref: G13136 Switch - includes key # G15470.

1шт.

G44808

X

COIL - ignition (Auto-Lite #200564) Includes clamp and screw, starting motor & ignition Delco Remy

1шт.

5/16" x 3/4" N.F. hex hd. bolt w/hex nut and lockwasher

2шт.

G44835

SOLENOID

SOLENOID - starter switch, starting motor & ignition Delco Remy

1шт.

1/4" x 3/4" rd. hd. mach. screw w/hex nut and lockwasher

2шт.

G44840

SPARK PLUG

SPARK PLUG (Champion D16-18 MM) includes gasket, starting motor & ignition Delco Remy

4шт.

G44842

SPARK PLUG

SPARK PLUG (Champion D14-18MM) includes gasket ("400B" Series), starting motor & ignition Delco Remy

4шт.

G44853

SPARE PART MOTOR - starting, "300B" Series (Delco-Remy #1107745), starting motor & ignition Delco Remy

1шт.

7/16" x 1-1/4" N.C. hex hd. bolt w/lockwasher

2шт.

G44854

MOTOR

"400B" Series (Delco-Remy #1107755), starting motor & ignition Delco Remy

1шт.

G45187

ARM - advance, distributor (Delco-Remy #1947919), starting motor & ignition Delco Remy

1шт.

G46106

BRACKET

CLAMP - coil (Auto-Lite #250505), starting motor & ignition Delco Remy

1шт.

#10-32 x 1-1/2" rd. hd. mach. screw (plated)

1шт.

G46828

GASKET

GASKET - ("400B" Series), starting motor & ignition Delco Remy

1шт.

G46839

GASKET

GASKET - spark plug, starting motor & ignition Delco Remy

4шт.

6019A

HANDLE - spark plug wrench (Not shown), starting motor & ignition Delco Remy

1шт.

VT2879

X

WIRE - #1 and #4 spark plug (10-1/2" long), starting motor & ignition Delco Remy

2шт.

VT2879

X

WIRE - #1 and #4 spark plug (10-1/2" long), starting motor & ignition Delco Remy

2шт.

VT3358

SPARE PART WRENCH spark plug (not shown), starting motor & ignition Delco Remy

1шт.

VT4593

X

"O" RING - distributor to block, starting motor & ignition Delco Remy

1шт.

VT5060

X

WASHER - thrust, distributor advance arm (Auto-Lite #IG-816), starting motor & ignition Delco Remy

1шт.

VTA3354

X

WIRE - #2 and #3 spark plug (8-1/2" long), starting motor & ignition Delco Remy

2шт.

V14652

SPARE PART SEAL - felt, ("300B" Series), starting motor & ignition Delco Remy

1шт.
