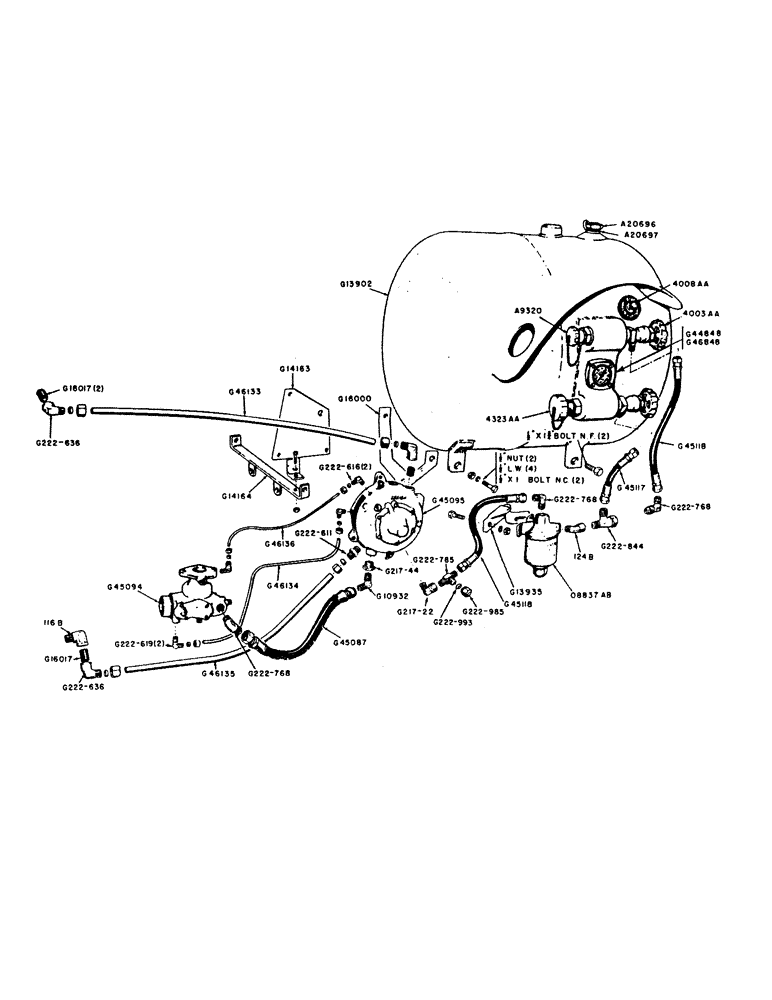

Запчасти Case IH 300B-SERIES (034) - SPARK IGNITION ENGINES, FUEL TANK, L.P. GAS, L.P. GAS ATTACHMENTS, 300B SERIES (03) - FUEL SYSTEM

A9320

VALVE - vapor return

1шт.

A20696

SEAL

VALVE - safety relief

1шт.

A20697

WIPER

CAP - rain

1шт.

G13902

TANK - fuel (Includes valve, gage and fittings)

1шт.

1/2" x 1" N.C. hex. hd. bolt w/hex. nut and lockwasher

2шт.

1/2" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G16000

BRACKET - front support, fuel tank

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G44848

GAGE - fuel (Includes gasket and 4-1/4" x 15/16" filister hd. screws)

1шт.

G44848

GASKET - fuel gage

1шт.

4003AA

X

VALVE - outlet, liquid and vapor

2шт.

4008AA

GAGE - fixed liquid level

1шт.

4323AA

VALVE - liquid filler

1шт.

G217-22

STREET ELBOW - 90deg., hose to regulator (116B-1/4" P.T.), L.P. gas attachments - 300B series

1шт.

G217-44

BUSHING - reducing, hose to regulator (110B-1/2" 00 x 3/8" P.T.), L.P. gas attachments - 300B series

1шт.

G222-611

FITTING STRAIGHT, water line (68F-1/2" x 3/8"), L.P. gas attachments - 300B series

1шт.

G222-616

ELBOW - 90deg., idle line (69F-3/16" x 1/8"), L.P. gas attachments - 300B series

2шт.

G222-619

ELBOW - 90deg., balance line (69F-5/16" x 1/8"), L.P. gas attachments - 300B series

2шт.

G222-636

ELBOW - 90deg., water line (70F-1/2" x 3/8"), L.P. gas attachments - 300B series

3шт.

G222-768

ELBOW - 90deg., hose to filter, regulator and carburetor (49F-3/8" x 1/4"), L.P. gas attachments - 300B series

3шт.

G222-785

TEE FITTING - filter to regulator hose (51F-3/8" x 1/4"), L.P. gas attachments - 300B series

1шт.

G222-844

TEE FITTING - liquid hose (53F-3/8" x 1/4"), L.P. gas attachments - 300B series

1шт.

G222-985

CAP NUT - tee fitting (640FB-5/8" - 18"), L.P. gas attachments - 300B series

1шт.

G222-993

GASKET - tee fitting (625F-3/8"), L.P. gas attachments - 300B series

1шт.

G10932

ELBOW

- hose to regulator, L.P. gas attachments - 300B series

1шт.

G13935

BRACKET - mounting, 08837AB filter, L.P. gas attachments - 300B series

1шт.

G14163

BRACKET - regulator mounting, L.P. gas attachments - 300B series

1шт.

1/4" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G14164

SUPPORT - regulator mounting bracket and L.H. side panel, L.P. gas attachments - 300B series

1шт.

G16017

X

NIPPLE - brass, water line (3/8" P.T. x 1" long), L.P. gas attachments - 300B series

3шт.

G45087

HOSE - regulator to carburetor, L.P. gas attachments - 300B series

1шт.

G45094

CARBURETOR - Ensign Model Mg1-1" #4216, L.P. gas attachments - 300B series

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G45095

REGULATOR (Ensign Model W#4207), L.P. gas attachments - 300B series

1шт.

G45117

HOSE - liquid, tank to filter, L.P. gas attachments - 300B series

1шт.

G45118

HOSE - vapor, tank to filter and filter to regulator, L.P. gas attachments - 300B series

2шт.

G46133

LINE - water, outlet elbow to regulator, L.P. gas attachments - 300B series

1шт.

G46134

LINE - balance, regulator to carburetor, L.P. gas attachments - 300B series

1шт.

G46135

LINE - water, regulator to inlet elbow, L.P. gas attachments - 300B series

1шт.

G46136

LINE - idle, regulator to carburetor, L.P. gas attachments - 300B series

1шт.

562AB

GASKET - carburetor to manifold, L.P. gas attachments - 300B series

1шт.

8837AB

FILTER - liquid (Ensign #6257), L.P. gas attachments - 300B series

1шт.

5/16" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

124B - 1/2" 45deg. elbow

1шт.
