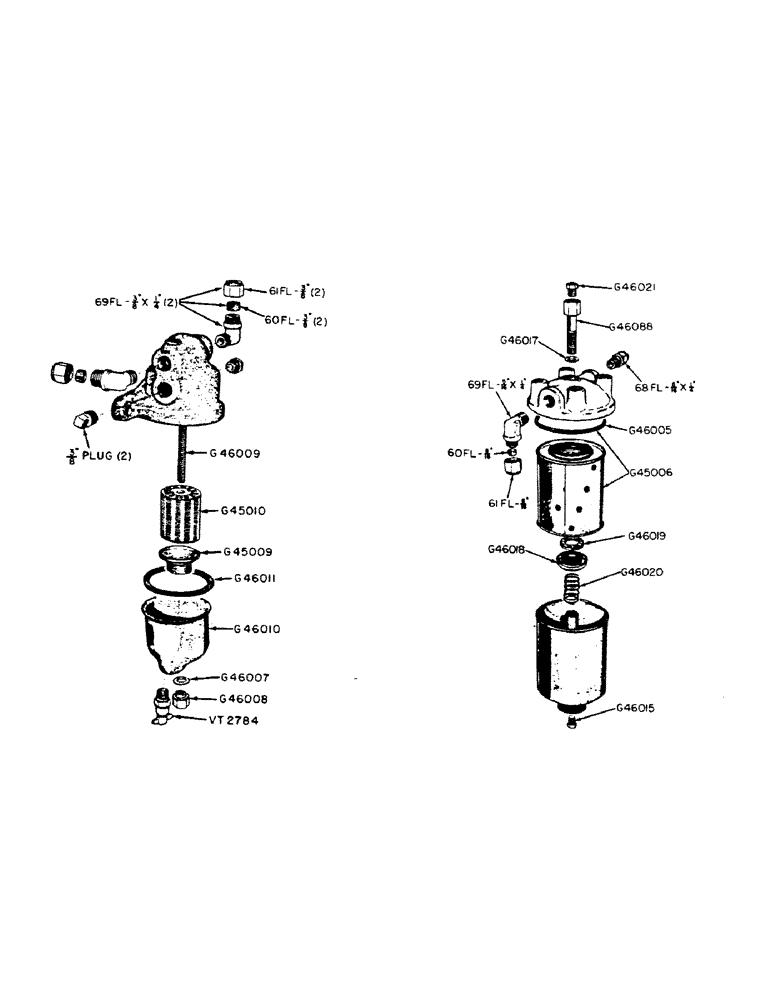

Запчасти Case IH 300B-SERIES (060) - DIESEL ENGINE, FUEL FILTERS, PRTS FOR G13316 FIRST STAGE FILTER, PRTS FOR G11067 SECOND STAGE FILTER (02) - ENGINE

G13316

FILTER complete

1шт.

3/8" sq. hd. pipe plug

2шт.

69FL - 3/8" x 1/4" elbow, includes 60FL - 3/8" sleeve and 61FL - 3/8" nut

2шт.

G45009

NUT - element stud

1шт.

G45010

ELEMENT - filter

1шт.

G46007

GASKET - bowl nut

1шт.

G46008

NUT - bowl

1шт.

G46009

STUD - element

1шт.

G46010

BOWL

1шт.

G46011

GASKET - filter, Serial Range: head-bowl

1шт.

VT2784

X

PLUG - drain

1шт.

G11067

FILTER

complete, parts for second stage

1шт.

68FL - 5/16" x 1/4" connector, includes 60FL - 5/16" sleeve and 61FL - 5/16" nut

1шт.

69FL - 5/16" x 1/4" elbow, includes 60FL - 5/16" sleeve and 61FL - 5/16" nut

1шт.

G45006

FILTER, ELEMENT

FILTER CARTRIDGE ASSEMBLY, includes head gasket, parts fo G11067 second stage

1шт.

G46005

GASKET

- head, parts fo G11067 second stage filter

1шт.

G46015

PLUG - drain and bleeder, parts fo G11067 second stage filter

2шт.

G46017

GASKET - capscrew, parts fo G11067 second stage filter

1шт.

G46018

PLATE - sealing, parts fo G11067 second stage filter

1шт.

G46019

GROMMET - sealing plate, parts fo G11067 second stage filter

1шт.

G46020

SPRING, parts fo G11067 second stage filter

1шт.

G46088

CAPSCREW, parts fo G11067 second stage filter

1шт.
