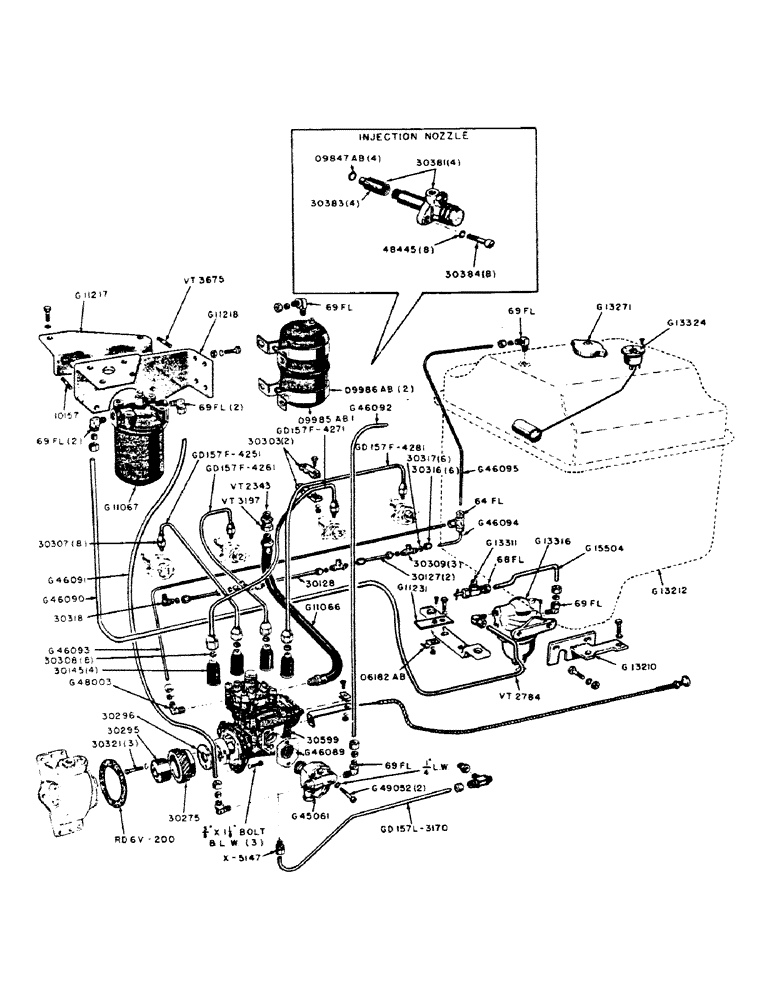

Запчасти Case IH 300B-SERIES (056) - DIESEL ENGINE, FUEL SYSTEM, FUEL TANK AND FILTERING SYSTEM (02) - ENGINE

10157

STUD - fuel filter mounting bracket (3/8" x 1-1/4")

1шт.

3/8" NC hex. nut and lockwasher

1шт.

A7336

CUSHION

BUSHING - rubber, fuel tank support

3шт.

G10690

SUPPORT - front, fuel tank

1шт.

5/16" x 1" NC hex. hd. bolt w/lockwasher

2шт.

G10772

GASKET

- sender

1шт.

G10994

X

NUT - lock, fuel tank stud

3шт.

G11066

HOSE - final stage filter to injection pump

1шт.

G11067

FILTER

- fuel, second stage

1шт.

G11217

BRACE - mounting bracket, fuel filter

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

1шт.

G11218

BRACKET - mounting, second and final stage filters

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

1шт.

G11231

STRAP - fuel line clip

1шт.

5/16" x 3/4" NF hex. hd. bolt w/hex. nut and lockwasher

1шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank, Serial Range: sender-gage

1шт.

G13210

BRACKET - mounting, first stage fuel filter

1шт.

3/8" x 1-1/4" NC hex. hd. bolt w/lockwasher

2шт.

G13212

TANK - fuel

1шт.

G13271

CAP

- fuel tank

1шт.

G13311

VALVE

- needle, fuel tank

1шт.

G13316

FILTER - fuel, first stage

1шт.

3/8" x 1-1/4" NF hex. hd. bolt w/hex. nut and lockwasher

2шт.

G13324

SENDER UNIT

SENDER - fuel gage

1шт.

#10-32 x 7/16" rd. hd. self-tapping screw (Philips hd.)

5шт.

G15504

LINE - fuel, needle valve to first stage filter

1шт.

69FL - 3/8" x 1/4" elbow, includes 60FL - 3/8" sleeve and 61FL - 3/8" nut

1шт.

68FL - 3/8" x 1/4" connector, includes 60FL - 3/8" sleeve and 61FL - 3/8" nut

1шт.

G46090

LINE - fuel, first stage filter to second stage filter

1шт.

69FL - 3/8" x 1/4" elbow, includes 60FL - 3/8" sleeve and 61FL - 3/8" nut

2шт.

G46091

LINE - fuel, second stage filter to supply pump

1шт.

69FL - 5/16" x 1/4" elbow, includes 60FL - 5/16" sleeve and 61FL - 5/16" nut

2шт.

G46092

LINE - fuel, supply pump to final stage filter

1шт.

69FL - 5/16" x 1/4" elbow, includes 60FL - 5/16" sleeve and 61FL - 5/16" nut

2шт.

G46093

LINE - overflow, check valve, Serial Range: elbow-tee

1шт.

64FL - 3/16" OD x 3/16" OD x 3/16" OD includes 3 - 60FL - 3/16" sleeves and 3 - 61FL - 3/16" nuts

1шт.

G46094

LINE - overflow, leak off, Serial Range: tubes-tee

1шт.

G46095

LINE - overflow, Serial Range: tee-tank

1шт.

69FL - 3/16" x 1/8" elbow, includes 60Fl - 3/16" sleeve and 61FL - 3/16" nut

1шт.

G48003

ELBOW - check valve, includes 60FL - 3/16" sleeve and 61FL - 3/16" nut

1шт.

6182AB

CLIP - fuel line

1шт.

9985AB1

FILTER - fuel, final stage

1шт.

9986AB

CLAMP - final stage filter

2шт.

1/4" x 1/2" rd. mach. screw

2шт.

3/8" x 3/4" NF hex. hd. bolt w/hex. nut and lockwasher

4шт.

30577HT

WASHER - fuel tank stud

3шт.

VT2343

X

ADAPTER - hose union to final stage filter

1шт.

VT2784

X

VALVE - drain, first stage filter

1шт.

VT3197

UNION - adapter, hose to final stage filter

1шт.

VT3675

X

STUD - fuel filter mounting bracket (3/8" x 1-1/2")

1шт.

3/8" NC hex. nut and lockwasher

1шт.
