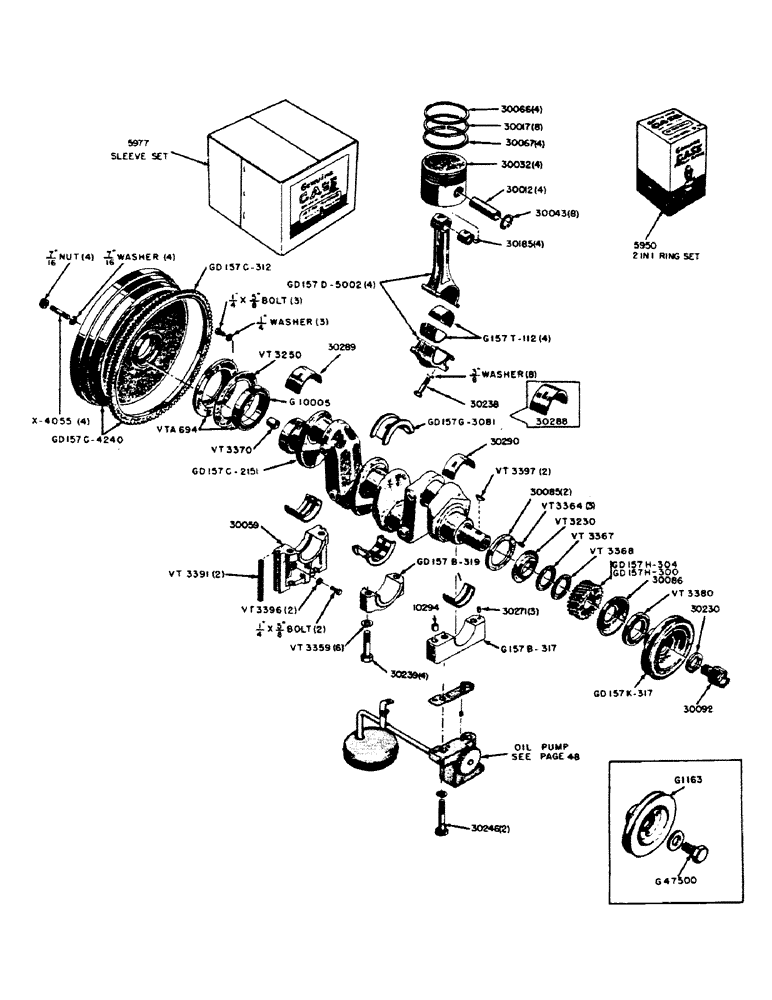

Запчасти Case IH 300B-SERIES (046) - DIESEL ENGINE, CRANKSHAFT AND FLYWHEEL, PISTONS AND CONNECTING RODS (02) - ENGINE

10294

BUSHING

DOWEL - ring, front bearing, Serial Range: cap-block

1шт.

30059

PRESSURE PIPE

CAP - rear bearing, crankshaft

1шт.

30085

WASHER - thrust, crankshaft

2шт.

30086

THROWER - oil, crankshaft

1шт.

30092

JAW - starting

1шт.

NLS

NO LONGER SERVICED

WASHER - starting jaw

1шт.

30239

SCREW - center and rear bearing caps to block (1/2" x 2-1/2")

4шт.

30246

SCREW - front bearing cap to block (1/2" x 3 1/2")

2шт.

30271

DOWEL - front and center bearing caps

3шт.

30289

ARM

LINERS - crankshaft rear bearing, top and bottom half (standard)

1шт.

30289-.002

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

30289-.020

LINERS - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

30289-.040

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

30289-.060

LINERS - crankshaft rear bearing, top and bottom half (.060" undersize)

1шт.

30290

HOSE

LINERS - crankshaft front bearing, top and bottom half (standard)

1шт.

30290-.002

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

30290-.020

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

30290-.040

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

30290-.060

LINERS - crankshaft front bearing, top and bottom half (.060" undersize)

1шт.

G157B-317

CAP - front bearing, crankshaft

1шт.

GD157B-319

CAP - center bearing, crankshaft

1шт.

GD157C-312

GEAR - ring, flywheel (See GD157C-4240)

1шт.

GD157C-424

FLYWHEEL (Use GD157C-4240)

1шт.

GD157C-2151

CRANKSHAFT (includes pilot bushing)

1шт.

GD157C-4240

FLYWHEEL (includes ring gear)

1шт.

GD157G-3081

LINERS - crankshaft center bearing, top and bottom half (standard)

1шт.

GD157G-3081-.002

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

GD157G-3081-.020

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

GD157G-3081-.040

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

GD157G-3081-.060

LINERS - crankshaft center bearing, top and bottom half (.060" undersize)

1шт.

GD157H-304

GEAR - timing, crankshaft

1шт.

GD157K-317

PULLEY - fan drive (See G11119M)

1шт.

X-4055

STUD - flywheel to crankshaft (7/16" x 1-7/8")

4шт.

7/16" NF hex. nut and lockwasher

4шт.

G1163

PULLEY - fan drive (See G111119M)

1шт.

G10005

X

OIL SEAL - rear, crankshaft G45700

1шт.

G11119M

PULLEY - fan drive (Includes G45700 nut) For front mounted hydraulic equipment (Mchy. Item)

1шт.

G45700

X

SCREW - fan drive pulley (See G11119M)

1шт.

VT3230

X

PLATE - thrust, crankshaft

1шт.

VT3250

X

GASKET - rear oil seal retainer

1шт.

VT3359

WASHER - bearing cap screw

6шт.

VT3364

X

PIN - thrust washer

3шт.

VT3367

X

SHIM - thrust plate, crankshaft (.002")

1шт.

VT3368

X

SHIM - thrust plate, crankshaft (.008")

1шт.

VT3370

X

BUSHING - pilot, crankshaft

1шт.

VT3380

SEAL - dust, fan drive pulley

1шт.

VT3391

PACKING

- rear bearing cap

2шт.

VT3396

X

GASKET - copper, oil seal, Serial Range: retainer-cap

2шт.

VT3397

KEY - timing gear and fan drive, Serial Range: pulley-crankshaft

2шт.

VTA694

X

RETAINER - oil seal, crankshaft rear

1шт.

1/4" x 5/8" NC hex. hd. bolt

5шт.

1/4" lockwasher

3шт.

5950

KIT - piston ring (2 in 1 chrome), connecting rods

1шт.

5960

SPARE PART

PIN PISTON (Set of 4), connecting rods

1шт.

5977

KIT

CYLINDER SLEEVE AND PISTON KIT, connecting rods

1шт.

30012

PIN - piston (See 5960), connecting rods

4шт.

30017

WASHER

RING - piston (2nd and 3rd groove) See 5950,connecting rods

8шт.

30032

PRESSURE PIPE

PISTON (See 5977), connecting rods

4шт.

30043

CIRCLIP

RING - retaining, piston pin, connecting rods

8шт.

30066

SEALING RING COLLAR

RING - piston (1st groove) See 5950, connecting rods

4шт.

30067

RING - piston (4th groove) See 5950, connecting rods

4шт.

30185

BUSHING - connecting rod, pistons

4шт.

30238

FLASHER UNIT

BOLT - connecting rod, pistons

8шт.

3/8" Shakeproof lockwasher

8шт.

G157D-5002

ROD - connecting (includes bushing and bolts), pistons

4шт.

G157T-112

LINERS - connecting rod bearing, top and bottom half (standard), pistons

4шт.

G157T-112-.002

LINERS - connecting rod bearing, top and bottom half (.002" undersize), pistons

4шт.

G157T-112-.020

LINERS - connecting rod bearing, top and bottom half (.020" undersize), pistons

4шт.

G157T-112-.040

LINERS - connecting rod bearing, top and bottom half (.040" undersize)), pistons

4шт.

G157T-112-.060

LINERS - connecting rod bearing, top and bottom half (.060" undersize)), pistons

4шт.
