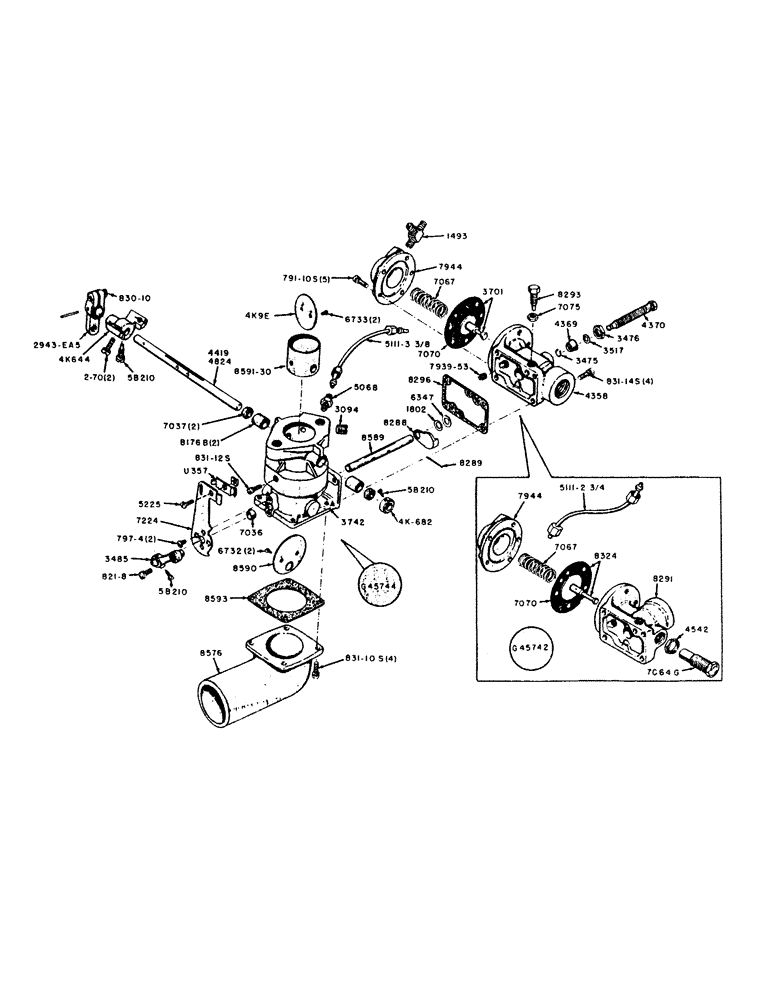

Запчасти Case IH 300B-SERIES (042) - SPARK IGNITION ENGINES, G45742 CARBURETOR, G45744 CARBURETOR, 400B SERIES (02) - ENGINE

2-70

KEY

SCREW - adjusting, throttle stop

2шт.

4K9-E

DISC - throttle

1шт.

4K644

THROTTLE STOP ASSEMBLY

1шт.

4K682

THROTTLE SHAFT COLLAR ASSEMBLY

1шт.

5B210

SET SCREW - choke lever, throttle stop and throttle shaft collar

3шт.

B176-B

BUSHING - throttle

2шт.

7C64G

SCREW - fuel adjusting (G45742)

1шт.

U357

CLAMP - choke rod

1шт.

791-10S

SCREW - economizer cover

5шт.

797-4

SCREW - choke rod support

2шт.

821-8

HOSE

SCREW - swivel

1шт.

830-10

SCREW - clamp, throttle rod

1шт.

831-10S

SCREW - air intake elbow

4шт.

831-12S

SET SCREW - venturi

1шт.

831-14S

SCREW - fuel inlet

4шт.

1493

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

TEE - economizer tube

1шт.

1802

TOY

WASHER - spring, valve lever

1шт.

1850

KIT - repair parts

1шт.

2943-EA5

THROTTLE LEVER ASSEMBLY

1шт.

3094

PLUG - pipe (1/8")

1шт.

3475

HOUSING

SNAP RING - fuel adjusting screw valve (G45744)

1шт.

Q3476

WASHER

LOCKNUT - fuel adjusting screw (G45744)

1шт.

3485

CLEVIS

CHOKE LEVER COMPLETE

1шт.

3517

LINE

WASHER - spring, fuel adjusting screw (G45744)

1шт.

3701

PIN

ECONOMIZER DIAPHRAGM ASSEMBLY (G45744)

1шт.

3742

HAIR PIN COTTER

BODY - carburetor

1шт.

4358

SHEAVE

BODY - fuel inlet and economizer (G45744)

1шт.

4369

VALVE - fuel adjusting screw (G45744)

1шт.

4370

SCREW - fuel adjusting (G45744)

1шт.

4419

SHAFT - throttle, complete (G45744)

1шт.

4542

LOCKNUT - fuel adjusting screw (G45742)

1шт.

4824

SHAFT - throttle (G47542)

1шт.

5068

FITTING - compression (3/16")

1шт.

5111-2-3/4

TUBE - fuel, carburetor body to economizer (G45742)

1шт.

5111-3-3/8

TUBE - main body to inlet body (G45744)

1шт.

5225

SPEAKER

SCREW AND NUT - choke clamp

1шт.

6347

THREADED TIE-ROD

WASHER - valve lever

1шт.

6732

SCREW - choke disc

2шт.

6733

SCREW - throttle shaft

2шт.

7036

BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8

DUST SEAL - choke shaft

1шт.

7037

TESTER

DUST SEAL - throttle shaft

2шт.

7067

CYLINDER END CAP

SPRING - economizer

1шт.

7070

DIAPHRAGM - economizer

1шт.

7075

LOCTITE

LOCKNUT - starting adjusting screw

1шт.

7224

BOLT

SUPPORT - choke rod

1шт.

7939-53

SCREW - bleed

1шт.

7944

HYDRAULIC HOSE,0.50" ID x 100.00", SAE J517,SAE J516,SAE 100R17

COVER - economizer

1шт.

8288

BUSHING

LEVER - valve

1шт.

8289

WASHER

PIN - valve lever

1шт.

8291

SPINDLE

BODY - fuel inlet and economizer (G45742)

1шт.

8293

CAP

SCREW - starting adjusting

1шт.

8296

DECAL

GASKET - inlet and economizer body

1шт.

8324

TUBE

ECONOMIZER DIAPHRAGM ASSEMBLY (G45742)

1шт.

8576

BLADE

ELBOW - air intake

1шт.

8589

SHAFT - choke

1шт.

8590

DISC - choke

1шт.

8591-30

VENTURI

1шт.

8593

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

GASKET - elbow to body

1шт.
