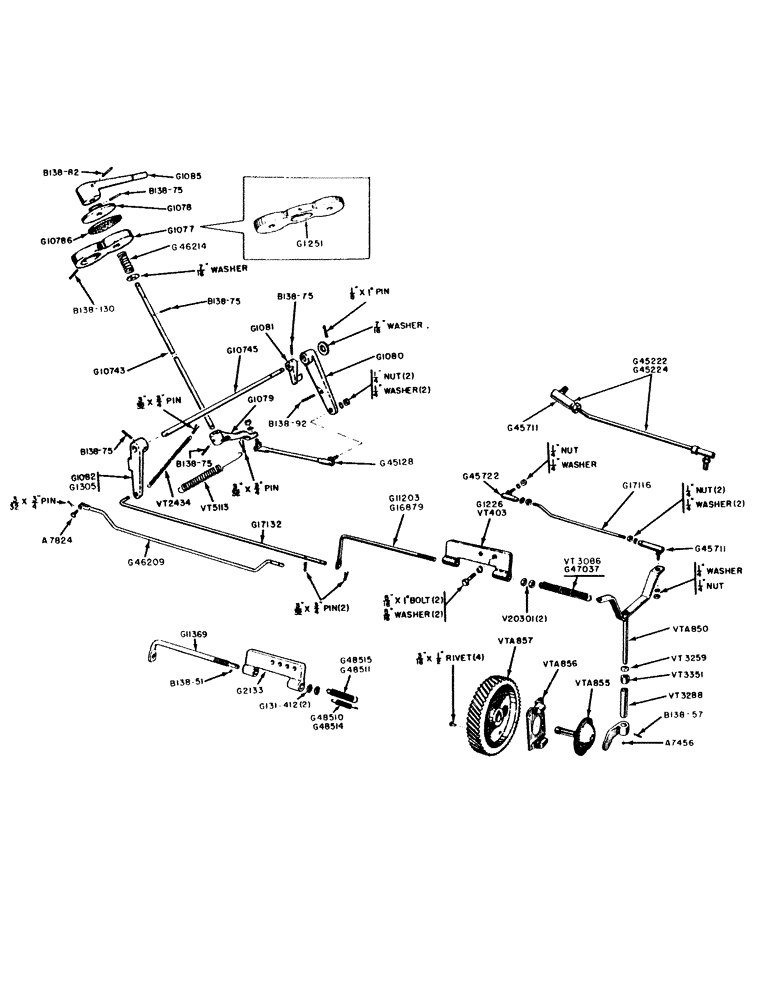

Запчасти Case IH 300B-SERIES (032) - SPARK IGNITION ENGINES, GOVERNOR AND THROTTLE CONTROL, DOUBLE SPRING GOVERNOR CONTROL (02) - ENGINE

A7456

X

BALL - thrust, governor arm (3/16" dia.)

1шт.

A7824

X

PIN - for G46209 connecting link (410B, 411B)

1шт.

3/32" x 3/4" cotter pin

1шт.

G1077

SUPPORT - friction plate (310B, 311B) See G1251

1шт.

G1078

PLATE

- friction, hand lever

1шт.

G1079

LEVER

- lower, hand throttle shaft

1шт.

3/32" x 3/4" cotter pin

1шт.

G1080

LEVER - actuating, throttle cross shaft

1шт.

G1081

LEVER - cross shaft

1шт.

G1082

LEVER

- governor control (30B, 311B) See G1305

1шт.

G1085

LEVER

HANDLE - throttle

1шт.

G1251

SUPPORT - friction plate, throttle handle and direct drive handle (410B, 411B) See G1077

1шт.

G1305

LEVER - governor control rod (310B, 311B) See G1082

1шт.

G10743

SHAFT - throttle handle

1шт.

7/16" plain washer

1шт.

G10745

SHAFT - cross, governor control

1шт.

1/8" x 1" cotter pin

1шт.

7/16" plain washer

1шт.

G10786

DISC

DISK - cork, friction plate

1шт.

G11203

ROD - governor control (310B, 311B)

1шт.

G16879

ROD - governor control (410B, 411B)

1шт.

G17116

ROD

- governor arm to carburetor (Use G45222 or G45224 when stock is exhausted)

1шт.

1/4" N.F. hex. nut and lockwasher

2шт.

G17132

LINK - connecting, throttle (310B, 311B) See G46209

1шт.

3/32" x 3/4" cotter pin

2шт.

G45128

LINK

BALL AND SOCKET (double), Serial Range: G1079-G1080

1шт.

1/4" N.F. hex. nut and lockwasher

2шт.

G45222

ROD

- governor arm to carburetor (includes G45711) 310B, 311B

1шт.

G45224

GASKET

ROD - governor arm to carburetor (includes G45711) 410B, 411B

1шт.

1/4" N.F. hex. nut and lockwasher

2шт.

G45711

X

BALL AND SOCKET - rod assembly (Part of G45222 and G45224)

1шт.

G45722

JOINT ASSY.

BALL AND SOCKET - G17116, Serial Range: rod-carburetor

1шт.

G46209

LINK - connecting, throttle (310B, 311) See G17132

1шт.

3/32" x 3/4" cotter pin

2шт.

G46214

SPRING

- compression, friction plate

1шт.

G47037

SPRING

- governor speed control (310B, 311B) See VT3066

1шт.

VT403

GUIDE - governor control rod

1шт.

5/16" x 1" N.C. hex. nut and lockwasher

2шт.

VT540

GEAR - camshaft (48T) See VTA857

1шт.

VT2434

X

SPRING - control rod lever

1шт.

3/34" x 3/4" cotter pin

1шт.

VT3066

X

SPRING - governor speed control (410B, 411B) See G47037

1шт.

VT3259

X

DUST SEAL - governor shaft

1шт.

VT3288

X

SPACER - thrust, governor shaft

1шт.

VT3351

X

BEARING - governor shaft (Torrington #B610)

1шт.

VT5113

X

SPRING - hand throttle shaft lever

1шт.

VTA850

X

LEVER AND ARM - governor

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY

1шт.

VTA856

WEIGHT ASSEMBLY - governor

1шт.

3/16" x 1/2" rd. hd. rivet

4шт.

VTA857

X

GEAR - camshaft (includes VTA856 weight) See VT540

1шт.

V20301

LOCK WASHER

NUT - adjusting, governor rod (3/8" N.F.)

2шт.

B138-57

ROLL PIN - VTA850 lever and arm assembly (1/8" x 3/4")

1шт.

B138-75

ROLL PIN (5/32" x 7/8")

5шт.

B138-82

ROLL PIN - G1085 handle (5/32" x 1-5/8")

1шт.

B138-92

ROLL PIN - pivot, G1080 and G1081 levers (3/16" x 3/4")

1шт.

B138-130

ROLL PIN - friction plate support (1/4" x 3/4")

2шт.

G2133

GUIDE

- governor control rod, double spring

1шт.

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G11369

ROD - governor control, double spring

1шт.

G48510

X

SPRING - inner, governor speed control (410B, 411B), double

1шт.

G48511

SPRING

- outer, governor speed control (410B, 411B), double

1шт.

G48514

SPRING

- inner, governor speed control (310B, 311B), double

1шт.

G48515

SPRING

- outer, governor speed control (310B, 311B), double

1шт.

G131-412

NUT - lock, governor control rod (7/16" N.F. Pal nut), double spring

2шт.

B138-51

ROLL PIN - spring anchor (1/8" x 3/8"), double governor control

1шт.
