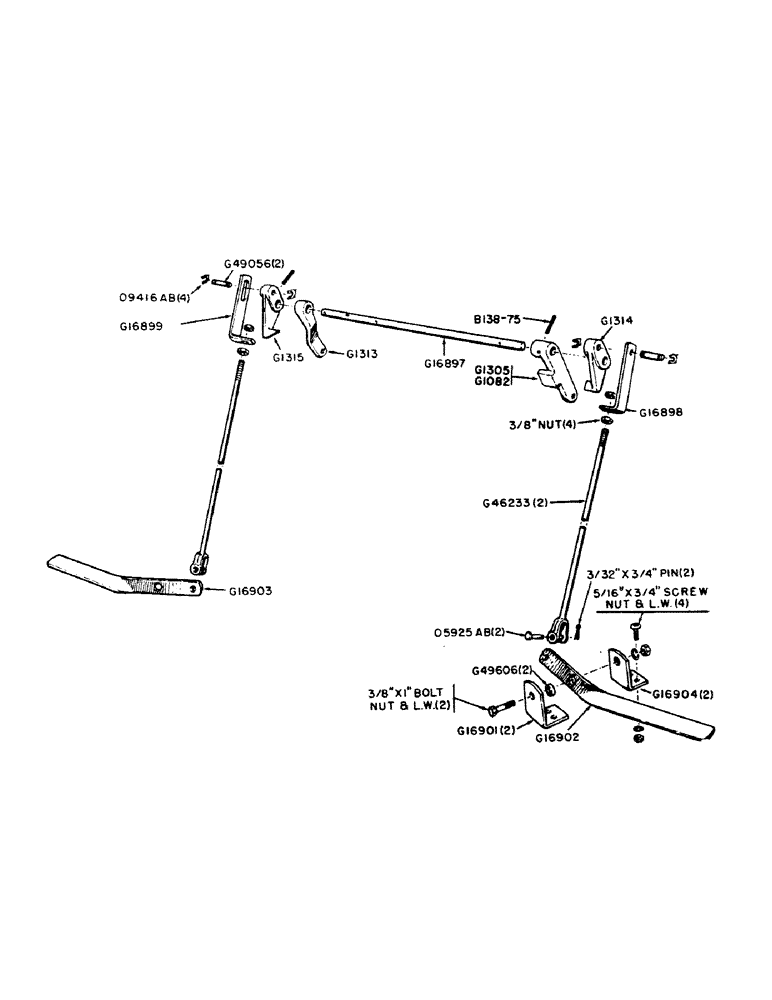

Запчасти Case IH 300B-SERIES (027B) - SPARK IGNITION ENGINES, R.H. AND L.H. FOOT THROTTLE TRACTOR NO.6120001 AND AFTER (02) - ENGINE

B138-75

ROLL PIN (5/32" x 7/8")

2шт.

G1082

LEVER

- governor control rod (310B, 311B)

1шт.

G1305

LEVER - governor control rod (410B, 411B)

1шт.

G1313

LEVER - actuating, throttle cross shaft (Replaces G1080)

1шт.

G1314

LEVER - R.H., cross shaft

1шт.

G1315

LEVER - L.H., cross shaft (Replaces G1081)

1шт.

G16897

SHAFT - cross, governor control

1шт.

G16898

LINK - connecting, yoke to R.H. lever

1шт.

G16899

LINK - connecting, yoke to L.H. lever

1шт.

G16901

BRACKET - lower pivot, foot pedal

2шт.

G16902

PEDAL - foot throttle, R.H.

1шт.

3/8" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G16903

PEDAL - foot throttle, L.H.

1шт.

3/8" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G16904

BRACKET - upper pivot, foot pedal

2шт.

5/16" x 3/4" truss hd. mach. screw w/hex. nut and lockwasher

4шт.

G46233

YOKE - connecting, foot pedal

2шт.

3/8" N.F. hex. nut

4шт.

G49056

PIN - pivot

2шт.

G49606

BUSHING - pivot, foot pedal

2шт.

5925AB

PIN - yoke

2шт.

3/32" x 3/4" cotter pin

2шт.

9416AB

RING - retaining, pivot pin

4шт.
