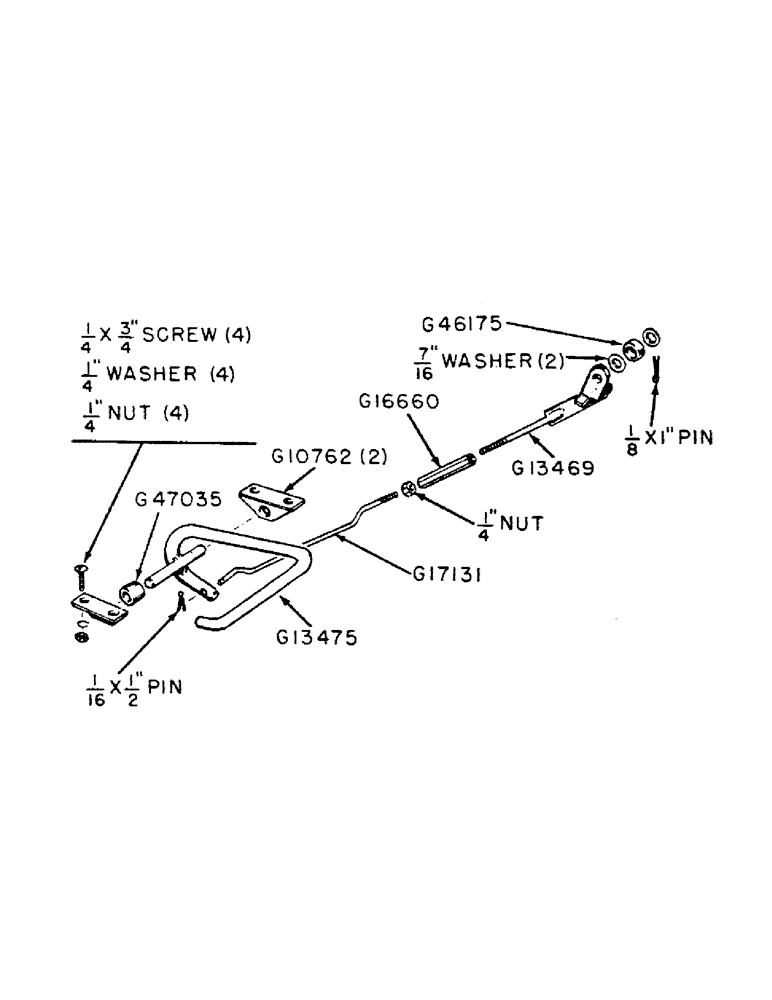

Запчасти Case IH 300B-SERIES (027A) - SPARK IGNITION ENGINES, FOOT THROTTLE BEFORE TRACTOR NO. 6120001 (02) - ENGINE

G10762

BRACKET - pivot, foot throttle pedal

2шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

G13469

BELLCRANK - foot throttle rod to governor control rod lever

1шт.

1/8" x 1" cotter pin

1шт.

7/16" plain washer

2шт.

G13475

PEDAL - foot throttle

1шт.

G16660

TURNBUCKLE - actuating, Serial Range: rod-bellcrank

1шт.

G17131

ROD - actuating, foot, Serial Range: throttle-bellcrank

1шт.

1/16" x 1/2" cotter pin

1шт.

1/4" NC hex. jam nut

1шт.

G46175

SPACER - bellcrank to cross shaft

1шт.

G47035

SPACER - pedal to pivot bracket

1шт.
