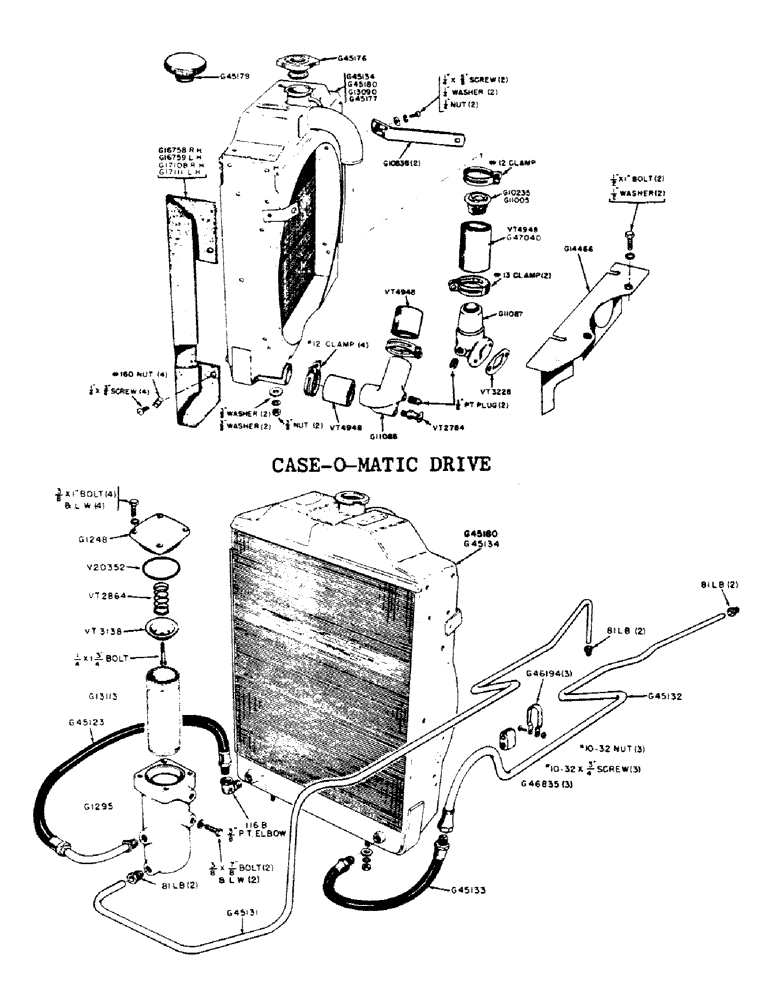

Запчасти Case IH 300B-SERIES (022) - SPARK IGNITION ENGINES, RADIATOR AND CONNECTIONS, OIL FILTER AND COOLING TUBES, CASE-O-MATIC DRIVE (02) - ENGINE

G1153

ELBOW (Use G11087)

1шт.

G1154

ELBOW (Use G11088)

1шт.

G10235

THERMOSTAT

(148deg. to 153deg. F) gasoline and L.P.G.

1шт.

G10838

BRACE - radiator

2шт.

1/4" x 5/8" rd. hd. mach. screw

2шт.

G11005

CASE

THERMOSTAT (177deg. to 182deg. F) low cost fuel

1шт.

G11087

ELBOW - water outlet (Includes 3/8" pipe plug)

1шт.

G11088

ELBOW - water inlet (Includes 3/8" pipe plug)

1шт.

G13090

RADIATOR (less cap) 300B Series (Before tractor #612001) See G45177

1шт.

3/8" N.C hex. nut and lockwasher

2шт.

G14466

BRACKET - mounting, Serial Range: radiator-housing

1шт.

G16758

BAFFLE - R.H. circulation (300B Series)

1шт.

1/4" x 3/4" rd. hd. mach. screw w/#160 speed nut

2шт.

G16759

BAFFLE - L.H. circulation (300B Series)

1шт.

1/4" x 3/4" rd. hd. mach. screw w/#160 speed nut

2шт.

G17108

BAFFLE - R.H. circulation (400B Series)

1шт.

1/4" x 3/4" rd. hd. mach. screw w/#160 speed nut

2шт.

G17111

BAFFLE - L.H. circulation (400B Series)

1шт.

1/4" x 3/4" rd.hd. mach. screw w/#160 speed nut

2шт.

G45134

RADIATOR (less cap) 400B Series (Before tractor #6120001) See G45180

1шт.

G45176

CAP

- radiator (Before tractor #6120001) See G45179

1шт.

G45177

RADIATOR (less cap) 300B Series (Tractor #6120001 and after) See G13090

1шт.

G45179

CAP

- radiator (Tractor #6120001 and after) See G45176

1шт.

G45180

RADIATOR (less cap) 400B Series (Tractor #6120001 and after) See G45134

1шт.

G47040

RADIATOR HOSE,1.75" ID x 3.88"

Upper, Elbow 1.75" ID x 3.88"

1шт.

#12 hose clamp

1шт.

#13 hose clamp

2шт.

VT137

ELBOW (Use G11087)

1шт.

VT526

ELBOW (Use G11088)

1шт.

VT2784

X

DRAIN COCK - lower elbow

1шт.

VT3228

X

GASKET - outlet elbow

1шт.

VT4948

X

HOSE - lower elbow (1-3/4" I.D. x 2" long)

1шт.

#12 hose clamp

2шт.

VT4948

X

HOSE - upper elbow (1-3/4" I.D. x 2") 300B Series

1шт.

#12 hose clamp

1шт.

#13 hose clamp

2шт.

G1248

COVER

CAP - cover, oil filter & cooling tubes (case-o-matic drive)

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

4шт.

G1295

HOUSING

- oil filter & cooling tubes (case-o-matic drive)

1шт.

3/8" x 7/8" NC hex. hd. bolt w/lockwasher

2шт.

G10234

X

CAP - radiator (4 lb. pressure type), oil filter & cooling tubes (case-o-matic drive)

1шт.

G13113

ELEMENT,2.25" OD x 6" L

ELEMENT - oil filter & cooling tubes (case-o-matic drive)

1шт.

G45121

HOUSING

HOSE - oil cooler, filter to radiator, oil filter (case-o-matic drive)

1шт.

116B - 3/8" PT 90deg. street elbow

1шт.

G45131

TUBE - oil cooler, torque tube to radiator,filter (case-o-matic drive) 0.5" OD x 24.5, 14.062" L

1шт.

81LB - 1/2" OD tube nut

2шт.

G45132

TUBE - oil cooler, return hose to control valve tee, filter & tubes (case-o-matic drive)

1шт.

81LB - 1/2" OD tube nut

1шт.

G45133

HYDRAULIC HOSE,0.50" ID x 16.00"

HOSE - oil cooler return, radiator to tube, filter & tubes (case-o-matic drive)

1шт.

G45134

RADIATOR (less cap) (Before tractor #6120001) See G45180, oil filter & cooling tubes (case-o-matic drive)

1шт.

3/8" NC hex. nut, lockwasher and plain washer

2шт.

G45180

RADIATOR (less cap) (Tractor #6120001 and after) See G45134, oil filter & cooling tubes (case-o-matic drive)

1шт.

G46194

CLAMP

- oil cooler tube grommet, filter & g tubes (case-o-matic drive)

3шт.

#10-32 x 1/2" rd. hd. mach. screw (Philips recessed)

3шт.

#10-32 Keps nut

3шт.

G46835

GROMMET

- rubber, oil filter & cooling tubes (case-o-matic drive)

3шт.

V20352

SCREW

"O" RING - cover cap, oil filter & cooling tubes (case-o-matic drive)

1шт.

VT2864

SPRING

- retainer, oil filter element, cooling tubes (case-o-matic drive)

1шт.

VT3138

X

CAP - retainer, oil filter element, cooling tubes (case-o-matic drive)

1шт.

1/4" x 1-3/4" NC hex. hd. bolt

1шт.

A43644

KIT

repair, oil filter & cooling tubes (case-o-matic drive)

1шт.
