(021) - SPARK IGNITION ENGINES, RADIATOR SHUTTER

Запчасти Case IH 300B-SERIES (021) - SPARK IGNITION ENGINES, RADIATOR SHUTTER (02) - ENGINE

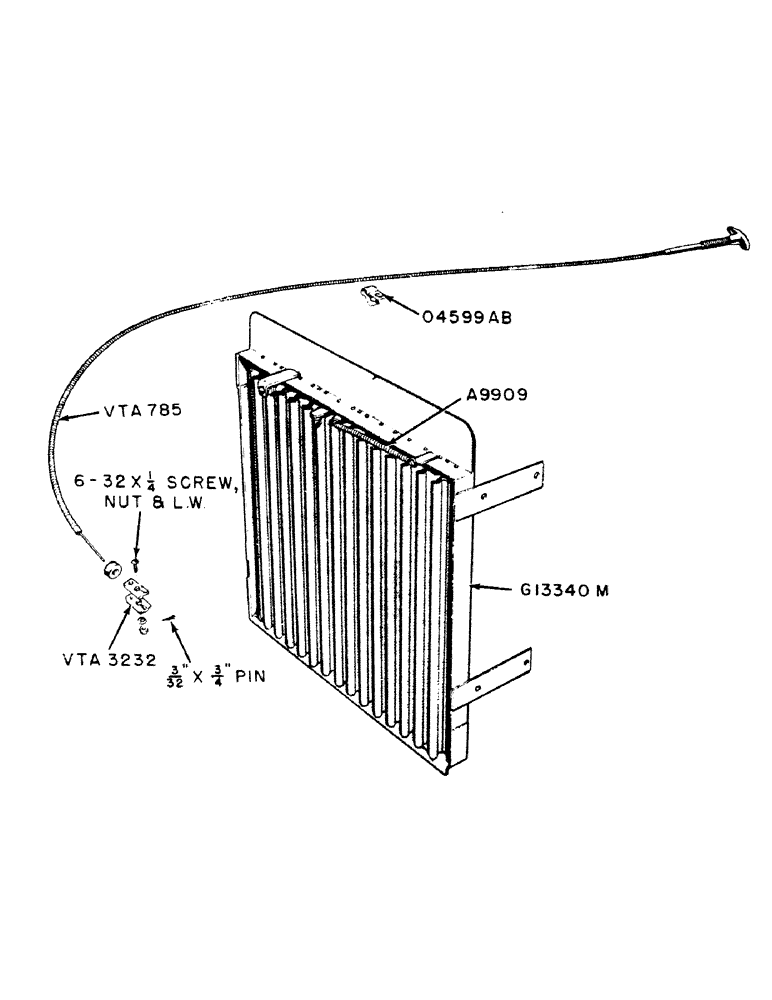

Схема запчастей Case IH 300B-SERIES - (021) - SPARK IGNITION ENGINES, RADIATOR SHUTTER (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9909

SPRING - tension, radiator shutter

1шт.

G13340M

SHUTTER ASSEMBLY, includes control (Mchy. Item)

1шт.

4599AB

CLIP - control, Serial Range: cable-manifold

1шт.

VTA785

CABLE - shutter control

1шт.

3/32" x 3/4" cotter pin

1шт.

VTA3232

LINK - connecting, control rod to shutter (includes links and #6-32 x 1/4" hex. hd. cap screw w/hex. nut and shakeproof lockwasher)

1шт.
