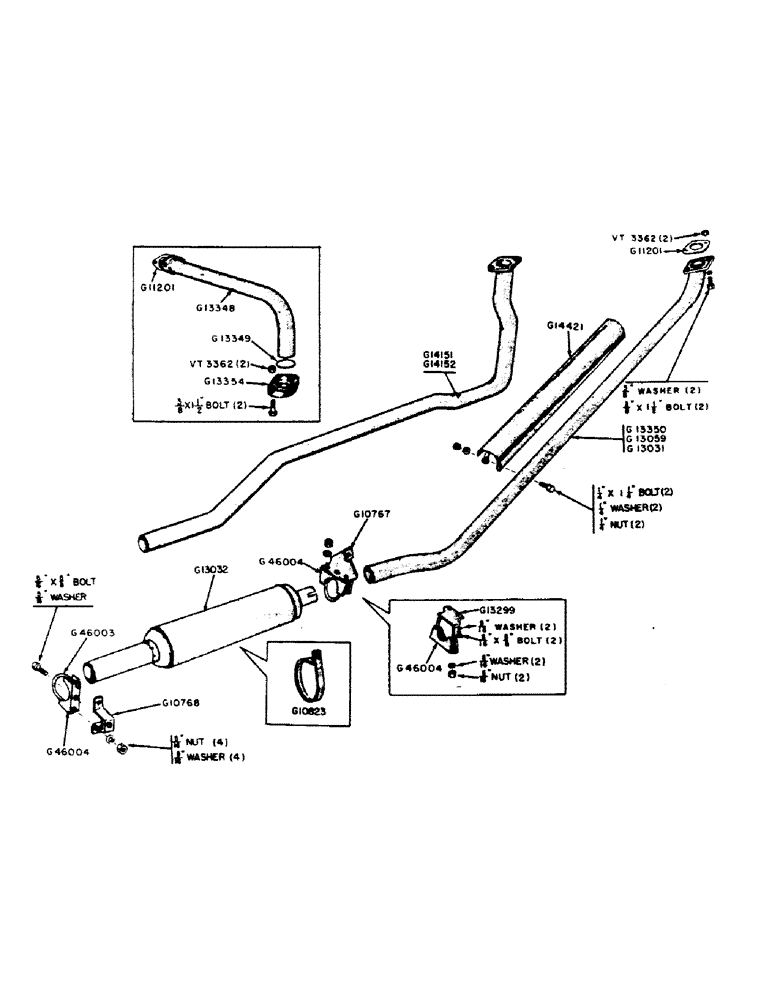

Запчасти Case IH 300B-SERIES (020) - SPARK IGNITION ENGINES, UNDERNEATH MUFFLER AND EXHAUST (02) - ENGINE

G10767

BRACKET

- front, muffler mounting (311B Gen. Purpose Spark Ignition)

1шт.

G10768

BRACKET

- rear, muffler (311B Gen. Purpose)

1шт.

G10823

BRACKET - rear, muffler mounting (300B, 310B Utility)

1шт.

5/16" x 5/8" hex. hd. bolt, NC w/lockwasher

1шт.

G11201

GASKET

- pipe to exhaust manifold

2шт.

G13031

PIPE

- exhaust w/flange (311B Gen. Purpose Spark Ignition)

1шт.

3/8" x 1-1/2" hex. hd. bold, NC

2шт.

G13032

MUFFLER

- underneath type

1шт.

G13059

PIPE - exhaust, w/flange (310B Utility Spark Ignition)

1шт.

3/8" x 1-1/2" hex. hd. bolt, NC

2шт.

G13299

BRACKET - muffler mounting, w/"U" bolt (300B, 310B Utility)

1шт.

5/16" x 5/8" hex. hd. bolt, NC w/lockwasher

2шт.

G13348

PIPE - exhaust, crossover, (300B Diesel Utility)

1шт.

G13349

GASKET - crossover pipe to flange (300B Diesel Utility)

1шт.

G13350

PIPE - exhaust, w/flange (300B Diesel Utility)

1шт.

3/8" x 1-1/2" hex. hd. bolt, NC

2шт.

G13354

FLANGE - sealing, crossover pipe to exhaust pipe (300B Diesel Utility)

1шт.

G14151

PIPE - exhaust, w/flange (411B Gen. Purpose)

1шт.

G14152

PIPE - exhaust, w/flange (410B Utility)

1шт.

G14421

SHIELD - exhaust pipe

1шт.

1/4" x 1-1/4" carr. bolt w/hex. nut and lockwasher

2шт.

G46003

U-BOLT

"U" BOLT - muffler clamp (311B Gen. Purpose Spark Ignition)

2шт.

5/16" hex. nut, NC w/lockwasher

4шт.

G46004

CLAMP

- muffler (1 for 300B, 310B Utility)

2шт.

VT3362

X

NUT - brass, exhaust pipe bolts

2шт.
