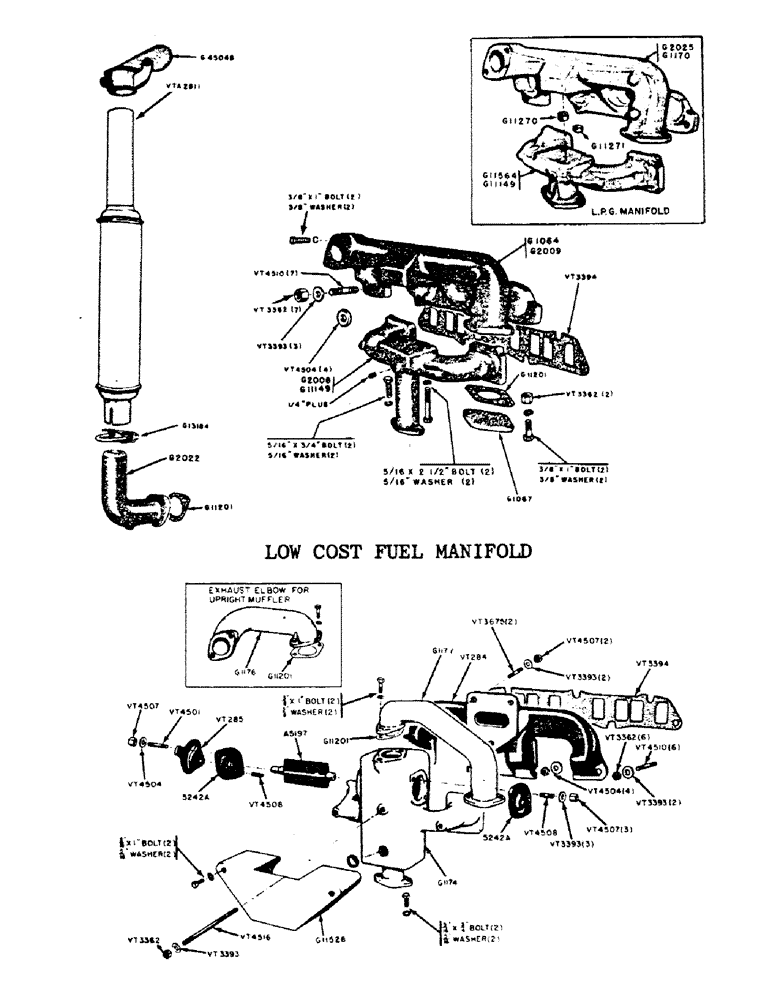

Запчасти Case IH 300B-SERIES (018) - SPARK IGNITION ENGINES, GASOLINE MANIFOLD AND UPRIGHT, LOW COST FUEL MANIFOLD (02) - ENGINE

G1064

MANIFOLD

- exhaust (300B Series)

1шт.

G1066

X

MANIFOLD - intake (Use G11149)

1шт.

G1067

COVER - exhaust manifold opening

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G2008

MANIFOLD - intake (400B Series)

1шт.

5/16" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

G2009

MANIFOLD

- exhaust (400B Series)

1шт.

G2022

ELBOW

- exhaust, upright muffler

1шт.

G2022 : The print on this part shows it to look more like a drain pipe underneath a kitchen sink. In other words, it dips down and back up, like a gooseneck.

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G11149

MANIFOLD

- intake (inculdes 1/4" pipe plug) 300B Series

1шт.

3/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G11201

GASKET

- elbow and opening cover

2шт.

G13184

CLAMP

- muffler

1шт.

G45048

CAP

- weather, muffler

1шт.

VT3362

X

NUT - brass, exhaust manifold and cover

9шт.

VT3393

X

WASHER - plain (3/4" O.D. x 13/32" I.D. x 1/16")

3шт.

VT3394

X

GASKET - manifold, exhaust and intake

1шт.

VT4504

WASHER

- plain (7/8" O.D. x 13/32" I.D. x 1/8")

4шт.

VT4510

X

STUD - manifold to cylinder head (3/8" x 1-3/4")

7шт.

VTA2811

X

MUFFLER - upright

1шт.

G1170

MANIFOLD - exhaust (300B Series), L.P.G. eng

1шт.

G1178

X

MANIFOLD - intake (Use G11149), L.P.G. eng

1шт.

G2024

MANIFOLD - intake (Use G11564), L.P.G. eng

1шт.

G2025

MANIFOLD - exhaust (400B Series), L.P.G. eng

1шт.

G11149

MANIFOLD

- intake (includes 1/4" pipe plug) 300B Series, L.P.G. eng

1шт.

3/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G11270

SPACER

- inner, intake manifold to exhaust manifold, L.P.G. eng

1шт.

G11271

SPACER

- outer, intake manifold to exhaust manifold, L.P.G. eng

1шт.

G11564

MANIFOLD - intake (includes 1/8" pipe plug) (400B Series), L.P.G. eng

1шт.

5/16" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

A5197

VALVE - heat control, low cost fuel manifold

1шт.

G1174

MANIFOLD - intake, low cost fuel

1шт.

5/16" x 3/4" bolt, hex. head UNC w/lockwasher

2шт.

G1176

ELBOW - exhaust (upright muffler), low cost fuel manifold

1шт.

G1177

ELBOW - exhaust (underneath muffler), low cost fuel manifold

1шт.

3/8" x 1" hex. head bolt NC w/lockwasher

2шт.

G11201

GASKET

- exhaust elbow to manifold, low cost fuel

1шт.

G11528

HEAT BOX ASSEMBLY, low cost fuel manifold

1шт.

5/16" x 1" bolt hexagon head UNC w/lockwasher

2шт.

G13184

CLAMP

- muffler, low cost fuel manifold

1шт.

5242A

FLANGE - heat control, low cost fuel manifold

2шт.

VT284

MANIFOLD - exhaust, low cost fuel

1шт.

3/8" x 1" bolt hex. UNC w/lockwasher

2шт.

VT285

LEVER - heat control valve, low cost fuel manifold

1шт.

VT3362

X

NUT - hexagon (brass) 3/8" - 16, low cost fuel manifold

7шт.

VT3393

X

WASHER - 3/4" OD x 13/32" ID x 1/16", low cost fuel manifold

8шт.

VT3394

X

GASKET - manifold, low cost fuel

1шт.

VT3399

PLUG - hubbard (1" diameter), low cost fuel manifold

2шт.

VT3675

X

STUD - 3/8" x 1-1/2", low cost fuel manifold

2шт.

VT4501

STUD - 3/8" x 1-11/16", low cost fuel manifold

1шт.

VT4504

WASHER

- 7/8" OD x 13/32" ID x 1/8", low cost fuel manifold

5шт.

VT4507

NUT - hexagon (brass), low cost fuel manifold

6шт.

VT4508

STUD - 3/8" - 16 x 1-1/4", low cost fuel manifold

3шт.

VT4510

X

STUD - manifold 3/8" x 1-1/4", low cost fuel

6шт.

VT4516

X

STUD - 3/8" - 16 x 6-3/8", low cost fuel manifold

1шт.

VTA2811

X

MUFFLER - exhaust, low cost fuel manifold

1шт.
