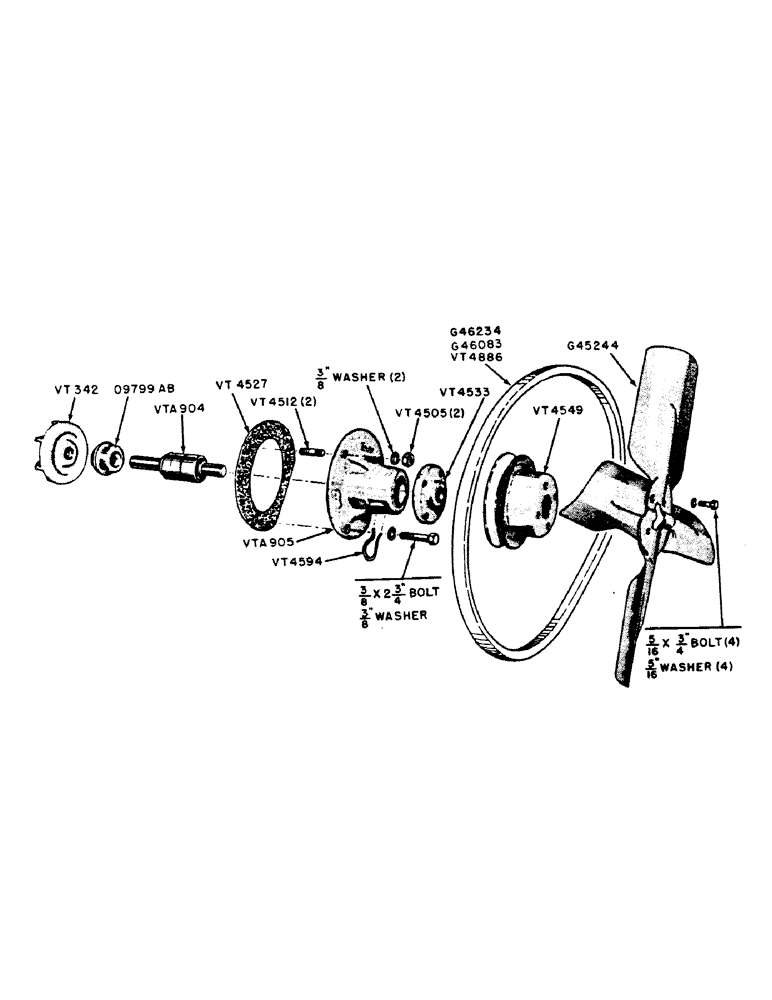

Запчасти Case IH 300B-SERIES (017) - SPARK IGNITION ENGINES, WATER PUMP AND FAN (02) - ENGINE

G45244

FAN

FAN

1шт.

.

5/16" x 3/4" hex. hd. bolt, NC w/lockwasher

4шт.

G46083

V-BELT,0.42" W x 7.50" L

Fan, Generator and Power Steering Pump Drive

1шт.

G46234

V-BELT,0.78" W

Fan and Generator Drive, R.H. Mounted

1шт.

VT341

SPARE PART BODY (Use VTA905)

1шт.

VT342

SPARE PART IMPELLER - water pump

1шт.

9799AB

SEAL ASSEMBLY

1шт.

VT4505

SPARE PART NUT - mounting stud

2шт.

VT4512

X

STUD - mounting, water pump body

2шт.

.

3/8" lockwasher, Shakeproof, IT

2шт.

VT4527

X

GASKET - pump, Serial Range: body-head

1шт.

VT4533

SPARE PART HUB - fan

1шт.

VT4549

X

PULLEY - water pump

1шт.

VT4594

X

RING - retainer

1шт.

VT4886

X

"V" BELT - fan and generator drive (L.H. mounted generator)

1шт.

VTA904

X

SHAFT - drive, includes bearing and slinger

1шт.

VTA905

X

BODY AND SEAL ASSEMBLY

1шт.

.

3/8" x 2-3/4" hex. hd. bolt, NC w/IT Shakeproof lockwasher

1шт.

VTA908

X

WATER PUMP COMPLETE, includes gasket

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.
