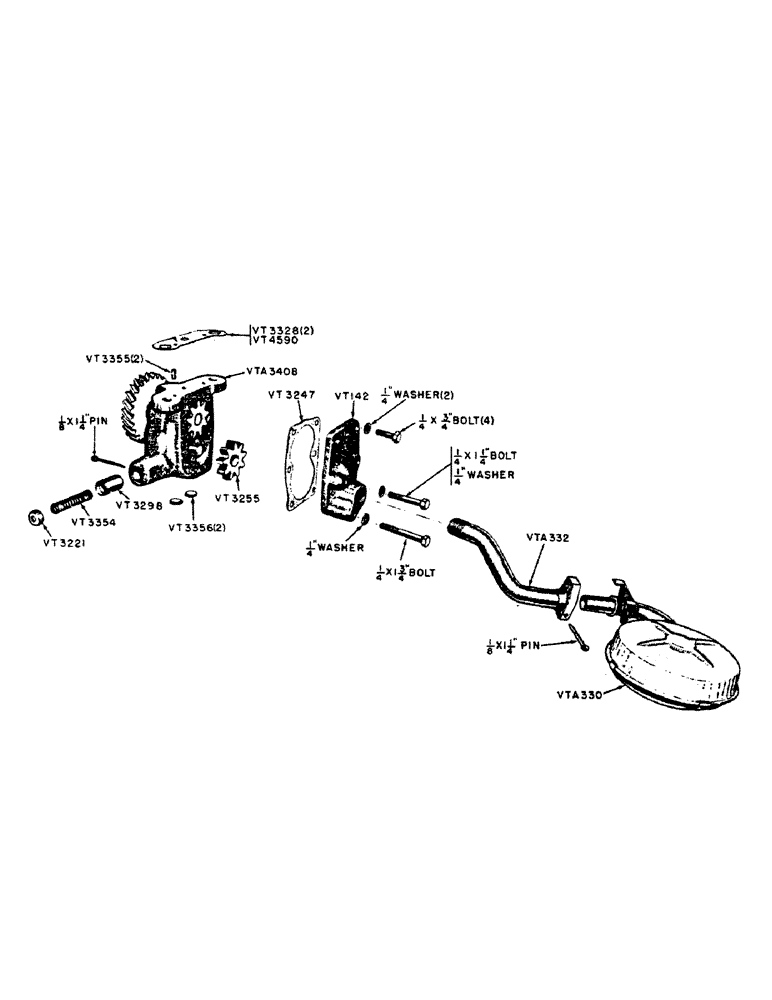

Запчасти Case IH 300B-SERIES (016) - SPARK IGNITION ENGINES, ENGINE OIL PUMP (02) - ENGINE

VT142

X

COVER - oil pump body

1шт.

1/4" x 3/4" bolt, hex. head UNC

4шт.

1/4" x 1-1/4" bolt, hex. head UNC w/lockwasher

1шт.

1/4" x 1-3/4" bolt, hex. head UNC w/lockwasher

1шт.

1/4" washer, lock

4шт.

1/4" washer, shakeproof, I.T.

2шт.

VT158

X

BODY - oil pump (Use VTA3408)

1шт.

VT3221

X

RETAINER - relief spring

1шт.

VT3247

X

GASKET - oil pump body cover

1шт.

VT3255

X

GEAR - driven, oil pump (9 tooth)

1шт.

VT3298

X

VALVE - relief, oil pressure

1шт.

VT3328

X

SHIM - (.002") pump body to main bearing cap

2шт.

VT3354

X

SPRING - oil pressure relief

1шт.

VT3355

PIN - dowel, front main bearing cap

2шт.

VT3356

PLUG - Hubbard (1/2" dia)

2шт.

VT4590

X

SHIM - (.005") pump body to main bearing cap

1шт.

VTA330

SCREEN - oil intake (float assembly)

1шт.

VTA332

PIPE - suction assembly

1шт.

1/8" x 1-1/4" pin, cotter

1шт.

VTA3408

X

OIL PUMP BODY - drive shaft assembly and shims

1шт.

1/8" x 1-1/4" pin, cotter

1шт.

A30489

BODY

OIL PUMP ASSY.

1шт.

Should have a step machined on the port of the body where relief valve below is assembled. No step means it is incorrect, return incorrect stock.

1шт.

A155144

VALVE, PRESSURE RELI

1шт.
