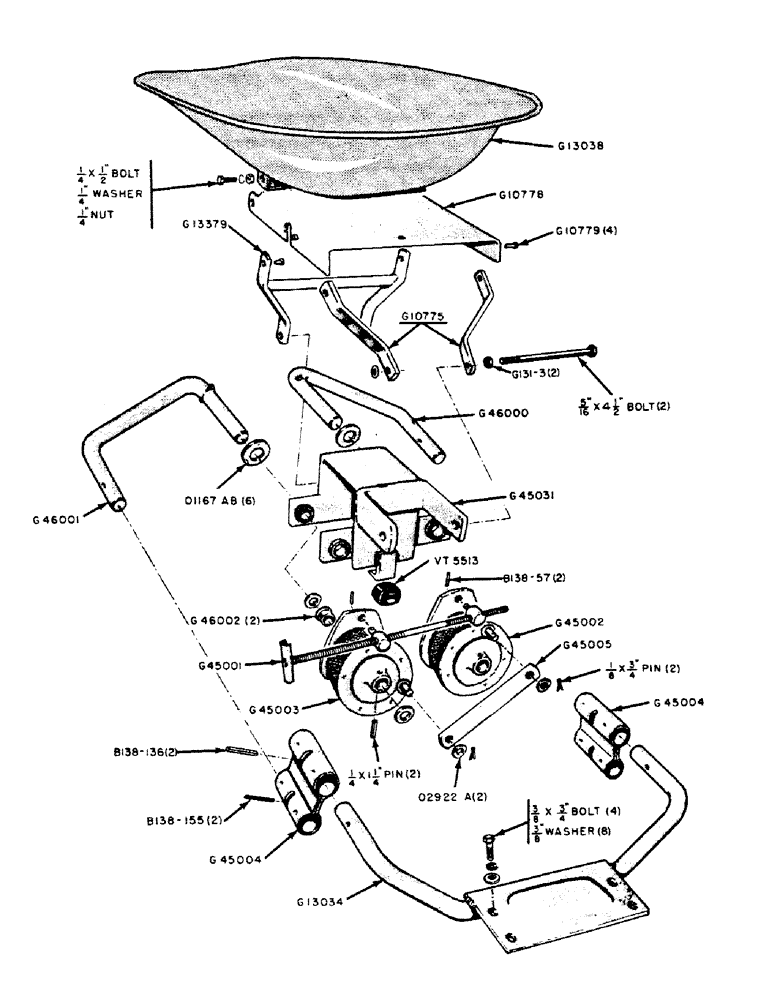

Запчасти Case IH 300B-SERIES (186) - EASY RIDE SEAT (09) - CHASSIS

G10775

ARM

- rear pivot, mounting channel

2шт.

5/16" x 4-1/2" N.F. hex. hd. bolt w/plain washer

1шт.

G10778

CHANNEL

- seat mounting

1шт.

1/4" x 1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G10779

RIVET

- pivot arm, seat mounting channel

4шт.

G13034

SUPPORT - seat

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher and plain washer

4шт.

G13038

SEAT (Includes guide and lock assembly)

1шт.

G13379

ARM - front pivot, seat mounting channel

1шт.

5/16" x 4-1/2" N.F. hex. hd. bolt w/plain washer

1шт.

G45001

STUD

- adjusting

1шт.

G45002

SPRING SEAT

RUBBER SPRING ASSEMBLY, R.H.

1шт.

1/4" x 1-1/4" groove pin - Type A

1шт.

G45003

SPRING SEAT

RUBBER SPRING ASSEMBLY, L.H.

1шт.

1/4" x 1-1/4" groove pin - Type A

1шт.

G45004

LEVER

- short suspension

2шт.

G45005

LINK - stabilizing

1шт.

1/8" x 3/4" cotter pin

2шт.

G45031

BRACKET - support assembly

1шт.

G46000

SHAFT - spring, R.H.

1шт.

G46001

SHAFT - spring, L.H.

1шт.

G46002

FLANGED BEARING

BEARING - flange

2шт.

2922A

WASHER - stabilizing link (1" O.D. x 17/32" I.D. #14 ga.)

4шт.

1167AB

WASHER - spring shafts (1-1/4" O.D. x 49/64" I.D. #14 ga.)

6шт.

VT5017

X

CUSHION - seat (Mchy. Item)

1шт.

VT5513

X

BUMPER - rubber

1шт.

G131-3

NUT - lock, pivot bolt

2шт.

B138-57

ROLL PIN - adjuster stud (1/8" x 3/4")

2шт.

B138-115

ROLL PIN - G13034 support (5/16" x 1-1/4")

2шт.

B138-136

ROLL PIN - spring shaft (1/4" x 1-1/4")

2шт.
