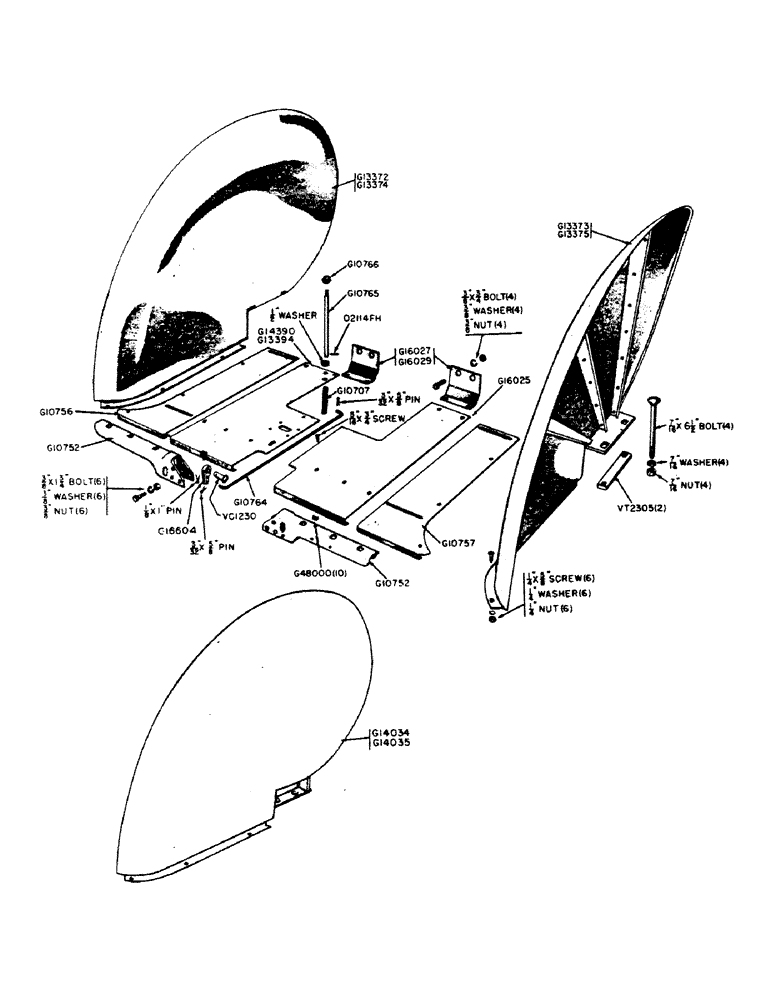

Запчасти Case IH 300B-SERIES (184) - STEP PLATES AND FENDERS (09) - CHASSIS

G10707

VALVE SPRING

SPRING - brake release lever

1шт.

G10752

SUPPORT - front, step plate

2шт.

3/8" x 1-3/4" hex. hd. bolt, NC w/hex. nut and lockwasher

6шт.

G10756

EXTENSION

- RH step plate

1шт.

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

G10757

EXTENSION - LH step plate

1шт.

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

G10764

DRAG LINK

LINK - connecting, Serial Range: lever-pedal

1шт.

3/32" x 5/8" cotter pin

2шт.

G10765

LEVER

- hand, brake release

1шт.

1/2" plain washer

1шт.

G10766

KNOB

- lever

1шт.

G13372

FENDER - RH (Gen. Purpose)

1шт.

G13373

FENDER - LH (Gen. Purpose)

1шт.

G13374

FENDER - RH (Utility)

1шт.

G13375

FENDER - LH (Utility)

1шт.

G13394

PLATE - step, RH inside (Before tractor #6120001)

1шт.

5/16" x 3/4" truss hd. mach. screw (Philips recessed)

5шт.

G14034

FENDER - RH (312B)

1шт.

G14035

FENDER - LH (312B)

1шт.

G14390

PLATE - step, RH inside (Tractor #6120001 and after)

1шт.

G16025

PLATE - step, LH inside

1шт.

5/16" x 3/4" truss. hd. mach. screw (Philips recessed)

5шт.

G16027

SUPPORT

- rear, step plate (Gen. Purpose)

2шт.

3/8" x 3/4" hex. hd. bolt, NC w/lockwasher

4шт.

G16029

SUPPORT - rear, step plate (Utility)

2шт.

5/8" x 7" hex. hd. bolt, NC w/hex. nut and lockwasher

2шт.

G16604

BRAKE LINE

PAWL - brake lock

1шт.

G48000

X

NUT - step plates to support (5/16" cage nut)

10шт.

2114FH

ROLL PIN - lever to step plate

1шт.

VC1230

PIN - pivot, brake pawl

1шт.

1/8" x 1" cotter pin

1шт.

VT2305

CLAMP - fender

2шт.

7/16" x 6-1/2" carr. bolt w/hex. nut and lockwasher

4шт.
