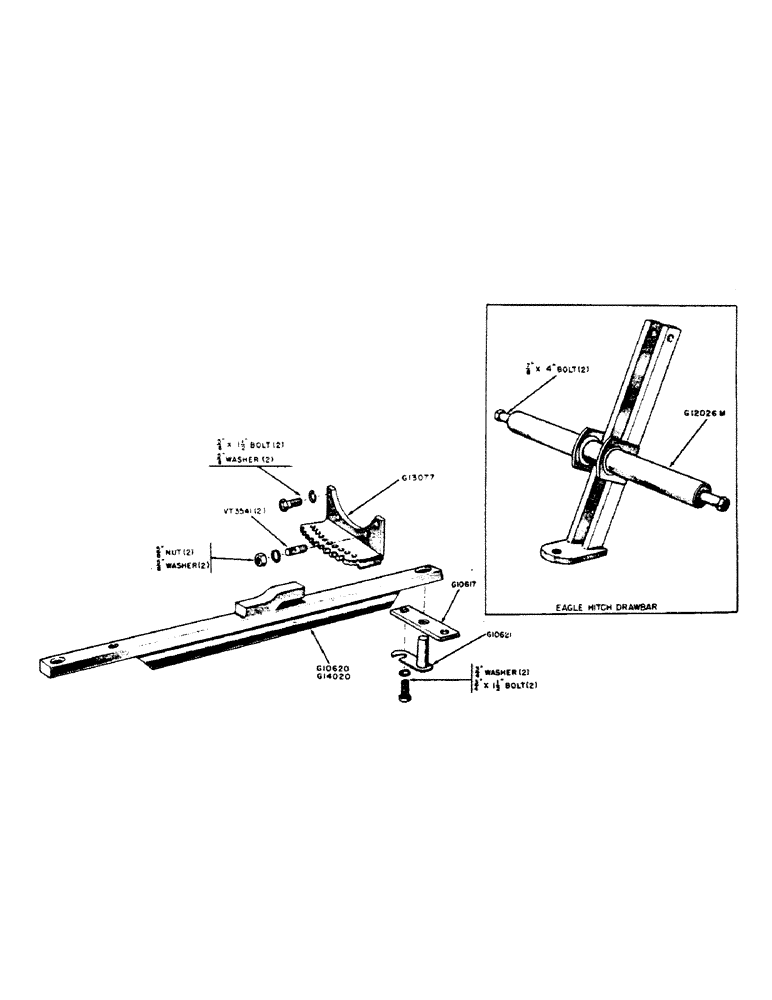

Запчасти Case IH 300B-SERIES (179) - EAGLE HITCH DRAWBAR, SWINGING DRAWBAR (09) - CHASSIS

G12026M

DRAWBAR - Eagle Hitch w/hitch pins, includes 2 - 7/8" x 4" NC hex. hd. bolts (Mchy. Item)

1шт.

G10617

SUPPORT

- pin, swinging drawbar

1шт.

3/4" x 1-1/2" hex. hd. bolt UNC w/lockwasher

2шт.

G10620

DRAWBAR ASSEMBLY (300B Series), swinging

1шт.

G10621

DRAWBAR PIN AND LATCH, swinging

1шт.

G13077

SUPPORT - drawbar, swinging

1шт.

5/8" x 1-1/2" hex. hd. bolt UNC and lockwasher

2шт.

G14020

DRAWBAR ASSEMBLY (400B Series), swinging

1шт.

VT3541

STUD - drawbar support to transmission case (5/8" x 2"), swinging

2шт.

5/8" hex. nut, NF and lockwasher

2шт.
