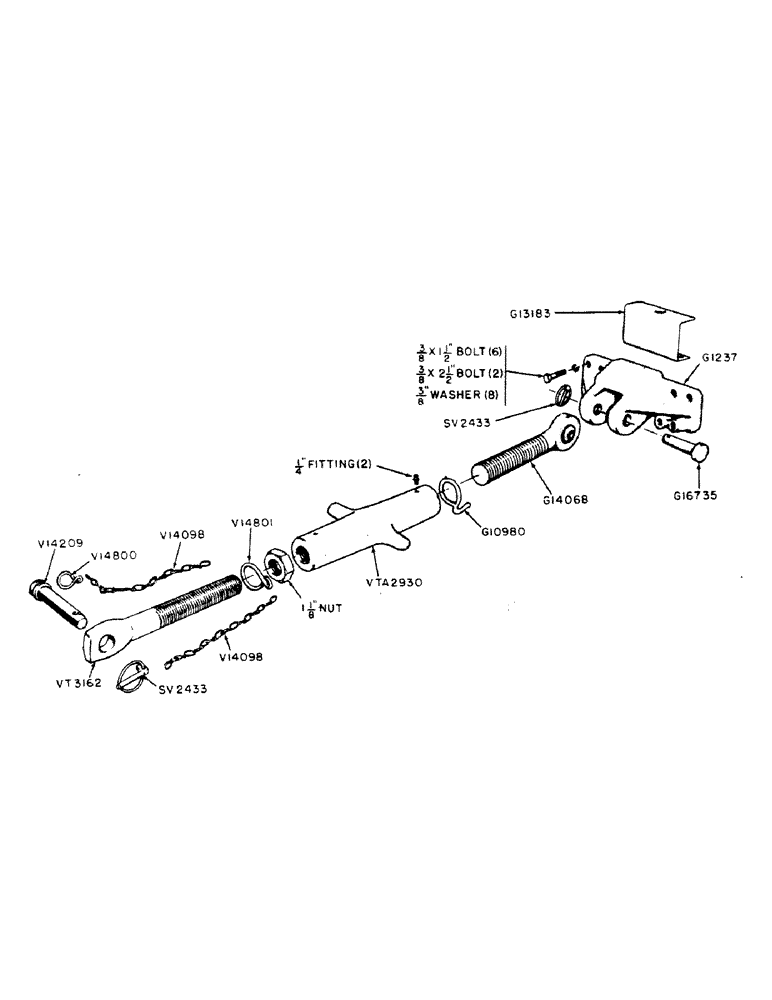

Запчасти Case IH 300B-SERIES (178) - THREE-POINT HITCH TURNBUCKLE (09) - CHASSIS

G1237

BRACKET - mounting, turnbuckle

1шт.

3/8" x 1-1/4" NC hex. hd. bolt w/lockwasher

6шт.

3/8" x 2-1/2" NC hex. hd. bolt w/lockwasher

2шт.

G10980

HOOK - turnbuckle carrying

1шт.

G13183

BRACKET - tool box and link hook (Utility)

1шт.

G14068

LINK - front adjusting, turnbuckle

1шт.

G16735

PIN

- mast, turnbuckle pivot

1шт.

V14098

CHAIN - rear mast pin

2шт.

V14209

X

PIN - mast, rear eye

1шт.

V14800

"S" HOOK - small

1шт.

V14801

SET OF BELTS

"S" HOOK - large

1шт.

VT600

TURNBUCKLE (Use VTA2930)

1шт.

VT3162

EYE - rear adjusting turnbuckle

1шт.

1-1/8" NC hex. jam nut

1шт.

VTA2930

TURNBUCKLE (includes 2-1/4" str. drive fittings, Lincoln #5029)

1шт.

SV2433

X

RETAINING PIN AND RING ASSEMBLY - mast pin

2шт.
