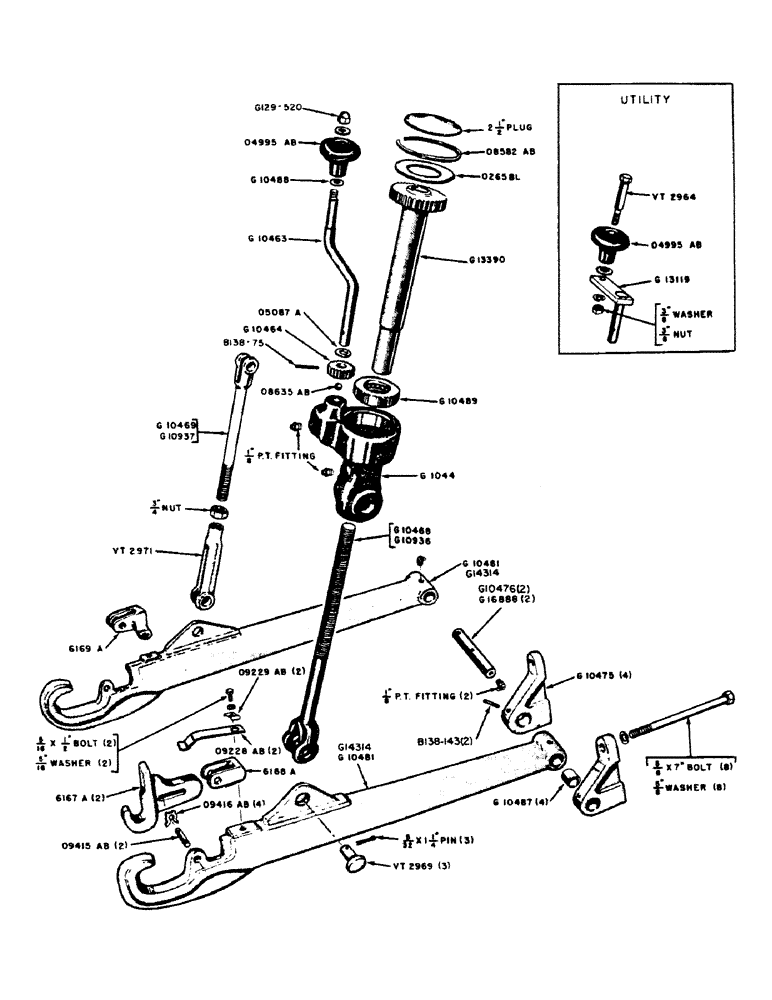

Запчасти Case IH 300B-SERIES (172) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS (09) - CHASSIS

G1044

HOUSING - adjusting screw

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" str. safety vent fitting (Lincoln #5099)

1шт.

2-1/2" Welch plug

1шт.

G10463

CRANK - adjusting screw (Gen. Purpose) See G13119

1шт.

G10464

GEAR - adjusting screw crank (20T)

1шт.

G10468

YOKE

LINK - lift, adjusting screw, RH (Gen. Purpose) See G10936

1шт.

G10469

YOKE

LINK - lift, LH (Gen. Purpose) See G10937

1шт.

G10469 Link, lift LH 12" to center of grease zerk hole

1шт.

3/4" hex. jam nut, NF

1шт.

G10475

BRACKET

- draft arm mounting

4шт.

5/8" x 7" hex. hd. bolt, NC w/lockwasher

8шт.

G10476

PIN

- pivot, draft arm (Before tractor #6102306)

2шт.

G10476 Link , lift RH 15 5/8" to center of grease zerk hole 29-May-96

1шт.

1/8" 67-1/2deg. fitting (Lincoln #5300)

2шт.

G10481

ARM - draft, includes 2 - G10487 bushings (300B Series)

2шт.

1/8" 45deg. fitting (Lincoln #5200)

2шт.

G10487

BUSHING

- draft arm pivot

4шт.

G10488

WASHER - thrust, adjusting crank

1шт.

G10489

THRUST BEARING

BEARING - thrust (Nice #5136)

1шт.

G10936

YOKE

LINK - lift, adjusting screw, RH (Utility) See G10468

1шт.

G10937

X

LINK - lift, LH (Utility) See G10469

1шт.

G13119

CRANK - adjusting screw (Utility) See G10463

1шт.

G13390

TUBE

GEAR - adjusting screw, w/tube

1шт.

G14314

ARM - draft, includes 2 - G10487 bushings (400B Series)

2шт.

G16888

PIN

- pivot, draft arm (Tractor #6102306 and after)

2шт.

6167A

X

LATCH - Eagle Hitch

2шт.

6168A

X

LOCK - Eagle Hitch latch, RH

1шт.

6169A

X

LOCK - Eagle Hitch latch, LH

1шт.

5087A

SHIM - thrust, crank gear

1шт.

4995AB

KNOB - hand spinner, adjusting crank

1шт.

8582AB

SNAP RING - upper housing

1шт.

8635AB

BALL - crank bearing

1шт.

9228AB

SPRING - latch, Eagle Hitch

2шт.

9229AB

RETAINER - latch spring

2шт.

5/16" x 1/2" hex. hd. bolt, NC w/lockwasher

2шт.

9415AB

PIN - latch, draft arm

2шт.

9416AB

SNAP RING - retainer, latch pin

4шт.

265BL

WASHER - adjusting screw gear (2-1/2" OD x 1-15/16" ID #14 ga.)

1шт.

VT2964

BOLT - spinner knob (Utility)

1шт.

3/8" hex. nut, NC and lockwasher

1шт.

VT2969

X

PIN - yoke, lift link

3шт.

5/32" x 1-1/4" cotter pin

3шт.

VT2971

YOKE - lift link

1шт.

G129-520

NUT - acorn, adjusting screw crank (3/8" N.C.)

1шт.

B138-75

ROLL PIN - crank gear (5/32" x 7/8")

1шт.

B138-143

ROLL PIN - pivot pin retaining (1/4" x 2-1/4")

4шт.
