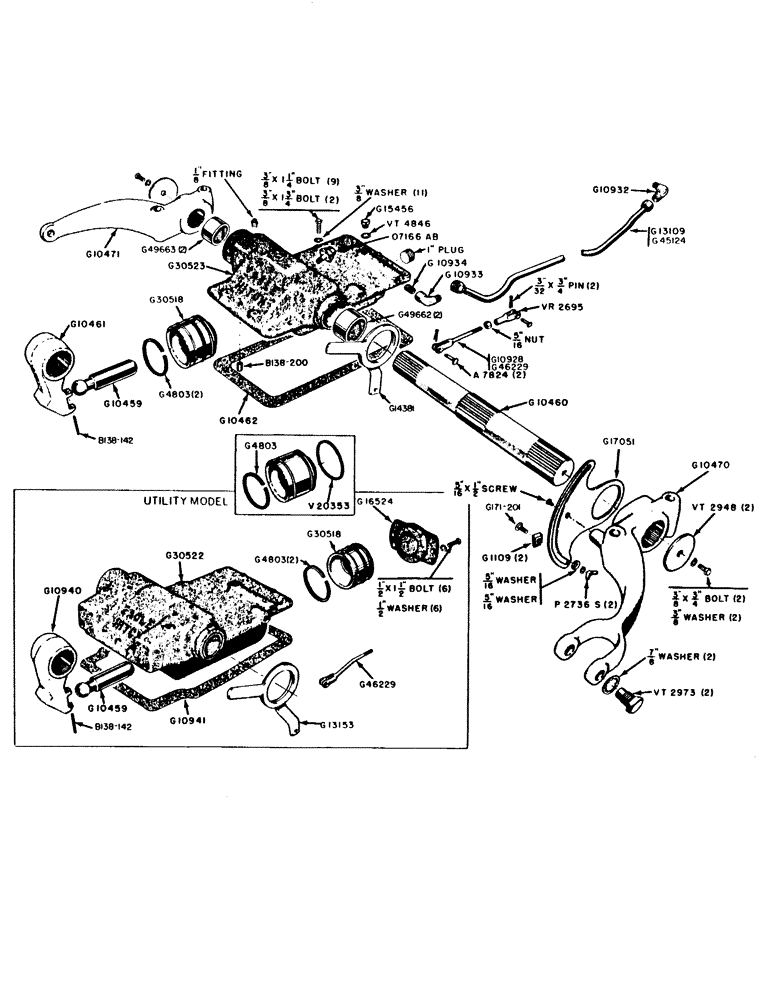

Запчасти Case IH 300B-SERIES (170) - EAGLE HITCH ROCKSHAFT AND HOUSING (09) - CHASSIS

A7824

X

PIN - yoke, control rod

2шт.

3/32" x 3/4" cotter pin

2шт.

G1042

HOUSING - rockshaft (Use G30523)

1шт.

G1043

X

PISTON (Use G30518)

1шт.

G1109

STOP - quadrant lever

2шт.

G1111

HOUSING - rockshaft (Use G30522)

1шт.

G1316

PISTON (Use G30518)

1шт.

G1350

HOUSING - rockshaft (Use G30522)

1шт.

G1351

HOUSING - rockshaft (Use G30523)

1шт.

G1373

PISTON (Use G30518)

1шт.

G1404

PISTON (Use G30518)

1шт.

G4803

RING

- piston, steel

2шт.

G10459

X

ROD - connecting, rockshaft piston

1шт.

G10460

ROCKSHAFT

- Eagle Hitch

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G10461

ARM - rocker, rockshaft piston (Gen. Purpose)

1шт.

G10462

GASKET

- rockshaft housing to transmission case (Gen. Purpose)

1шт.

G10470

ARM - lift, R.H.

1шт.

G10471

ARM - lift, L.H.

1шт.

G10928

YOKE

ROD - control, w/yoke (Gen. Purpose)

1шт.

5/16" N.F. hex. nut

1шт.

G10932

ELBOW

- tube to interlock (3/8" P.T. x 3/4" N.F.)

1шт.

G10933

ELBOW

- tube to rockshaft housing (3/4" N.C. x 3/8" female P.T.)

1шт.

G10934

NIPPLE, LUBE

NIPPLE - pipe, elbow to housing (3/8" P.T. close)

1шт.

G10940

ARM - rocker, rockshaft piston (Utility)

1шт.

G10941

GASKET

- rockshaft housing to transmission case (Utility)

1шт.

G13109

TUBE - interlock to rockshaft housing (includes union nuts) Gen. Purpose 0.5" OD x 36.75" L

1шт.

G13153

LEVER - depth control (Utility)

1шт.

G14381

LEVER - depth control (Gen. Purpose tractor)

1шт.

G15456

PLUG

- oil passage

1шт.

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - cylinder cap (Utility only)

1шт.

G16524

CAP - cylinder, rockshaft housing (Utility only)

1шт.

1/2" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

6шт.

G17051

QUADRANT - depth control

1шт.

5/16" x 1/2" flat hd. mach. screw (Spin-Lock)

1шт.

G30522

HOUSING - rockshaft (includes bushings and G30518 piston assembly) Utility

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

8шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

3/8" x 4" N.C. hex hd. bolt w/lockwasher

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G30523

HOUSING - rockshaft (includes bushings and G30518 piston assembly) Gen. Purpose

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

9шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

1" ctsk. hd. pipe plug

1шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G30518

X

PISTON KIT (includes piston, plastic ring and (2) G4803 steel ring)

1шт.

G45124

TUBE - interlock to rockshaft housing (includes union nuts) Utility 0.5" OD x 37.687, 4.937" L

1шт.

G46229

ROD - control, w/yoke (Utility tractor)

1шт.

5/16" N.F. hex. jam nut

1шт.

G49662

BUSHING

- R.H. rockshaft

2шт.

G49663

BUSHING

- L.H. rockshaft

2шт.

7166AB

BREATHER - rockshaft housing

1шт.

VT2948

WASHER - retaining, lift arm

2шт.

VT2973

X

SCREW - pivot, lift arm trunnion

2шт.

7/8" IT Shakeproof lockwasher

2шт.

VT4846

X

GASKET - oil passage plug

1шт.

P2736S

NUT - wing, quadrant stop (5/16" N.C.)

2шт.

5/16" x 1-1/4" carr. bolt w/lockwasher and plain washer

2шт.

V20353

SCREW

"O" RING (3-3/4" O.D.) (Use of piston w/2 grooves)

1шт.

VT2695

YOKE - control rod

1шт.

B138-142

ROLL PIN - rocker arm (1/4" x 2")

2шт.

B138-200

ROLL PIN - dowel, housing to transmission (1/2" x 1")

1шт.
