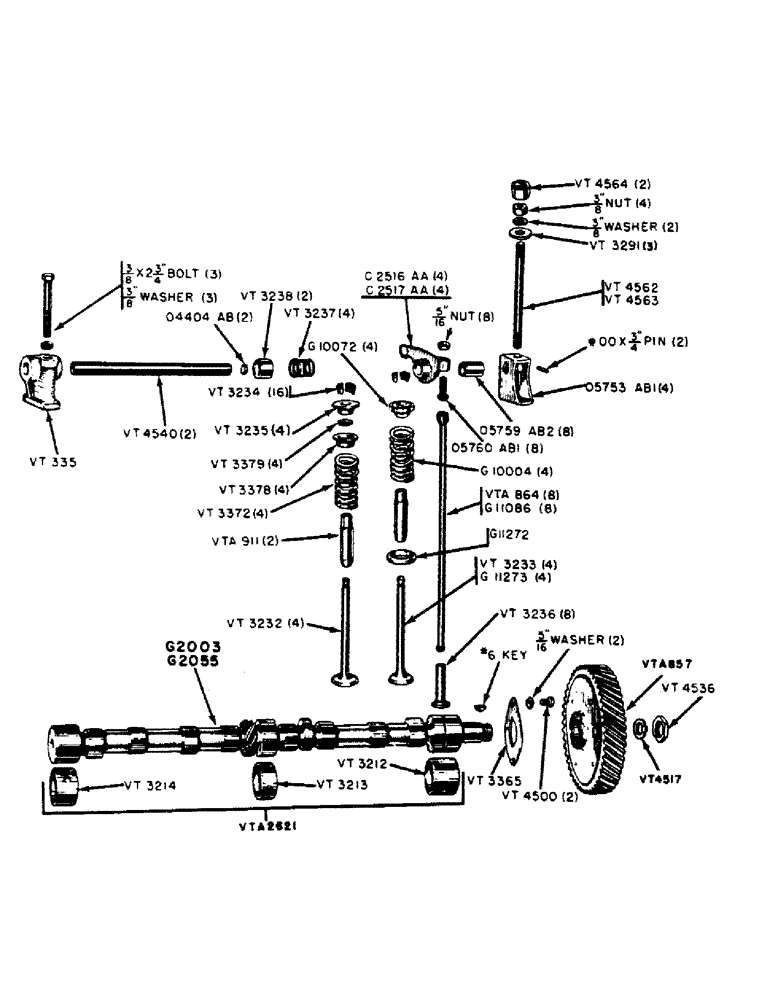

Запчасти Case IH 300B-SERIES (014) - SPARK IGNITION ENGINES, ROCKER ARMS, VALVES AND PUSH RODS (02) - ENGINE

4404AB

PLUG - rocker arm shaft

2шт.

5753AB1

BRACKET - rocker arm shaft

4шт.

3/8" x 2-3/4" N.C. hex. bolt w/lockwasher

2шт.

5759AB2

BUSHING - rocker arm

8шт.

5760AB1

SCREW - adjusting, rocker arm

8шт.

5/16" N.F. hex. jam nut

8шт.

VT335

BRACKET - center rocker arm shaft

1шт.

3/8" x 2-3/4 N.C. hex. head bolt w/lockwasher

1шт.

VT3237

X

SPRING - rocker arm shaft

4шт.

VT3238

X

SPACER - rocker arm shaft

2шт.

VT3291

X

WASHER - stud, valve cover (1" O.D. x 13/32" I.D. x 1/8")

4шт.

VT4540

X

SHAFT - rocker arm

2шт.

Type 00-3/4 taper pin

2шт.

VT4562

X

STUD - rocker shaft brackets (3/8" x 4-3/8")

1шт.

VT4563

STUD - rocker shaft bracket (3/8" x 4-3/4")

2шт.

3/8" N.C. hex. nut and lockwasher

2шт.

VT4564

X

SPACER - lower valve cover stud

2шт.

C2516AA

X

ARM - rocker R.H. assembly

4шт.

C2517AA

X

ARM - rocker L.H. assembly

4шт.

G10004

SPRING

- exhaust valve, push rods

4шт.

G10072

CAP

ROTO-CAP - exhaust valve (Use G11928), push rods

4шт.

G11086

ROD

- push (L.P.G.) see VTA864, valve

8шт.

G11272

INSERT

- exhaust valve seat (L.P.G.) (Use G11931), push rods

4шт.

G11273

X

VALVES - exhaust (L.P.G.) See G11827, valve & push rods

4шт.

G11827

KIT

VALVES - set of 4 exhaust (L.P.G.), valve & push rods

1шт.

G11928

CAP

ROTO-CAP - exhaust valve (Set of 4), push rods

1шт.

G11931

KIT

INSERT - exhaust valve seat (Set of 4) L.P.G.,push rods

1шт.

VT131

X

GUIDE - valve stem (Use VTA911), push rods

1шт.

VT3232

X

VALVE - intake (See VTA2634), push rods

4шт.

VT3233

X

VALVE - exhaust (gasoline and low cost fuel) See VTA2635,push rods

4шт.

VT3234

X

LOCK - retaining, valve spring, push rods

16шт.

VT3235

X

RETAINER - intake valve spring,push rods

4шт.

VT3236

X

TAPPET - valve, push rods

8шт.

VT3372

SPRING

- intake valve, push rods

4шт.

VT3378

X

RETAINER - gasket, intake valve stem, push rods

4шт.

VT3379

X

GASKET - intake valve stem, push rods

4шт.

VTA864

X

ROD - push (gasoline and low cost fuel), valve

8шт.

VTA911

X

GUIDES - valve stem (set of 4), push rods

2шт.

VTA2634

VALVE - intake (set of 4), push rods

1шт.

VTA2635

X

VALVE - exhaust (set of 4) (gasoline and low cost fuel), push rods

1шт.

G2003

CAMSHAFT

(400B Series)

1шт.

G2055

CAMSHAFT

(Replaces VTA2716 when present stock is exhausted) 300B Series

1шт.

VT333

CAMSHAFT (Use G2055)

1шт.

VT540

GEAR (Use G2055), camshaft

1шт.

VT3212

X

BUSHING - front (Use VTA2621), camshaft

1шт.

VT3213

BUSHING - center (Use VTA2621), camshaft

1шт.

VT3214

X

BUSHING - rear (Use VTA2621), camshaft

1шт.

VT3365

X

PLATE - thrust, camshaft

1шт.

VT4500

X

SCREW - thrust plate, camshaft

2шт.

5/16" E.T. Shakeproof lockwasher

2шт.

VT4517

X

LOCK - nut, camshaft

1шт.

VT4536

X

NUT - camshaft

1шт.

VTA857

X

GEAR - camshaft (48T) (Includes governor weight)

1шт.

VTA2621

X

BUSHING - camshaft (Set of 3)

1шт.

VTA2716

CAMSHAFT W/VT4536 nut (300B Series) use G2055 when present stock is exhausted #6 Woodruff key

1шт.
