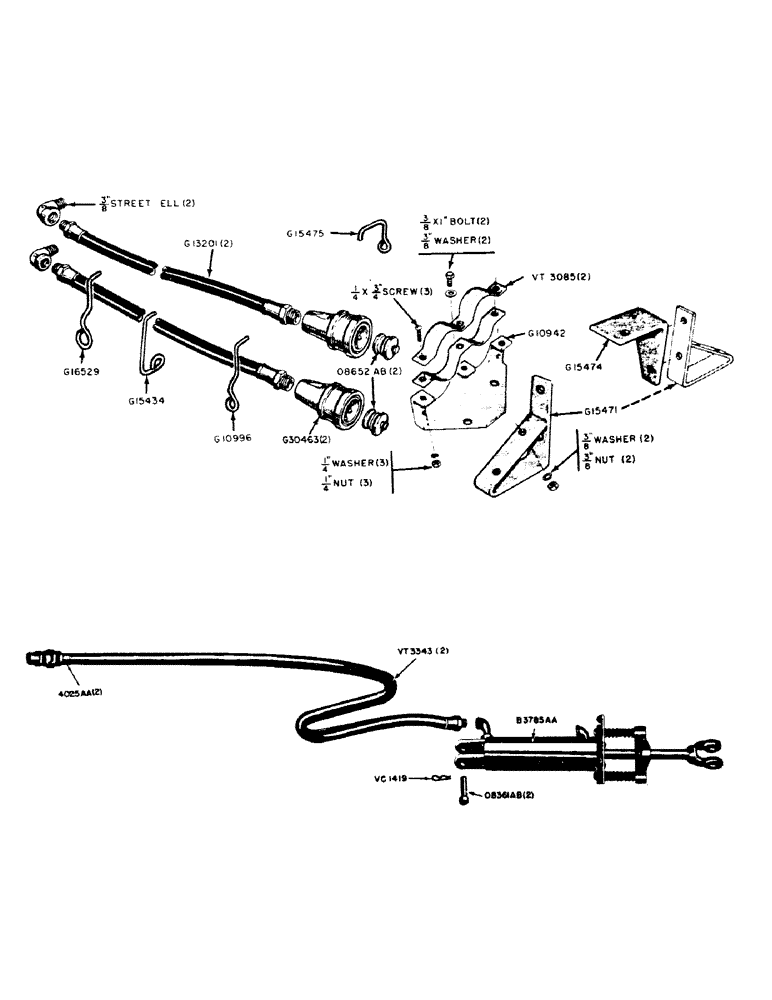

Запчасти Case IH 300B-SERIES (181) - HYDRAULIC FRONT HOSE AND COUPLINGS, PORTABLE HYDRAULIC CYLINDER AND HOSE, 300B SERIES TRACTORS (08) - HYDRAULICS

G10942

HOLDER - hose clamp

1шт.

3/8" x 1" hex. hd. bolt NF w/hex. nut and lockwasher

2шт.

G10996

SUPPORT - hose to brake housing

1шт.

G13201

HOSE - front hydraulic (3/8" ID x 55-1/4" long)

2шт.

3/8" P.T. 90deg. street ell

2шт.

G15434

SUPPORT - hose to transmission stud

1шт.

G15471

BRACKET - clamp holder

1шт.

3/8" x 3/4" hex. hd. bolt NC w/lockwasher

2шт.

3/8" hex. nut NC (used only when hoses are on RH side)

2шт.

G15474

BRACKET - adaptor, clamp holder (when hoses are on RH side)

1шт.

G15475

SUPPORT - hose to front brake stud (when hoses are on RH side)

1шт.

5/8" x 3/4" hex. hd. bolt w/lockwasher

1шт.

G16529

SUPPORT - hose to torque tube

1шт.

G30463

SOCKET - breakaway

2шт.

8652AB

PLUG - dust

2шт.

VT3085

CLAMP - hose, rear

2шт.

1/4" x 3/4" rd. hd. mach. screw NC w/hex. nut and lockwasher

3шт.

8361AB

PIN - coupling, portable cylinder, hydraulic & hose

2шт.

VC1419

X

PIN - cotter, hairpin, portable hydraulic cylinder & hose

2шт.

VT3343

HOSE - hydraulic, rear (3/8" ID x 110" long), portable cylinder & hose

2шт.

B3785AA

CYLINDER - portable hydraulic (3-1/4" x 8"), cylinder & hose

1шт.

4025AA

X

PLUG - break-away coupling, portable hydraulic cylinder & hose

2шт.
