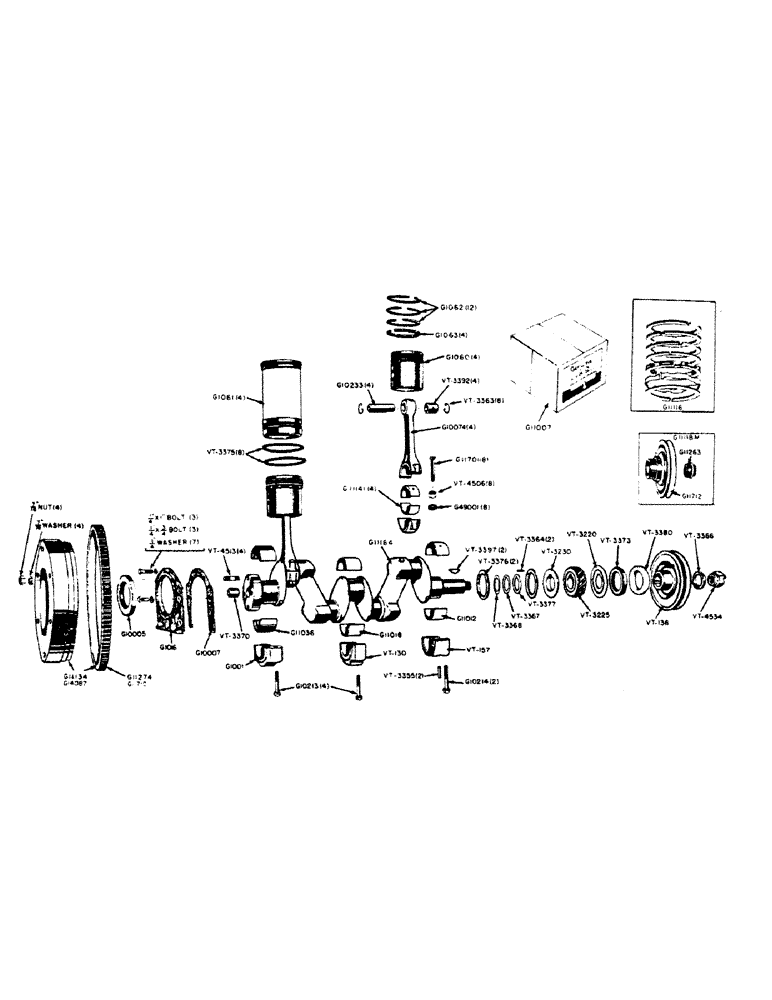

Запчасти Case IH 300B-SERIES (012) - SPARK IGNITION ENGINES, CRANKSHAFT AND FLYWHEEL, PISTONS AND CONNECTING RODS (02) - ENGINE

G1001

CAP - bearing, crankshaft rear

1шт.

G1016

RETAINER - rear oil seal, crankshaft

1шт.

1/4" x 3/4" N.C. hex. hd. bolt w/lockwasher

4шт.

1/4" x 1" N.C. hex. hd. bolt w/lockwasher

3шт.

G1065

FLYWHEEL (Use G11134)

1шт.

G1259

FLYWHEEL (Use G14087)

1шт.

G4510

JAW

NUT - starting crank jaw (See VT4534)

1шт.

G10005

X

OIL SEAL - crankshaft rear (Order G13825 when stock is depleted)

1шт.

G10007

GASKET

- retainer, rear oil seal

1шт.

G10213

BOLT

- place, center and rear bearing caps (1/2" x 2-1/2" N.C.)

4шт.

G10214

BOLT - place, front bearing cap (1/2" x 3-1/8" N.C.)

2шт.

G11012

KIT

LINERS - crankshaft front bearing, top and bottom half (Standard)

1шт.

G11013

SLEEVE CYLINDER

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G11014

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G11016

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

G11018

KIT

LINERS - crankshaft center bearings, top and bottom half (Standard)

1шт.

G11019

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G11020

BEARING LINER

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G11022

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

G11036

KIT

LINERS - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G11037

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G11038

KIT

LINERS - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

G11040

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

G11134

FLYWHEEL - W/124T ring gear (300B Series)

1шт.

G11164

CRANKSHAFT (includes VT3370 pilot bushing)

1шт.

G11263

NUT

- crankshaft pulley G1162

1шт.

G11274

GEAR

- ring, flywheel (124T) 300B Series

1шт.

g11274 is 124t gear for 96t gear order a30564 3-4-99 cw

1шт.

G11700

CRANKSHAFT (Use G11164)

1шт.

G11710

GEAR

- ring, flywheel (135T) 400B Series

1шт.

G11712

PULLEY

- fan belt drive (for use with front mounted equipment)

1шт.

G13825

OIL SEAL

OIL SEAL - crankshaft rear

1шт.

G14087

FLYWHEEL W/135T ring gear (400B Series)

1шт.

B138-176

ROLL PIN - starting crank (3/8" x 1-3/4")

1шт.

VT130

CAP - bearing, crankshaft center

1шт.

VT136

X

PULLEY - fan belt drive, General Purpose (See G11712)

1шт.

VT157

CAP - bearing, crankshaft front

1шт.

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

VT3225

X

GEAR - crankshaft (24T)

1шт.

VT3230

X

PLATE - crankshaft thrust

1шт.

VT3355

PIN - dowel, front bearing cap to oil pump

2шт.

VT3364

X

PIN - thrust washer

2шт.

VT3366

X

COLLAR - starting jaw

1шт.

VT3367

X

SHIM - crankshaft thrust (.002")

1шт.

VT3368

X

SHIM - crankshaft thrust (.010")

1шт.

VT3370

X

BUSHING - pilot, crankshaft

1шт.

VT3373

OIL SEAL - front, crankshaft

1шт.

VT3376

WASHER

- thrust, crankshaft

2шт.

VT3377

X

SPACER - thrust, crankshaft

2шт.

VT3380

SEAL - dust, drive pulley

1шт.

VT3397

KEY - pulley and, Serial Range: gear-crankshaft

2шт.

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

7/16" N.F. hex. nut and lockwasher

4шт.

VT4534

NUT - starting crank jaw (for VT136, General Purpose pulley) Order G4510 when stock is depleted

1шт.

VTA16

CRANK - starting, includes B138-176 roll pin

1шт.

G1060

PISTON

(3-3/8" bore) 4 ring (See G11007), connecting rods

4шт.

G1061

SLEEVE

- cylinder (3-3/8" bore) (See G11007), pistons & connecting rods

4шт.

G1062

OIL SEAL

RING - piston, compression, taper face (See G11116), connecting rods

12шт.

G1063

OIL SEAL

RING - piston, oil control (See G11116), connecting rods

4шт.

G10074

ROD

CONNECTING ROD ASSEMBLY, includes cap, rod, pin and bolts, pistons

4шт.

G10233

PIN

- piston wrist (Use G11925), connecting rods

4шт.

G11007

SLEEVE ASSY

SLEEVE ASSEMBLY - set of 4 matched pistons, rings, pins, etc., connecting rods

1шт.

G11116

PISTON RING SET

SET of 2 in 1 chrome piston rings, connecting rods

1шт.

G11141

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (standard), pistons

4шт.

G11142

KIT

LINERS - connecting rod bearing, top and bottom half (.002" undersize), pistons

4шт.

G11143

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.020" undersize), pistons

4шт.

G11145

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.040" undersize), pistons

4шт.

G11701

BOLT

- connecting rod, connecting rods

8шт.

G11921

KIT

BUSHING - wrist pin (Set of (4) VT3392 bushings), pistons & connecting rods

1шт.

G11925

PISTON PIN

PIN - wrist (Set of (4) G10233 pins and (8) VT3363 rings), pistons & connecting rods

1шт.

G49001

X

NUT - connecting bolt (3/8" Palnut), pistons rods

8шт.

VT3363

X

RING - piston pin retainer (See G11925), connecting rods

8шт.

VT3375

X

"O" RING - cylinder sleeve packing seal (3-1/8" O.D.), pistons & connecting rods

8шт.

VT3392

X

BUSHING - piston pin (Use G11921), connecting rods

4шт.

VT4506

X

NUT - hex. connecting rod bolt, pistons

8шт.

VT4538

X

CONNECTING ROD AND CAP (Use G10074), pistons

1шт.
