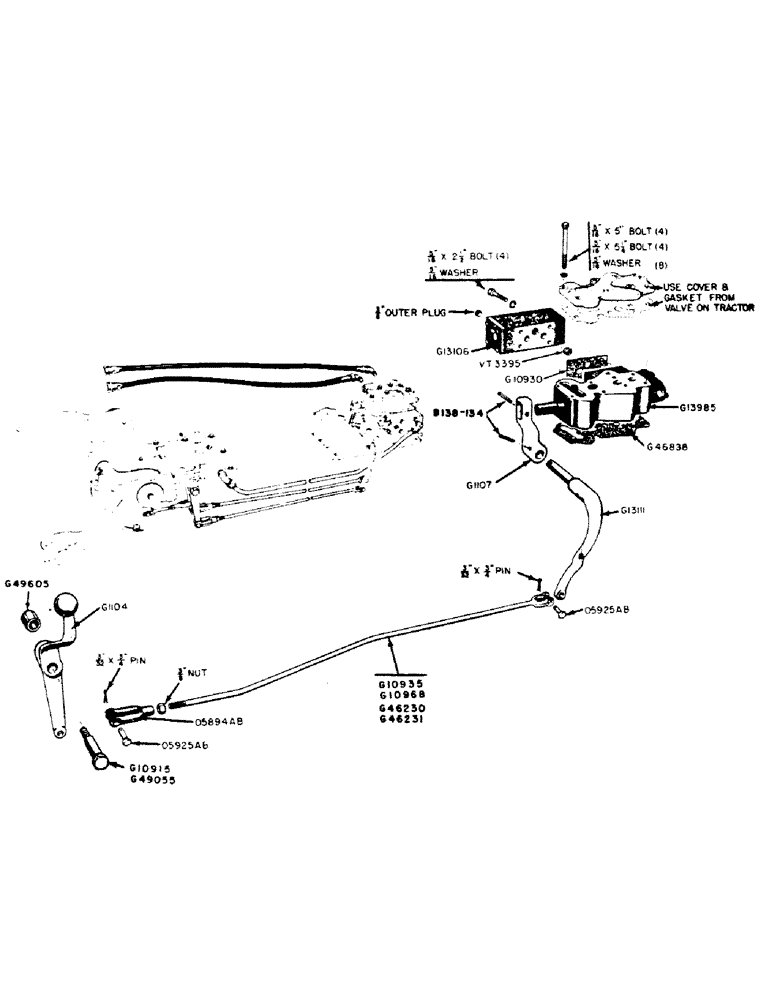

Запчасти Case IH 300B-SERIES (159) - HYDRAULIC CONTROLS AND LEVER, 300B SERIES TRACTORS W/REMOTE CONTROL & EAGLE HITCH (08) - HYDRAULICS

B138-134

ROLL PIN - bellcrank (1/4" x 1")

2шт.

G1104

LEVER

- hand, double control (outer)

1шт.

G1107

CRANK

BELLCRANK - double control

1шт.

G10915

BOLT - pivot, hand control lever (1/2" x 4-1/4") Before tractor #6120001

1шт.

G10930

GASKET

- interlock to control body

1шт.

G10935

ROD - control, valve to control lever (Gen. Purpose tractors before #6120001)

1шт.

3/8" N.F. hex. nut

1шт.

G10968

ROD - control, valve to control lever (Utility tractors before #6120001)

1шт.

G13106

HYDRAULIC INTERLOCK ASSEMBLY

1шт.

5/16" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

G13111

CRANK

- control, upper valve

1шт.

5/16" x 5" N.C. hex. hd. bolt w/lockwasher

4шт.

5/16" x 5-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G46230

ROD

- control, valve to control lever (Utility tractor #6120001 and after)

1шт.

G46231

ROD - control, valve to control lever (Gen. Purpose tractor #6120001 and after)

1шт.

G46838

GASKET

- control valve

1шт.

G49055

STEP BOLT

BOLT - pivot, hand control lever (1/2" x 4-7/8") (Tractor #6120001 and after)

1шт.

G49605

SPACER - hand control levers (Tractor #6120001 and after)

1шт.

5894AB

YOKE -, Serial Range: rod-lever

1шт.

5925AB

PIN -, Serial Range: yoke-lever

1шт.

3/32" x 3/4" cotter pin

1шт.

VT3395

X

PLUG - pipe, control valve (1/4" ctsk. hd.)

1шт.
