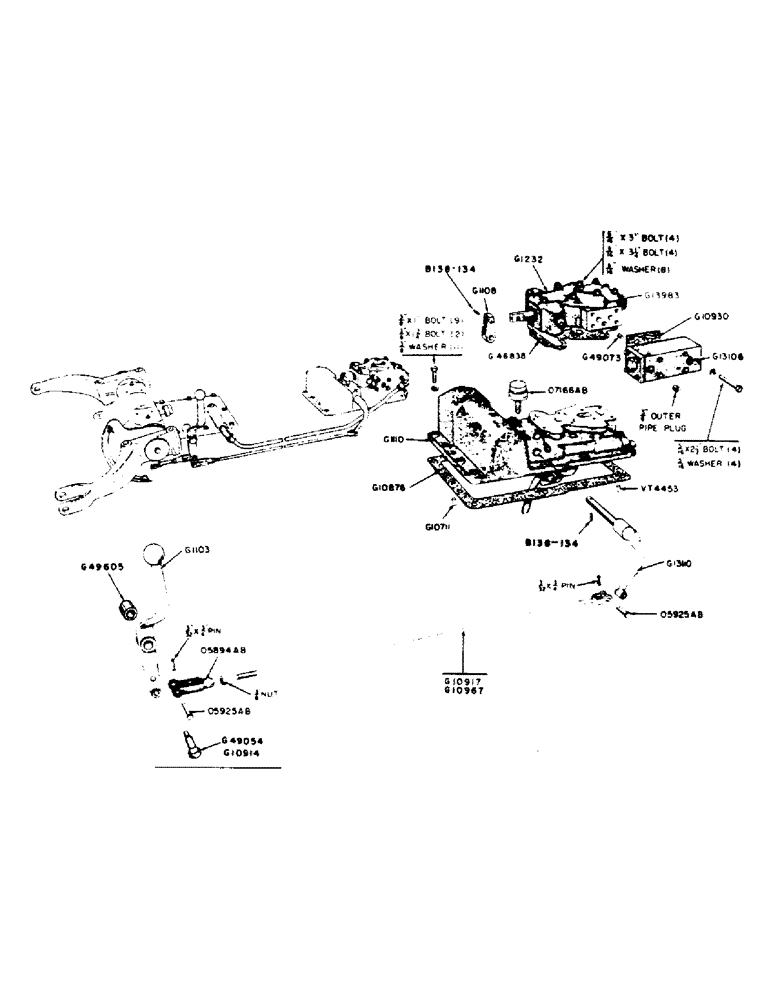

Запчасти Case IH 300B-SERIES (158) - HYDRAULICS CONTROL AND LEVER, 300B SERIES WITH EAGLE HITCH OR REMOTE CONTROL (08) - HYDRAULICS

G1103

LEVER

- hydraulic hand control

2шт.

G1108

ARM ASSY.

BELLCRANK - control valve crank

1шт.

G1110

HOUSING - hydraulic pump and adapter

1шт.

3/8" x 1" hex. hd. bolt UNC

9шт.

3/8" x 1-3/4" hex. hd. bolt, UNC

2шт.

3/8" lockwasher

11шт.

G10711

PIN

- dowel (1/2" x 3/4") (rear)

1шт.

G10876

GASKET

- adapter housing to torque tube

1шт.

G10914

BOLT - control lever pivot (1/2" x 2-1/2") (Before tractor #6120001)

1шт.

G10917

ROD - control (32-3/16" long) (Gen. Purpose)

1шт.

3/8" hex. nut UNF

1шт.

G10930

GASKET

- interlock to control valve

1шт.

G10967

ROD - control (29-3/16" long) (Utility)

1шт.

3/8" hex. nut, UNF

1шт.

G13106

HYDRAULIC INTERLOCK

1шт.

5/16" x 2-1/2" hex. hd. bolt, UNC w/lockwasher

4шт.

3/8" P.T. pipe plug ctsk, head

1шт.

G13110

CRANK

- valve control

1шт.

G13983

HYDRAULIC CONTROL VALVE (includes VT4913 ball and VT2006 spring)

1шт.

5/16" x 3-1/4" hex. hd. bolt, UNC

4шт.

5/16" x 3" hex. hd. bolt, UNC

4шт.

5/16" lockwasher

8шт.

G46838

GASKET

- valve to adapter housing

1шт.

G49054

BOLT - pivot, hand control lever (1/2" x 3-1/8") (Tractor #6120001 and after)

1шт.

G49073

PLUG - drilled, interlock (w/E.H. only)

1шт.

G49605

SPACER - hand control lever (Tractor #6120001 and after)

1шт.

5894AB

YOKE - control rod

1шт.

5925AB

PIN - yoke

2шт.

3/32" x 3/4" cotter pin

2шт.

7166AB

BREATHER - adapter housing

1шт.

VT4453

X

PIN - dowel (3/8" x 3/4") front

1шт.

B138-134

ROLL PIN (1/4" x 1") bellcrank

2шт.
