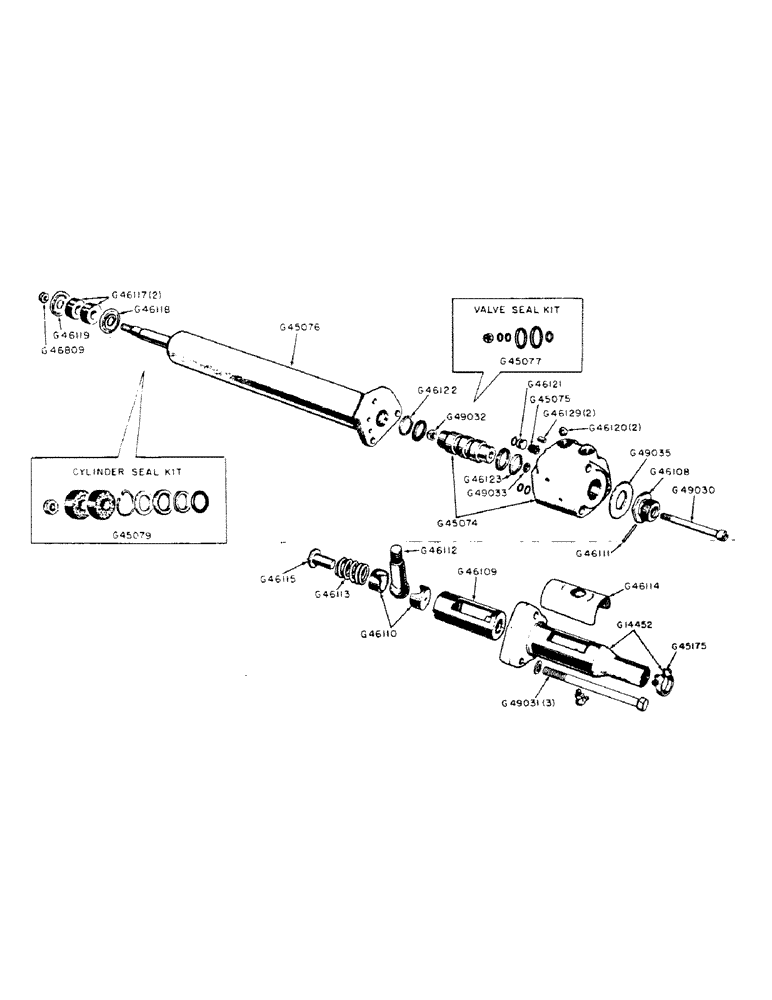

Запчасти Case IH 300B-SERIES (151) - PARTS FOR G45056 HYDRAULIC CYLINDER (08) - HYDRAULICS

G14452

SLEEVE

- outer, cylinder, w/flange (Includes G45175 clamp and bolt)

1шт.

G45074

HOUSING - valve, w/spool assembly

1шт.

G45075

LOCK VALVE

VALVE - relief w/ball

1шт.

G45076

CYLINDER BLOCK

CYLINDER COMPLETE, less valve

1шт.

G45077

KIT

- valve seals (Includes seals for small end of valve spool and large end of valve spool. "O" rings for oil passage and relief valve and 1 - G49032 lock nut)

1шт.

G45078

KIT

- ball stud (Includes 2 - G46110 seats, 1 - G46112 stud and 1 - G46114 dust shield)

1шт.

G45079

KIT

- cylinder seals (Includes dust shield, bushing, seal, ring, washer and 2 - G46117 grommet and 1 - G46809 nut)

1шт.

G46108

SCREW

- stop, torque adjusting

1шт.

G46109

SLEEVE

- inner, ball stud spring

1шт.

G46110

SEAT

- ball stud (See G45078)

2шт.

G46111

PIN

- lock, adjusting screw

1шт.

G46112

STUD

- ball (See G45078)

1шт.

G46113

VALVE SPRING

SPRING - ball stud

1шт.

G46114

SHIELD

- dust, ball stud (See G45078)

1шт.

G46115

STOP

- spring, ball stud

1шт.

G46117

X

GROMMET - rubber, piston rod (See G45079)

2шт.

G46118

WASHER

- inner, retaining, rubber grommet

1шт.

G46119

WASHER

- outer, retaining, rubber grommet

1шт.

G46120

SEAT,0.375" DIA.

- flared tube

2шт.

G46121

PLUG

- relief valve

1шт.

G46122

BUSHING

- large, valve spool

1шт.

G46123

BUSHING

- small, valve spool

1шт.

G46129

INSERT - oil passage, Serial Range: valve-cylinder

2шт.

G46809

NUT - piston rod (7/16")

1шт.

G49030

BOLT (SPREADER)

BOLT - valve spool

1шт.

G49031

BOLT (SPREADER)

BOLT - flange to valve housing

3шт.

G49032

NUT

- lock, valve spool (See G45077)

1шт.

G49033

SPACER

- valve spool

1шт.

G49035

PLATE ASSY.

PLATE - valve, Serial Range: housing-flange

1шт.

G45175

CLAMP

- outer sleeve and flange (Includes bolt and nut)

1шт.
