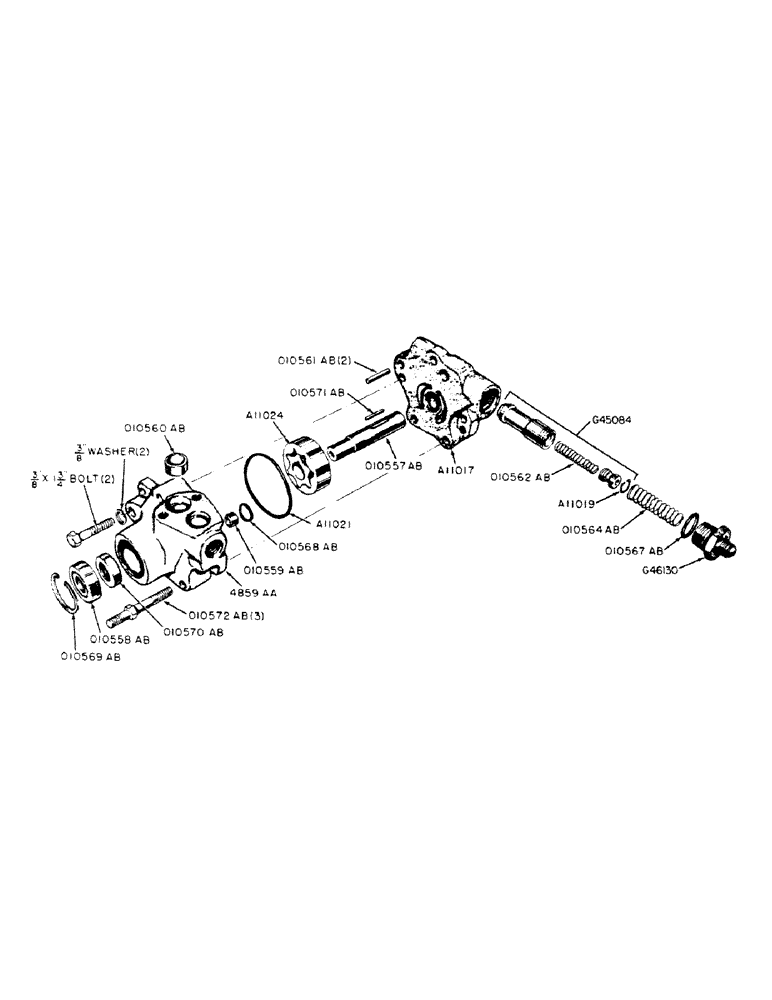

Запчасти Case IH 300B-SERIES (150) - PARTS FOR G45055 HYDRAULIC PUMP (08) - HYDRAULICS

A11017

COVER ASSEMBLY (includes bushing and 2 - 010561AB dowel pins)

1шт.

A11019

SNAP RING - relief plunger

1шт.

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

"O" RING - pump body to cover

1шт.

A11024

ROTOR ASSEMBLY (inner and outer rotor)

1шт.

G45084

VALVE - control, complete (includes body, plunger, A11019 snap ring and 010562AB spring)

1шт.

G46130

FITTING - bolt, pump valve cap

1шт.

10557AB

SHAFT - pump drive

1шт.

10558AB

BEARING - pump shaft

1шт.

10559AB

RETAINER - pump body gasket (9/16" x 1/4" long)

1шт.

10560AB

RETAINER - pump body gasket (3/4" x 5/8" long)

1шт.

10561AB

PIN - dowel, cover to pump body

2шт.

10562AB

SPRING - relief valve plunger

1шт.

10564AB

SPRING - flow control valve

1шт.

10567AB

"O" RING - fitting, valve cap bolt

1шт.

10568AB

"O" RING - flow director

1шт.

10569AB

SNAP RING - for 010558AB bearing

1шт.

10570AB

OIL SEAL - pump shaft

1шт.

10571AB

PIN - drive, pump rotor

1шт.

10572AB

STUD - pump, Serial Range: body-cover

3шт.

4859AA

BODY - pump (includes bushings and 010559AB and 010560AB retainers)

1шт.

3/8" x 1-3/4" NC hex. hd. bolt w/lockwasher

2шт.
