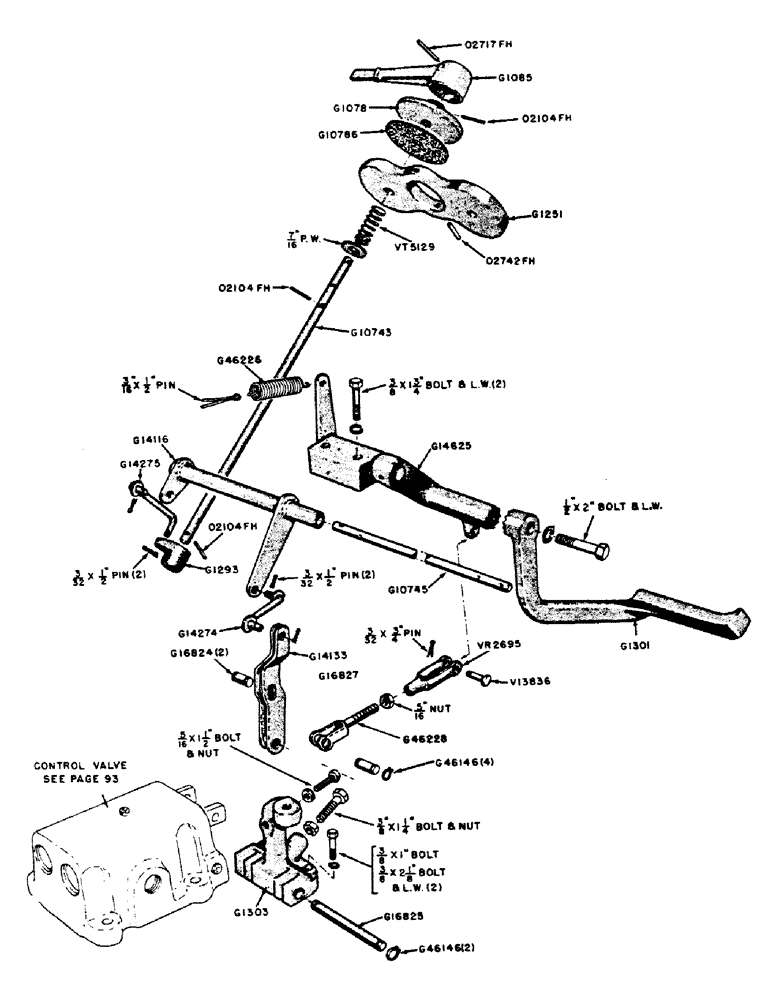

Запчасти Case IH 300B-SERIES (094) - CASE-O-MATIC CONTROL VALVE LINKAGE (08) - HYDRAULICS

B138-75

ROLL PIN - G10743 shaft (5/32" x 7/8")

3шт.

B138-82

ROLL PIN - G1085 handle (5/32" x 1-5/8")

1шт.

B138-130

ROLL PIN - G1251 support (1/4" x 3/4")

2шт.

G1078

PLATE

- friction, hand lever

1шт.

G1085

LEVER

HANDLE - control, direct drive

1шт.

G1251

SUPPORT - friction plate, hand lever

1шт.

G1292

SUPPORT (Use G14625)

1шт.

G1293

LEVER - lower, direct drive

1шт.

G1301

PEDAL - foot, Case-O-Matic control

1шт.

1/2" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

1шт.

G1302

LEVER (Use G14625)

1шт.

G1303

BRACKET - link pivot and steering support

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

1шт.

3/8" x 2-1/8" N.C. hex. hd. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.C. hex. hd. bolt (full thrd.) w/hex. jam nut

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt (full thrd.) w/hex. jam nut

1шт.

G10743

SHAFT - hand lever, control valve

1шт.

7/16" plain washer

1шт.

G10786

DISC

FRICTION DISK - hand control lever

1шт.

G14116

CROSS SHAFT AND LEVER - direct drive

1шт.

G14133

LINK - control, direct drive

1шт.

G14274

LINK - L.H., direct drive cross shaft

1шт.

3/32" x 1/2" cotter pin

2шт.

G14275

LINK - R.H., direct drive cross shaft

1шт.

3/32" x 1/2" cotter pin

2шт.

G14625

SHAFT AND LEVER - foot pedal to control valve

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G16824

AXLE PIN

PIN - upper pivot, control valve links

2шт.

G16825

PIN

- lower pivot, control valve links

1шт.

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot pin #37, Ext

6шт.

G46226

X

SPRING - return, foot pedal

1шт.

3/16" x 1" cotter pin

1шт.

G46228

YOKE

- valve spool, Case-O-Matic drive

1шт.

5/16" N.F. hex. jam nut

1шт.

V13836

PIN - yoke

1шт.

3/32" x 3/4" cotter pin

1шт.

VR2695

X

YOKE - foot pedal to spool yoke

1шт.

VT5129

X

SPRING - tension, direct drive hand lever

1шт.
