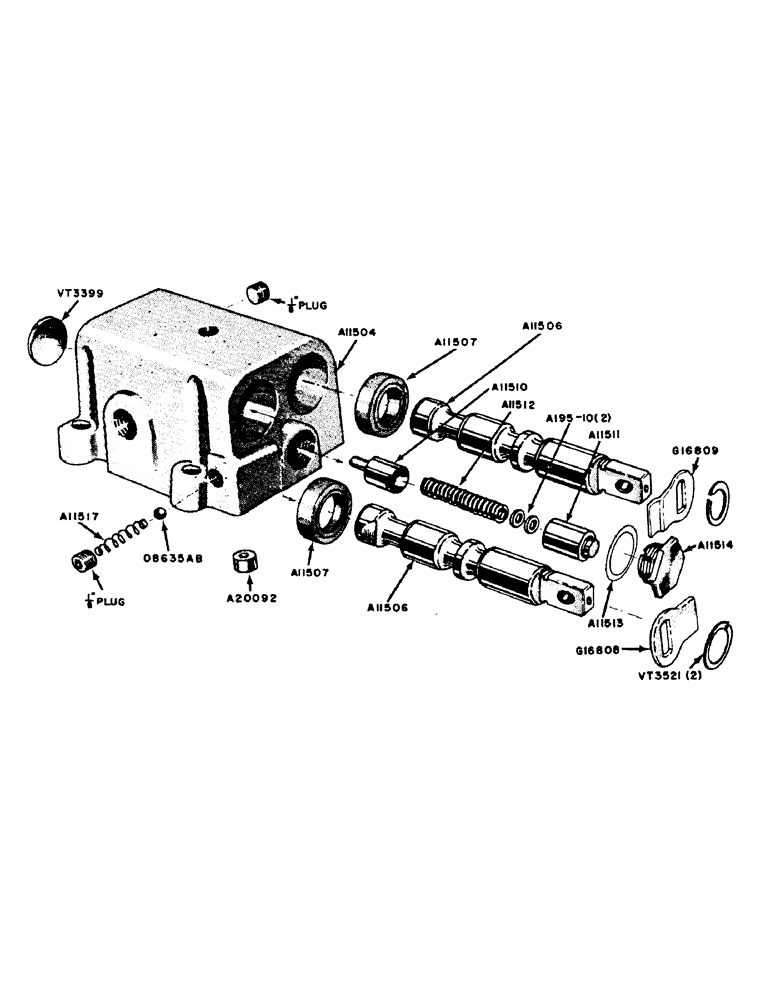

Запчасти Case IH 300B-SERIES (093) - PARTS FOR G14129 AND G14458 CASE-O-MATIC CONTROL VALVES (08) - HYDRAULICS

A195-10

WASHER - spacer (3/16" SAE plain)

3шт.

A11504

BODY - control valve

1шт.

1/8" ctsk. hd. pipe plug

2шт.

A11506

SPOOL (R.H. only w/shuttle transmission)

2шт.

A11507

OIL SEAL

OIL SEAL - spool

2шт.

A11510

PLUNGER

- front, pressure regulator

1шт.

A11511

PLUNGER

- rear, pressure regulator

1шт.

A11512

VALVE SPRING

SPRING - pressure regulator

1шт.

A11513

GASKET

- pressure regulator cap

1шт.

A11514

CAP - pressure regulator screw

1шт.

A11517

VALVE SPRING

SPRING - check valve

1шт.

A20092

PLUG

- pressure regulator orifice

1шт.

A20477

SPOOL (L.H. only w/shuttle transmission)

1шт.

G14129

CONTROL VALVE complete (Tractors without shuttle transmission)

1шт.

G14458

CONTROL VALVE complete (Tractors w/shuttle transmission)

1шт.

G16808

PLATE ASSY.

PLATE - interlock, L.H. (direct drive) spool

1шт.

G16809

PLATE ASSY.

PLATE - interlock, R.H. (Case-O-Matic drive)

1шт.

8635AB

BALL - steel, check valve

1шт.

VT3399

PLUG - valve spool opening

2шт.

VT3521

X

SNAP RING - interlock plate

2шт.
