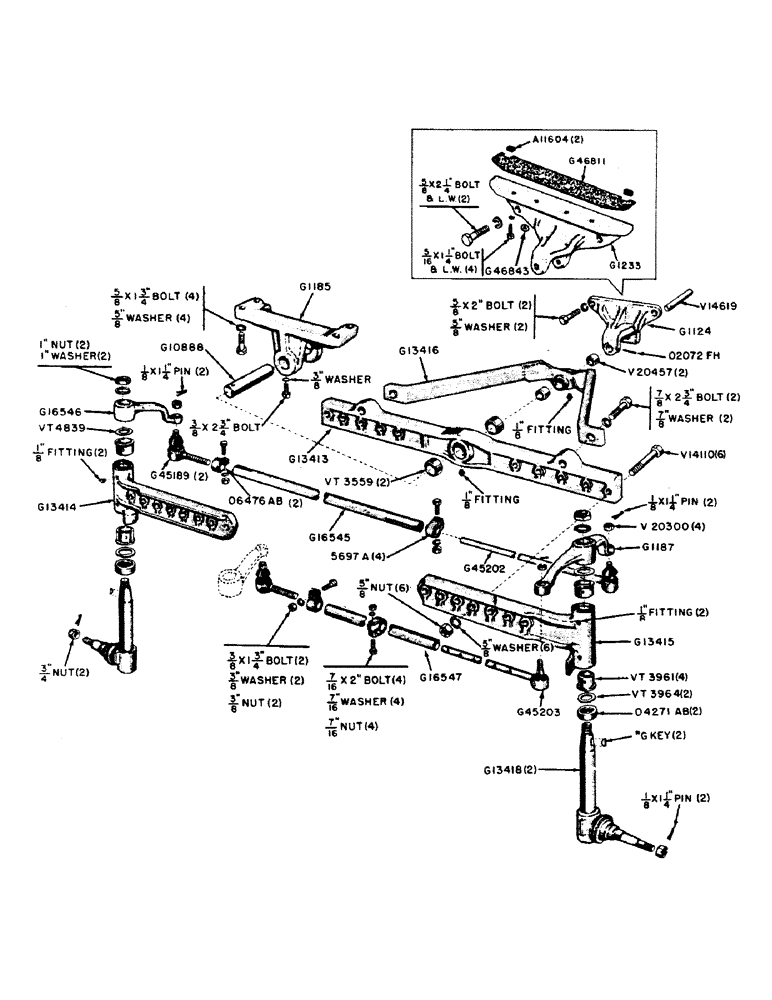

Запчасти Case IH 300B-SERIES (136) - ADJUSTABLE FRONT AXLE, UTILITY TRACTORS (06) - POWER TRAIN

A11604

OIL PAN GASKET SET

- rear pivot bracket (410B)

2шт.

G1124

BRACKET - rear pivot, radius rod (310B)

1шт.

5/8" x 2" NC hex. hd. bolt w/lockwasher

2шт.

G1185

SUPPORT - front pivot

1шт.

5/8" x 1-3/4" NC hex. hd. bolt w/lockwasher

4шт.

G1187

ARM - steering spindle, LH

1шт.

G1188

PIVOT (Use G13416)

1шт.

G1233

BRACKET - rear pivot, radius rod (410B)

1шт.

5/16" x 1-1/4" NC hex. hd. bolt w/lockwasher

4шт.

5/8" x 2-1/4" NC hex. hd. bolt w/lockwasher

2шт.

G10888

PIN

- front pivot

1шт.

3/8" x 2-3/4" N.C. hex. hd. bolt w/lockwasher

1шт.

G13413

SECTION - center, includes 2-VT3559 pivot bushings

1шт.

1/8" str. Lincoln fitting #5000

1шт.

G13414

EXTENSION - RH, front axle, includes 2-VT3961 bushings

1шт.

1/8" str. Lincoln fitting #5000

2шт.

G13415

EXTENSION - LH, front axle, includes 2-VT3961 bushings

1шт.

1/8" str. Lincoln fitting #5000

2шт.

G13416

RADIUS ROD AND REAR PIVOT, includes 2-V20457 bushings

1шт.

7/8" x 2-3/4" NC hex. hd. bolt w/lockwasher

2шт.

1/8" 45deg. Lincoln fitting #5200

1шт.

G13418

SPINDLE - front wheel

2шт.

1" NF hex. nut and lockwasher

2шт.

1/8" x 1-1/4" cotter pin

2шт.

#G Woodruff key

2шт.

3/4" NF hex. nut

2шт.

G16545

TUBE - tie rod

1шт.

G16546

ARM - steering spindle, RH

1шт.

G16547

TUBE - drag link

1шт.

G45189

END

TIE ROD - inner

2шт.

1/8" x 1-1/4" cotter pin

2шт.

G45202

TIE ROD - notched

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G45203

DRAG LINK - notched

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G46811

GASKET

- rear pivot bracket (410B)

1шт.

G46843

X

WASHER - sealing, G1233 support bolts (5/16")

2шт.

5697A

X

CLAMP - notched tie, Serial Range: rod-tube

4шт.

7/16" x 2" NF hex. hd. bolt w/hex. nut and lockwasher

4шт.

4271AB

BEARING - thrust, outer spindle (Timken #T-139)

2шт.

6476AB

CLAMP - tie rod end to tube, includes 3/8" x 1-3/4" NC hex. hd. bolt w/hex. nut and lockwasher

2шт.

2072FH

ROLL PIN - rear pivot pin (1/4" x 2")

1шт.

V14110

BOLT - axle entensions to center section

6шт.

5/8" NF hex. nut and lockwasher

6шт.

V14619

PIN - rear pivot, radius rod

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod ends (9/16" slotted hex.)

4шт.

V20457

X

BUSHING - rear pivot

2шт.

VT3559

X

BUSHING - pivot, center section

2шт.

VT3961

X

BUSHING - spindle

4шт.

VT3964

X

WASHER - thrust, outer spindle

2шт.

VT4839

X

SHIM - adjusting, steering spindle

1шт.
