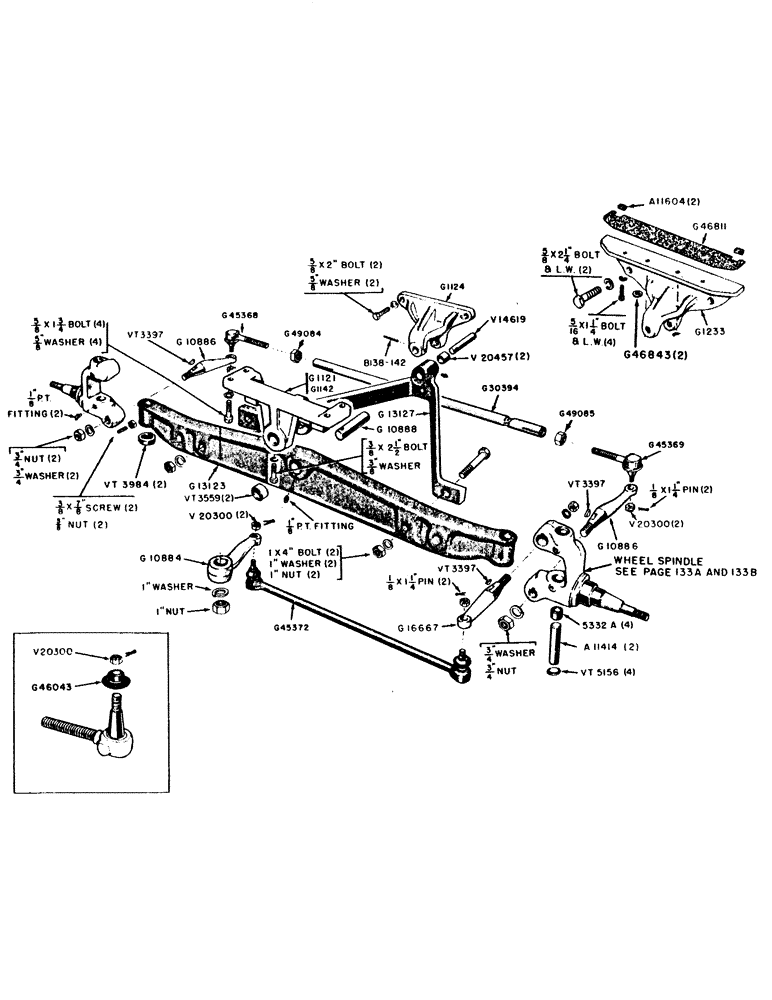

Запчасти Case IH 300B-SERIES (134) - HEAVY DUTY FRONT AXLE, UTILITY TRACTORS (06) - POWER TRAIN

A11414

AXLE PIN,25.02mm OD x 152.4mm L

KING PIN - wheel spindle

2шт.

A11604

OIL PAN GASKET SET

- rear pivot support (400B)

2шт.

G1121

SUPPORT - front pivot (gas engine) See G1142

1шт.

5/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G1124

BRACKET - rear pivot radius rod (300B)

1шт.

5/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G1142

SUPPORT - front pivot (diesel engine) See G1121

1шт.

5/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G1233

SUPPORT - rear pivot, radius rod (400B)

1шт.

5/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G10884

ARM - center steering -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

G10886

ARM

- tie rod, Serial Range: end-spindle

2шт.

3/4" N.F. hex. nut and lockwasher

2шт.

G10888

PIN

- axle pivot

1шт.

3/8" x 3" N.C. hex. hd. bolt w/lockwasher

1шт.

G13123

AXLE - front (includes (2) VT3559 pivot bushings)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

3/8" x 7/8" N.C. headless set screw w/hex. nut

2шт.

G13127

RADIUS ROD (includes (2) V20457 pivot bushings)

1шт.

1" x 4" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G13278

X

END - R.H., tie rod (after stocks are depleted use G45368)

1шт.

1/8" std. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G13279

X

END - L.H., tie rod (after stocks are depleted use G45369)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G16652

TUBE - tie rod (after stocks are depleted use G30394) 1" OD x 38.375" L

1шт.

G16667

X

ARM - steering, drag, Serial Range: link-spindle

1шт.

3/4" N.F. hex. nut and lockwasher

1шт.

G30394

TUBE - tie rod (includes G49084 and G49085 nuts)

1шт.

G45368

END ASSY.

END - tie rod, R.H.

1шт.

G45369

END ASSY.

END - tie rod, L.H.

1шт.

G45372

BAR

DRAG LINK - center arm to L.H. spindle arm (23-1/4" long)

1шт.

G46043

COVER

SEAL - dust, drag link and tie rod ends

4шт.

G46811

GASKET

- rear pivot support to engine (400B)

1шт.

G46843

X

WASHER - sealing, rear pivot support (5/16") 400B

2шт.

G49084

JAM NUT

- R.H. tie rod

1шт.

G49085

JAM NUT

- L.H. tie rod

1шт.

5332A

X

BUSHING - king pin, wheel spindle

4шт.

6476AB

CLAMP - tie rod end (Use with old style tie rod. Not shown)

2шт.

VT3397

KEY - steering arm to spindle (Woodruff)

3шт.

VT3559

X

BUSHING - axle pivot

2шт.

VT3984

X

BEARING - thrust, wheel spindle (Timken #T-101)

2шт.

VT5156

PLUG - king pin, wheel spindle

4шт.

V14619

PIN - pivot, radius rod

1шт.

V20300

OPERATOR MANUAL

NUT - drag link and tie rod ends (9/16" N.F. slotted)

4шт.

V20457

X

BUSHING - pivot, radius rod

2шт.

B138-142

ROLL PIN - radius pivot pin V14619 (1/4" x 2")

1шт.
