Запчасти Case IH 300B-SERIES (133B) - FRONT WHEEL, HUB AND SPINDLE, HEAVY DUTY, UTILITY TRACTORS (06) - POWER TRAIN

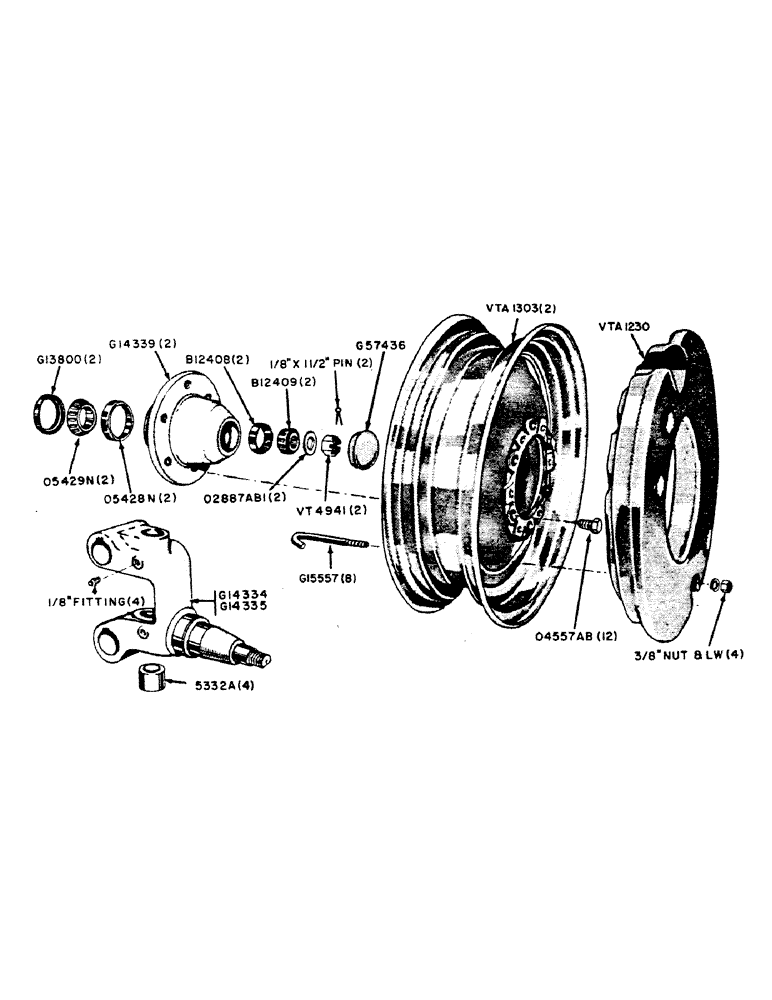

Схема запчастей Case IH 300B-SERIES - (133B) - FRONT WHEEL, HUB AND SPINDLE, HEAVY DUTY, UTILITY TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing (Timken #LM67010)

2шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing (Timken #LM67048)

2шт.

G1311

HUB (Use G14339)

1шт.

G13800

SEAL

- inner, wheel hub

2шт.

G14334

SPINDLE

- R.H. wheel (Includes 2 - 5332A bushings)

1шт.

1/8" 45deg. fitting (Lincoln #5200)

2шт.

G14335

SPINDLE

- L.H. wheel (Includes 2 - 5332A bushings)

1шт.

1/8" 45deg. fitting (Lincoln #5200)

2шт.

G14339

HUB CAP

HUB - front wheel (Includes bearing cups)

2шт.

G15557

BOLT (SPREADER)

BOLT - hook, wheel weight

8шт.

3/8" N.C. hex. nut and lockwasher

8шт.

G57436

CYLINDER END CAP

CAP - hub

2шт.

5332A

X

BUSHING - wheel spindle

4шт.

2887AB1

WASHER - wheel hub nut

2шт.

4557AB

BOLT -, Serial Range: wheel-hub

12шт.

VT624

WEIGHT - wheel (Use VTA1230)

1шт.

VT4941

X

NUT - wheel hub to spindle (1" N.F. slotted hex.)

2шт.

1/8" x 1-1/2" cotter pin

2шт.

VTA1230

WEIGHTS- wheel (Set of 2 w/bolts)

1шт.

VTA1303

X

WHEEL - front (6.00 x 16 tire)

2шт.

5428N

CUP - inner bearing (Timken #13621)

2шт.

5429N

CONE - inner bearing (Timken #13685)

2шт.

Выбрано товаров: 22
