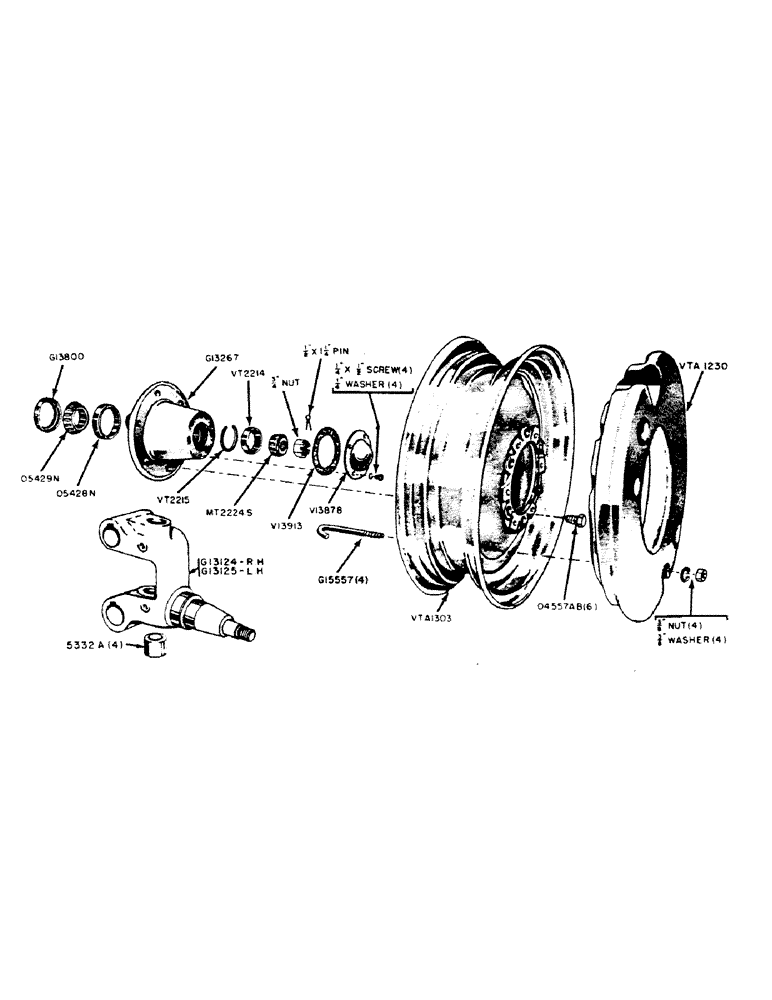

Запчасти Case IH 300B-SERIES (133A) - FRONT WHEEL, HUB AND SPINDLE, STANDARD, UTILITY TRACTORS (06) - POWER TRAIN

G13124

SPINDLE

- R.H. wheel (Includes 2 - 5332A bushings)

1шт.

1/8" 45deg. fitting (Lincoln #5200)

2шт.

3/4" N.F. slotted hex. nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G13125

SPINDLE - L.H. wheel (Includes 2 - 5332A bushings)

1шт.

1/8" 45deg. fitting (Lincoln #5200)

2шт.

3/4" N.F. slotted hex. nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G13267

HUB - front wheel (Includes bearing cups and snap rings)

2шт.

G13800

SEAL

- inner, wheel hub

2шт.

G15557

BOLT (SPREADER)

BOLT - hook, wheel weight

8шт.

3/8" N.C. hex. nut and lockwasher

8шт.

5332A

X

BUSHING - king pin

4шт.

4557AB

BOLT -, Serial Range: wheel-hub

12шт.

5428N

CUP - inner bearing (Timken #13621)

2шт.

5429N

CONE - inner bearing (Timken #13685)

2шт.

V13878

CAP - wheel hub

2шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

8шт.

V13913

X

GASKET - hub cap

2шт.

VT546

HUB ( Use G13267)

1шт.

VT624

WEIGHT - wheel (Use VTA1230)

1шт.

VT2214

X

CUP - outer bearing (Timken #09195)

2шт.

VT2215

X

SNAP RING - wheel hub

2шт.

MT2224S

X

CONE - outer bearing (Timken #09081)

2шт.

VTA1230

WEIGHTS - wheel (Set of 2 - w/bolts)

1шт.

VTA1303

X

WHEEL - front (6.00 x 16 tires)

2шт.
