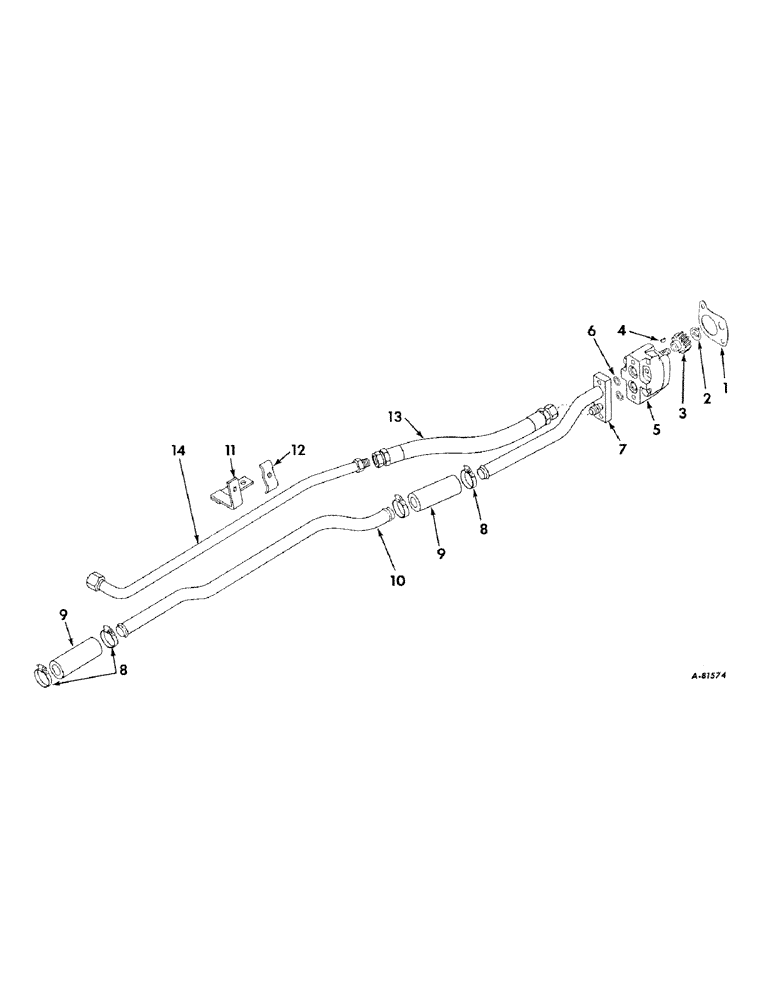

Запчасти Case IH 2424 (129) - HYDRAULIC POWER SUPPLY, HYDRAULIC POWER SUPPLY, GASOLINE ENGINE TRACTORS (07) - HYDRAULIC SYSTEM

1

350708R1

GASKET

hyd pump

1шт.

2

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

3

350709R1

GEAR

hyd pump drive, 16 T

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

4

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Hyd pump drive gear #3, 1/8" x 1/2", HT

1шт.

5

377033R93

PUMP

ASSY, hyd, 4.5 GPM, Cessna, for components see list of parts under details of hydraulic pump, tractors w/o power steering, optional with 397130R91

1шт.

5

397130R91

PUMP

ASSY, hyd, 4.5 GPM, Thompson, for components see list of parts under details of hydraulic pump, tractors w/o power steering, optional with 377033R93

1шт.

5

376993R93

PUMP

ASSY, hyd, 9 GPM, Cessna, for components see list of parts under details of hydraulic pump, tractors w/power steering, optional with 368633R92

1шт.

5

368633R92

PUMP

ASSY, hyd, 9 GPM, Thompson, for components see list of parts under details of hydraulic pump, tractors w/power steering, optional with 376993R93

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

Cessna pump Hex, 3/8"-16 x 2 1/4", G5

2шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap, Thompson pump

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, hyd pump flange, Thompson pump

2шт.

6

382137R1

O-RING,0.987" ID x 0.103" Width

1 x 1-3/16 x 3/32, hyd pump flange, Cessna pump

2шт.

7

388854R11

FLANGE ASSY, pump

1шт.

103026

NUT,3/8"-24, G5

2шт.

186311

LOCK SCREW

SCREW, 3/8-24 x 3-3/4 hex-hd cap

2шт.

186312

BOLT

SCREW, 3/8-24 x 4 hex-hd cap, tractors w/power steering and Thompson pump

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, suction hose

4шт.

9

389250R1

HOSE,1.13" ID x 5.00", SAE 100R5

Suction 1.13" ID x 5.00", SAE 100R5

2шт.

10

388833R1

PIPE, suction 1.062" OD, 32, 2.5" Length

1шт.

11

388858R11

SUPPORT ASSY, pipe

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12

388857R1

CLAMP, pipe

1шт.

109084

NUT,1/4"-20, G5

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

Washer, 1/4 med lock Hex, 1/4"-20 x 1 3/8", G5

1шт.

13

388836R91

HOSE ASSY.

HOSE ASSY, hyd

1шт.

14

388850R11

PIPE ASSY, pressure

1шт.
