Запчасти Case IH 2424 (079) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH (06) - ELECTRICAL SYSTEMS

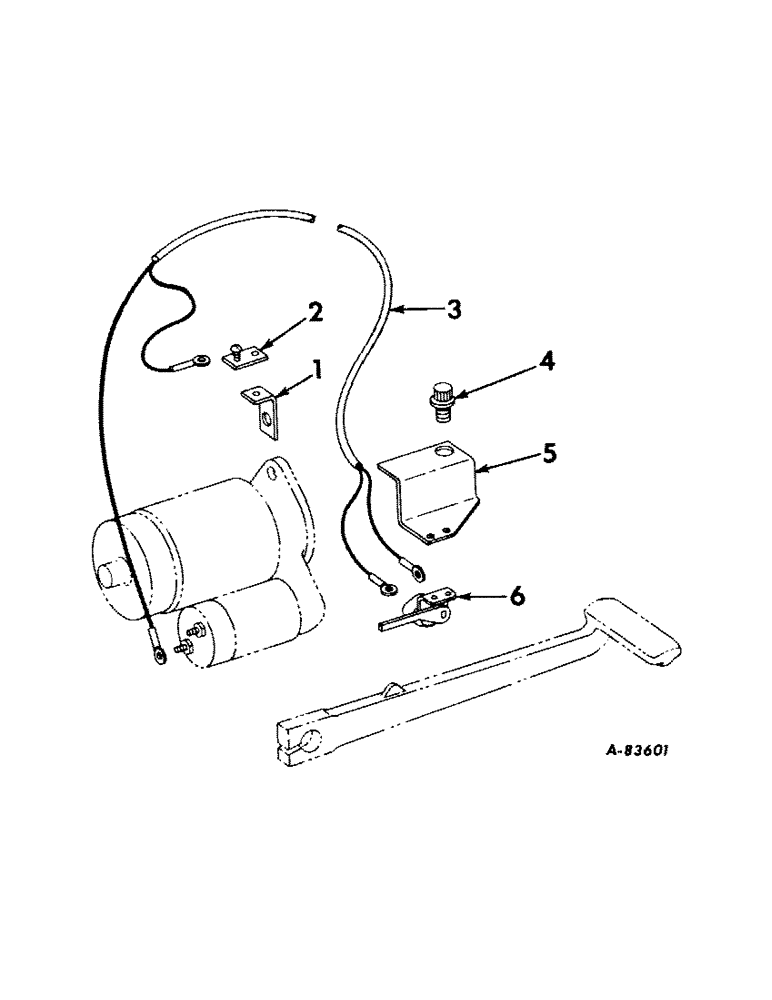

Схема запчастей Case IH 2424 - (079) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH (06) - ELECTRICAL SYSTEMS
6
1
2
3
4
5

Артикул

Название

Примечание

Количество

392266R91

PARTS ACCESSORY, safety starting switch, carbureted engine tractors

1шт.

392267R91

PARTS ACCESSORY, safety starting switch, diesel engine tractors

1шт.

1

392271R1

BRACKET, junction block, carbureted engine tractors

1шт.

1

42916D

BRACKET, junction block, diesel engine tractors

1шт.

2

42915D

BLOCK

junction

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

1шт.

3

392270R91

CABLE ASSY, safety starting switch

1шт.

4

392269R1

SCREW, 5/8-11 x 1 twelve-pt cap

1шт.

5

392268R1

BRACKET, safety starting switch

1шт.

451634

SCREW W/LOCKWASHER, 10-32 x 7/16 C-Z slt-fil-hd mach

2шт.

6

375477R91

SWITCH

ASSY, safety starting

1шт.

Выбрано товаров: 12
