Запчасти Case IH 2424 (068) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

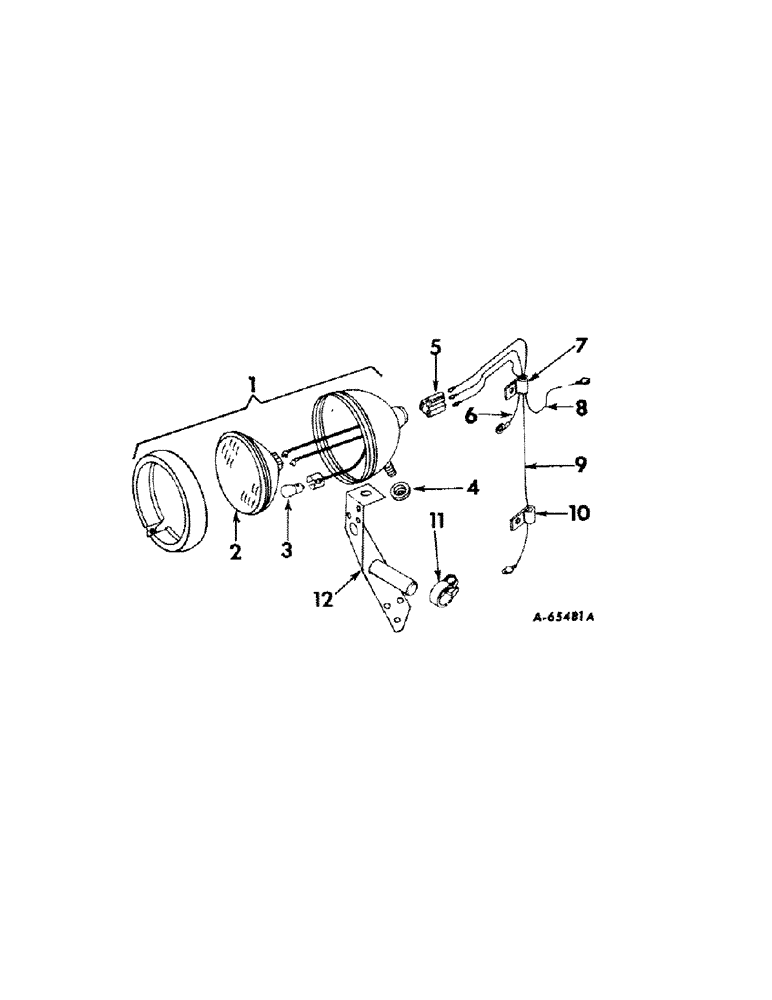

Схема запчастей Case IH 2424 - (068) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS
2
3
8
11
12
1
9
10
5
4
7
6

Артикул

Название

Примечание

Количество

390047R91

PARTS ACCESSORY, combination rear light and tail light, not used on tractors with backhoe

1шт.

1

377102R91

NO LONGER SERVICED

LIGHT ASSY, combination rear and tail

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

371461R91

LENS

UNIT, sealed beam

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

LAMP, no. 1003 12-volt

1шт.

4

365503R1

SPACER

rear light

1шт.

5

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

6

377120R92

CABLE ASSY, Serial Range: light-ground

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable

1шт.

8

390048R91

CABLE ASSY, rear light junction

1шт.

9

377115R91

CABLE ASSY, light to breakaway connector socket

1шт.

10

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

11

350920R1

CLAMP

rear light

1шт.

12

395518R1

BRACKET ASSY, combination & flasher light

1шт.

102635

NUT,3/8"-16, G5

3шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Выбрано товаров: 18
