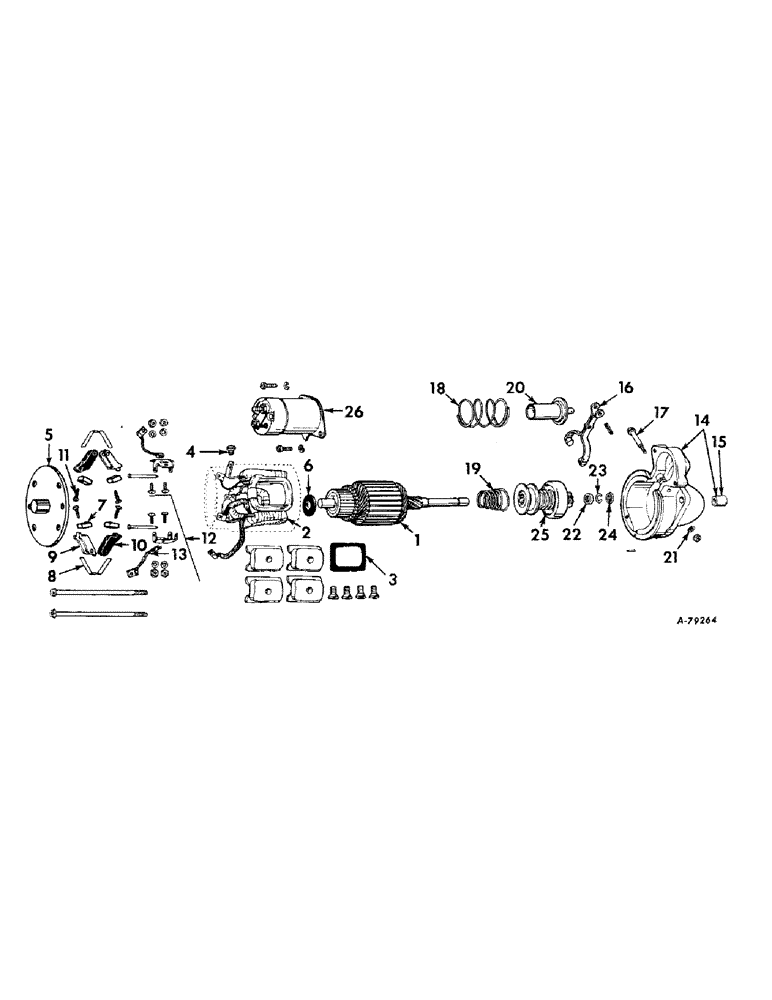

Запчасти Case IH 2424 (063) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1107364

MOTOR ASSY, cranking, 12 volt, order cranking motor, 1108323

1шт.

1108323

MOTOR ASSY, cranking, 396587R91, 12 volt

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

1958949

ARMATURE

1шт.

2

1933761

COIL ASSY, field, 4 coils

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1932198

GROMMET

in field frame, used w/cranking motor, 1107364

1шт.

4

1966391

GROMMET

in field frame, used w/cranking motor, 1108323

1шт.

5

1928966

FRAME

commutator end

1шт.

6

818265

WASHER

commutator end brake

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1940477

HOLDER

ground brush

2шт.

10

1926618

HOLDER

insulated brush

2шт.

11

1926648

SCREW, brush attaching, used w/cranking motor, 1107364

4шт.

11

1967747

SCREW

brush attaching, used w/cranking motor, 1108323

4шт.

12

1928015

BRACKET

PACKAGE, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

14

1965641

HOUSING ASSY, drive, used w/cranking motor, 1107364

1шт.

14

1968324

HOUSING

ASSY, drive, used w/cranking motor, 1108323

1шт.

15

1839345

BUSHING

drive end

1шт.

16

1951567

LEVER

shift

1шт.

17

1932197

SCREW

STUD, shift lever

1шт.

18

1958679

SPRING

plunger return

1шт.

19

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

20

1941113

PLUNGER

solenoid switch

1шт.

21

1953479

WASHER, shift lever stud sealing lock, used w/cranking motor, 1107364

1шт.

21

9421424

LOCK WASHER

shift lever stud sealing lock, used w/cranking motor, 1108323

1шт.

22

1928021

COLLAR

drive end pinion stop

1шт.

23

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

24

1838568

WASHER

drive end thrust, used w/cranking motor, 1107364

1шт.

24

1928023

WASHER

drive end thrust, used w/cranking motor, 1108323

1шт.

25

1946220

DRIVE

ASSY, motor, 1107364

1шт.

25

1952410

WALL

DRIVE ASSY, motor, used w/cranking motor, 1108323

1шт.

26

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

1952427

GASKET

between switch and housing

1шт.
