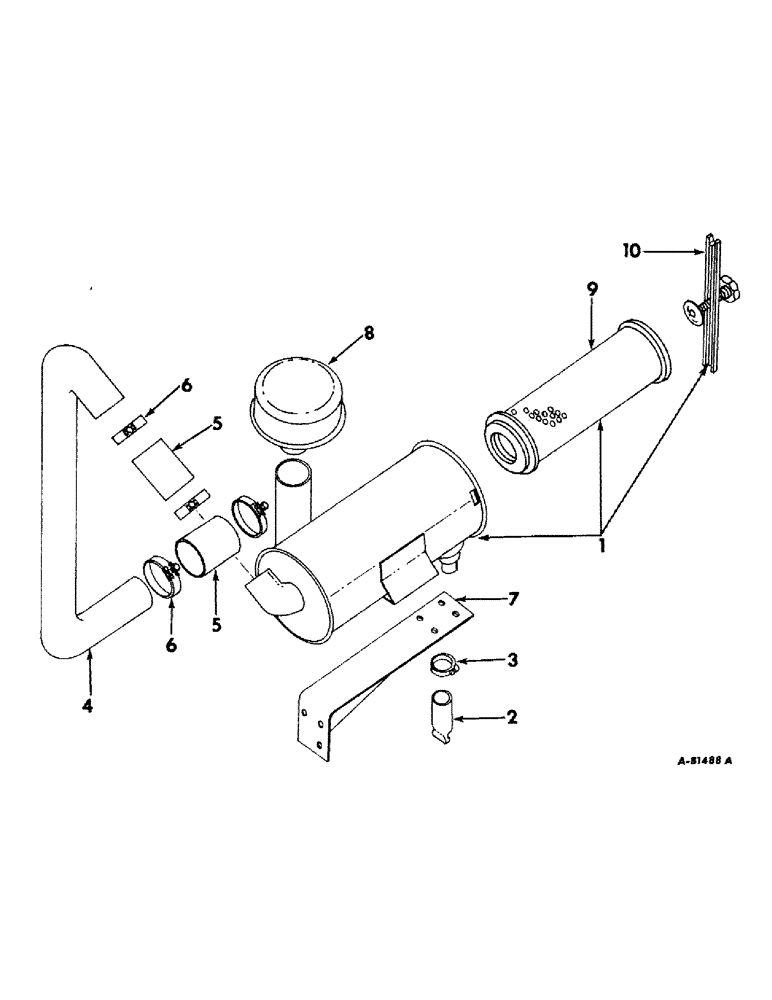

Запчасти Case IH 2424 (031) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

388471R91

CLEANER ASSY, air

1шт.

2

324194R1

GROMMET

UNLOADER, dust

1шт.

3

39107H

CLAMP, dust unloader

1шт.

4

388389R11

PIPE ASSY, air cleaner outlet

1шт.

103865

PLUG, 1/8 sq-hd pipe

1шт.

5

390862R1

HOSE, 1-5/8 id x 2-1/2 in. long, air cleaner connecting

2шт.

6

39156H

CLAMP

air cleaner hose

4шт.

7

388391R11

BRACKET ASY, air cleaner mounting

1шт.

103026

NUT,3/8"-24, G5

3шт.

181354

BOLT

SCREW, 3/8-24 x 1/2 hex-hd cap

4шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

8

353019R92

CYLINDER END CAP

CAP, air intake pipe

1шт.

9

391852R91

ELEMENT

ASSY, air cleaner

1шт.

10

391851R91

BAR

ASSY, retainer

1шт.
