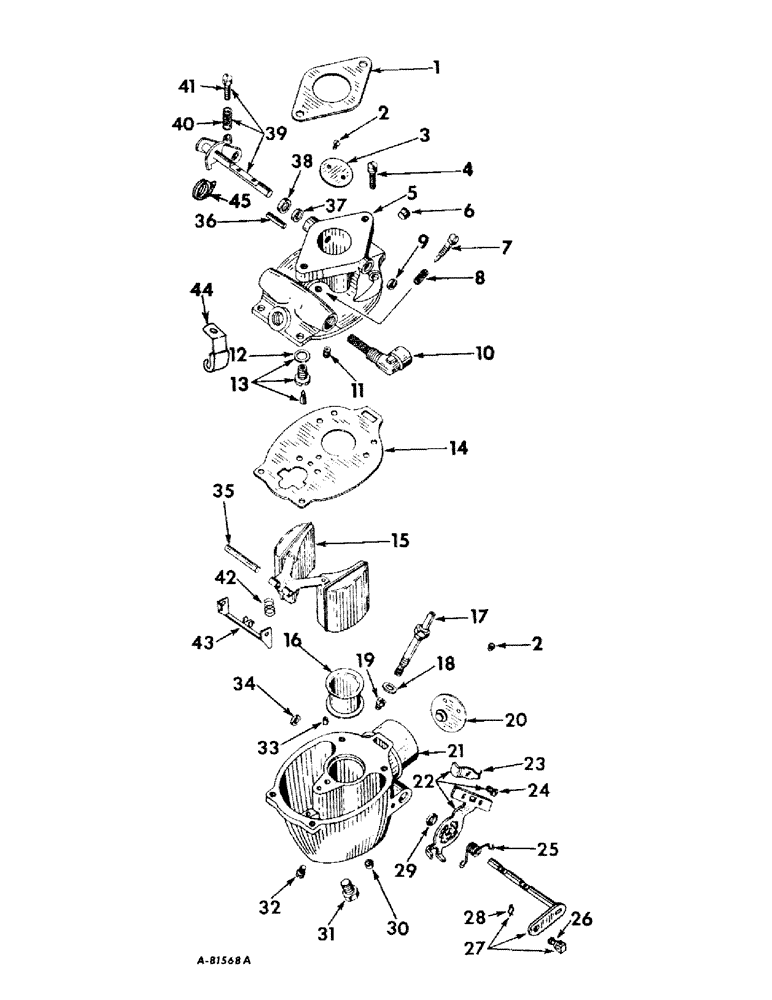

Запчасти Case IH 2424 (029) - FUEL SYSTEM, CARBURETOR, MARVEL, SCHEBLER MODEL TSX 896 (02) - FUEL SYSTEM

389683R93

CARBURETOR

ASSY.

1шт.

1

382116R1

GASKET

carburetor, note

1шт.

2

352701R91

SCREW

choke & throttle plate

4шт.

3

391677R1

PLATE, throttle, 18 deg

1шт.

4

19563R91

SCREW, Serial Range: body-bowl

4шт.

5

400824R91

BODY ASSY, throttle, will work for 391676R91, composed of (1) body (NSS), (1) cup 69930D, (1) packing 373390R1, (1) pin 376358R1, (1) plate 391677R1, (1) plug 373400R1, (1) retainer 69931D, (2) screw 352701R91, (1) shaft 373388R91

1шт.

50705D

STUD

carburetor mounting

2шт.

These parts not included in carburetor assy.

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

These parts not included in carburetor assy.

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

These parts not included in carburetor assy.

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

69923D

SCREW

idle adjusting

1шт.

8

69954D

SPRING

idle adjusting screw

1шт.

9

69930D

CUP

throttle shaft

1шт.

10

69938D

ELBOW

& SCREEN ASSY, gas inlet

1шт.

11

373378R1

JET

idling

1шт.

12

69950D

GASKET

float valve seat

1шт.

13

392096R91

VALVE

ASSY, float

1шт.

14

69952D

GASKET

throttle, Serial Range: body-bowl

1шт.

15

69919D

FLOAT

ASSY

1шт.

16

391680R1

VENTURI, 5/8 in.

1шт.

17

391699R1

NOZZLE, main

1шт.

18

373361R1

GASKET

main nozzle

1шт.

19

391700R1

JET, power

1шт.

20

391679R91

PLATE ASSY, choke

1шт.

21

391678R91

BOWL ASSY, fuel, composed of (1) bowl (NSS), (1) cup 69930D, (1) plug 373404R1, (1) vent 373384R1, (1) strainer 373387R1

1шт.

22

373372R91

BRACKET

ASSY, choke valve

1шт.

453666

SCREW W/SPRING LOCK WASHER, 8-32 slt-fil-hd mach

1шт.

23

373373R1

CLIP

choke valve bracket

1шт.

24

20832R91

SCREW, choke valve bracket clip

1шт.

25

373369R1

SPRING

choke return

1шт.

26

373405R1

PIVOT

SWIVEL, choke shaft

1шт.

455956

SCREW, 8-32 x 5/16 C-Z slt-hex-hd mach

1шт.

27

373366R91

LEVER

SHAFT ASSY, choke

1шт.

28

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

29

69924D

PACKING

choke shaft

1шт.

30

373387R1

FILTER

STRAINER, bowl

1шт.

31

69940D

PLUG

drain

1шт.

32

373404R1

PLUG

power jet drilling

1шт.

33

373384R1

VENT, well

1шт.

34

69930D

CUP

choke shaft

1шт.

35

69920D

SHAFT

AXLE, float

1шт.

36

376358R1

PIN, throttle stop

1шт.

37

373390R1

PACKING

throttle

1шт.

38

69931D

RETAINER

throttle shaft packing

1шт.

39

373388R91

LEVER

SHAFT ASSY, throttle

1шт.

40

69953D

SPRING

throttle stop screw

1шт.

41

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

throttle stop

1шт.

42

381964R1

SPRING

float support

1шт.

43

381965R1

SUPPORT

BRACKET, float support sprint

1шт.

44

370535R1

CLIP

solenoid wire

1шт.

45

399150R1

SPRING, throttle torsion

1шт.

373359R91

GASKET

SET, carburetor, consists of (1) gasket 69950D, (1) gasket 373361R1, (1) gasket 69952D

1шт.

389679R93

VALVE

SHUT-OFF ASSY, fuel solenoid

1шт.

These parts not included in carburetor assy.

1шт.
