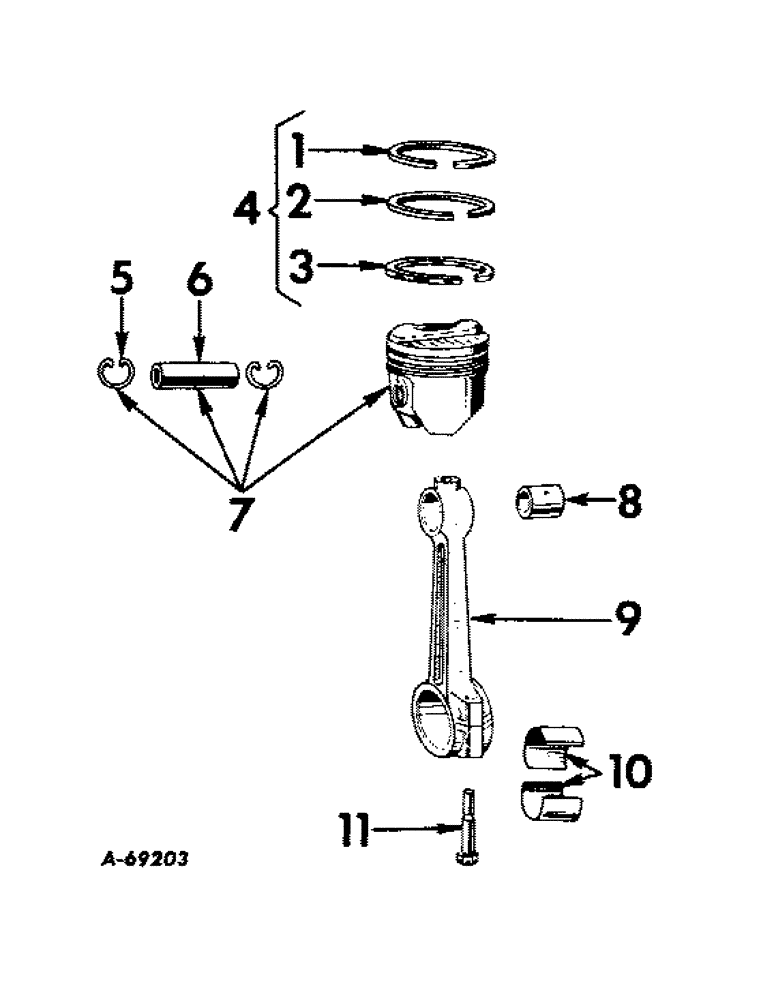

Запчасти Case IH 2424 (015) - CARBURETED ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE

1

359657R1

OIL SEAL

RING, compression piston, chrome, top or first groove, standard & .010 oversize

4шт.

1

375814R1

RING, compression piston, chrome, top of first groove, oversize

4шт.

1

378262R1

RING, compression piston, chrome, top or first groove, oversize

4шт.

1

375842R1

RING, compression piston, chrome, top of first groove, .040 oversize

4шт.

2

375810R1

OIL SEAL

RING, compression, chrome, second groove, standard & .010 oversize

4шт.

2

375815R1

OIL SEAL

RING, compression, chrome, second groove, .020 oversize

4шт.

2

378263R1

OIL SEAL

RING, compression, chrome, second groove, .030 oversize

4шт.

2

375843R1

RING, compression, chrome, second groove, .040 oversize

4шт.

3

388351R91

OIL SEAL

RING, oil regulating piston, third or bottom groove, standard and .010 oversize

4шт.

3

388352R91

OIL SEAL

RING, oil regulating piston, third or bottom groove, .020 oversize

4шт.

3

388352R91

OIL SEAL

RING, oil regulating piston, third or bottom groove, .030 oversize

4шт.

3

388353R91

RING, oil regulating piston, third or bottom groove, .040 oversize

4шт.

4

375845R92

RING

SET, piston, consists of eight compression and four oil regulating rings, standard and .010 oversize

1шт.

4

375846R92

KIT

RING SET, piston, consists of eight compression and four oil regulating rings, .020 undersize

1шт.

4

378267R92

KIT

RING SET, piston, consists of eight compression and four oil regulating rings, .030 undersize

1шт.

4

375847R92

PISTON RING SET

RING SET, piston, consists of eight compression and four oil regulating rings, .040 oversize

1шт.

5

367798R1

RING, PISTON

pin retaining

8шт.

6

367797R1

PIN,21.83mm OD x 69.93mm L

piston, standard

4шт.

6

367862R1

PIN

piston, .005 oversize

4шт.

7

388558R91

PISTON

ASSEMBLY, standard

4шт.

7

388559R91

PISTON ASSEMBLY, .010 oversize

4шт.

7

388560R91

PISTON

ASSEMBLY, .020 oversize

4шт.

7

388561R91

PISTON

ASSEMBLY, .030 oversize

4шт.

7

388562R91

PISTON ASSEMBLY, .040 oversize

4шт.

7

388568R91

PISTON ASSEMBLY, high altitude, standard

4шт.

7

388569R91

PISTON ASSEMBLY, high altitude, .010 oversize

4шт.

7

388570R91

PISTON ASSEMBLY, high altitude, .020 oversize

4шт.

7

388571R91

PISTON ASSEMBLY, high altitude, .030 oversize

4шт.

7

388572R91

PISTON ASSEMBLY, high altitude, .040 oversize

4шт.

8

367775R1

BUSHING,21.36mm ID x 23.36mm OD x 29.97mm L

connecting rod

4шт.

9

375595R11

ROD

W/TWO BOLTS, 375732R1 and bushing, 367775R1, connecting

4шт.

10

375723R11

BEARING LINER

BEARING ASSEMBLY, connecting rod, 2 halves, standard

4шт.

10

375725R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .002 undersize

4шт.

10

376656R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .010 undersize

4шт.

10

376658R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .020 undersize

4шт.

10

375724R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod, 2 halves, .030 undersize

4шт.

10

375730R91

BEARING SET

connecting rod, standard, consists of four bearings, 375723R11

1шт.

10

377273R91

SET

BEARING SET, connecting rod., .002 undersize, consists of four bearings, 375725R11

1шт.

10

376655R91

BEARING SET

connecting rod, .010 undersize, consists of four bearings 376656R11

1шт.

10

376657R91

BEARING SET

connecting rod, .020 undersize, consists of four bearings, 376658R11

1шт.

10

375731R91

BEARING SET

connecting rod, .030 undersize, consists of four bearings, 375524R11

1шт.

11

375732R1

BOLT,Hex, 3/8" - 24 x 2"

connecting rod

8шт.
