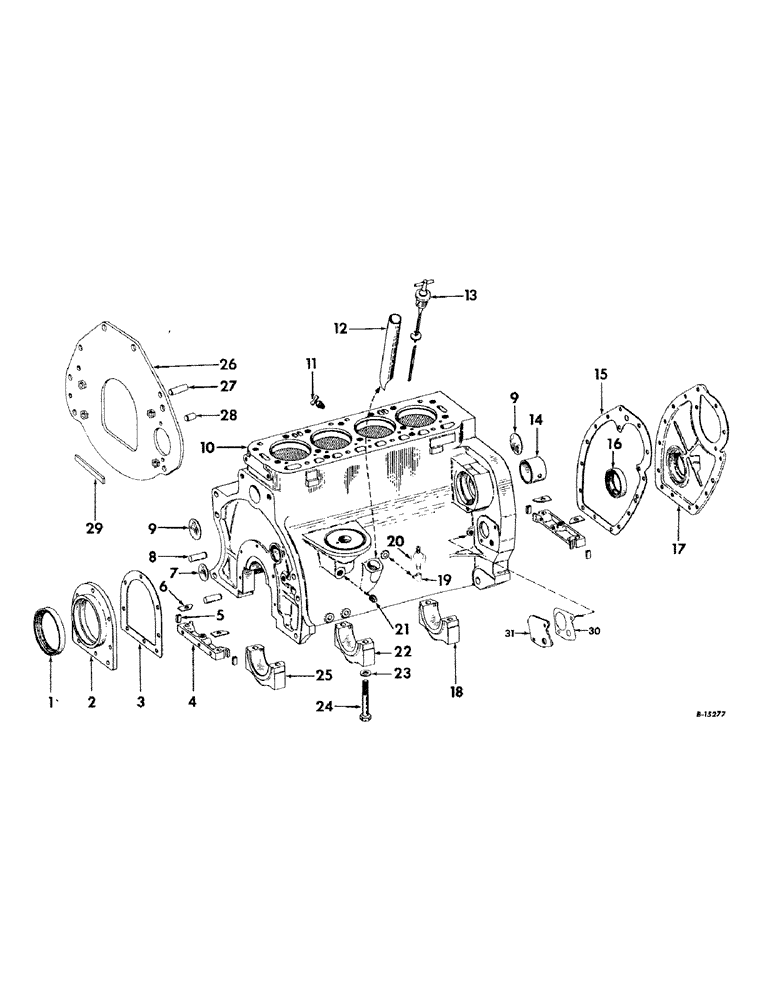

Запчасти Case IH 2424 (014) - CARBURETED ENGINE, CRANKCASE AND RELATED PARTS (01) - ENGINE

1

378040R91

PACKING RING

SEAL, crankshaft rear oil

1шт.

2

377996R2

HUB

RETAINER, crankshaft rear oil seal

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

377997R1

GASKET

crankshaft rear oil seal retainer

1шт.

4

6100DA

SUPPORT ASSY.

PLATE, crankshaft front and rear oil seal retainer

2шт.

5

43445DA

PAD

PLUG, crankshaft oil seal retainer plate felt

4шт.

6

43446DA

GASKET,1.29mm Thk

crankshaft oil seal retainer plate

4шт.

7

172576

PLUG,Exp, 1 5/8"

1-5/8 expansion, camshaft rear

1шт.

8

357232R1

PIN

DOWEL, rear support plate

1шт.

9

63556R1

PLUG

2 in. expansion, crankshaft core

1шт.

10

388575R21

1шт.

CRANKCASE ASSEMBLY, composed of, (6) bolt 70133R1, (1) bushing 43439DBR, (1) bushing 375747R1, (2) cap 375598R1 (NSS), (1) cap 375599R1 (NSS), (1) cock 103647, (1) crankcase 388575R2 (NSS), (1) dowel 357232R1, (5) plug 70128R1, (3) plug 143997, (1) plug 172576, (1) plug 172592, (2) plug 50410DA, (1) sleeve 368985R2 (6) washer 58516H

1шт.

143997

PLUG

1/4 sq-soc pipe

3шт.

70128R1

PLUG,Cup, 1 5/8"

core hole

5шт.

50410DA

PLUG

oil header

2шт.

11

103647

VALVE

COCK, water drain

1шт.

12

368985R2

TUBE

SLEEVE, oil level gauge

1шт.

13

375792R91

GAUGE

ASSEMBLY, oil level

1шт.

14

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

distributor gear

1шт.

15

46179DC

GASKET

crankcase front cover

1шт.

16

378193R91

SEAL

W/RING, crankcase front cover oil

1шт.

17

46122DDX

COVER

ASSEMBLY, crankcase front

1шт.

179814

SPACER

10шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

10шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

18

NSS

NOT SOLD SEPARAT

CAP, crankshaft front bearing, not serviced separately order crankcase assembly

1шт.

19

444163

ELBOW

1/8 street, oil pressure switch mounting

1шт.

20

392249R92

SWITCH

oil pressure

1шт.

NOT A VERY CLEAR PICTURE BUT THIS IS A OIL PRESSURE SENDING UNIT, USE SAME ON DIESEL ENGINE

1шт.

21

9617020

PLUG,1/4" - 18 x 0.48"

1/4 sq-hd pipe

1шт.

22

NSS

NOT SOLD SEPARAT

CAP, crankshaft center bearing, not serviced separately order crankcase assembly

1шт.

23

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

6шт.

24

70133R1

BOLT

BOLT, crankshaft bearing cap

6шт.

25

NSS

NOT SOLD SEPARAT

CAP, crankshaft rear bearing, not serviced separately order crankcase assembly

1шт.

26

388582R11

SUPPORT ASSY, engine rear

1шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

SCREW, 1/2-20 x 1-3/4 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

141289

PIN, 1/2 x 1-3/4 dowel, engine support to clutch housing and crankcase

1шт.

28

NLS

NO LONGER SERVICED

PIN, 1/2 x 1 dowel, engine support to clutch housing

1шт.

29

388583R1

SEAL, engine rear support dust

1шт.

30

350708R1

GASKET

hyd pump pad cover, tractors w/o hyd power supply

1шт.

31

251067R1

COVER

hyd power supply

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

379620R92

GASKET

PACKAGE, crankcase front cover seal and gasket, consists of (1) gasket 46179DC, (1) gasket 43294D, (1) gasket 46871D, (1) gasket 45875D, (1) gasket 375745R1, (1) oil seal 375745R1, (1) oil seal pkg 378193R91

1шт.

379619R91

PACKAGE

rear main bearing seal and gasket, consists of (2) gasket 43446DA, (1) gasket 377997R1, (1) oil seal 378040R91, (2) plug 43445DA

1шт.
