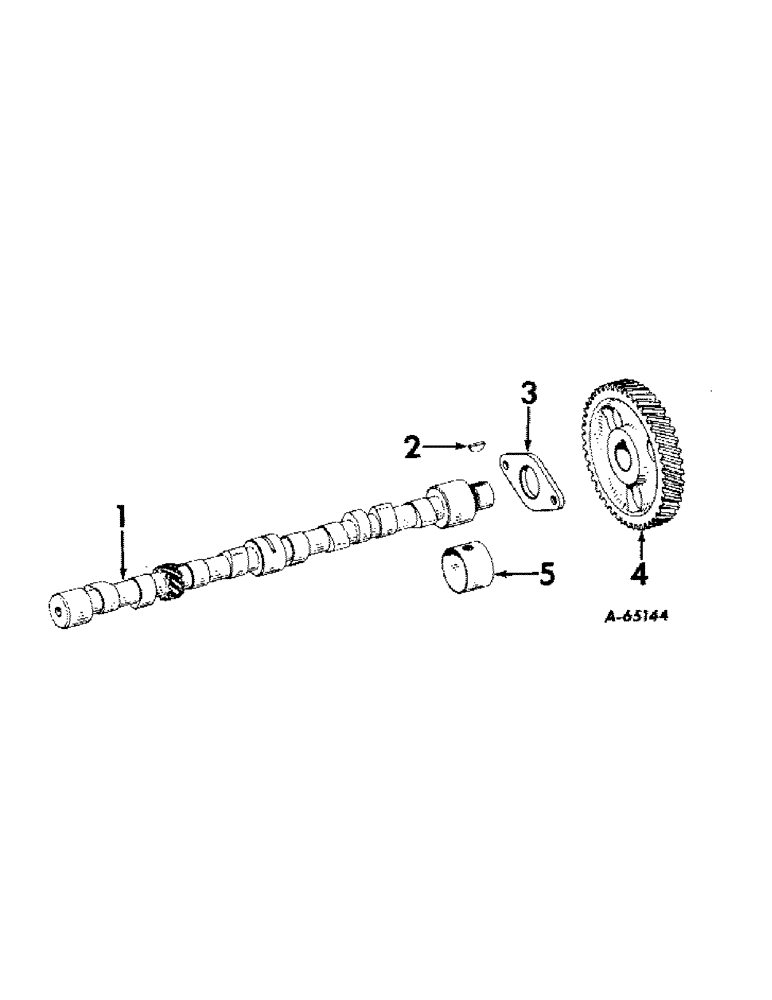

Запчасти Case IH 2424 (013) - CARBURETED ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

353609R31

CAMSHAFT

ASSEMBLY

1шт.

2

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY, 1/4 x 3/4 Woodruff 91, camshaft gear

1шт.

3

43249D

PLATE

camshaft thrust, optional with 374704R1

1шт.

3

374704R1

PLATE ASSY.

PLATE, camshaft thrust, optional with 43249D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

375712R1

GEAR

camshaft, 66 teeth

1шт.

5

375747R1

BUSHING,46.19mm ID x 49.45mm OD x 30.43mm L

camshaft front

1шт.
