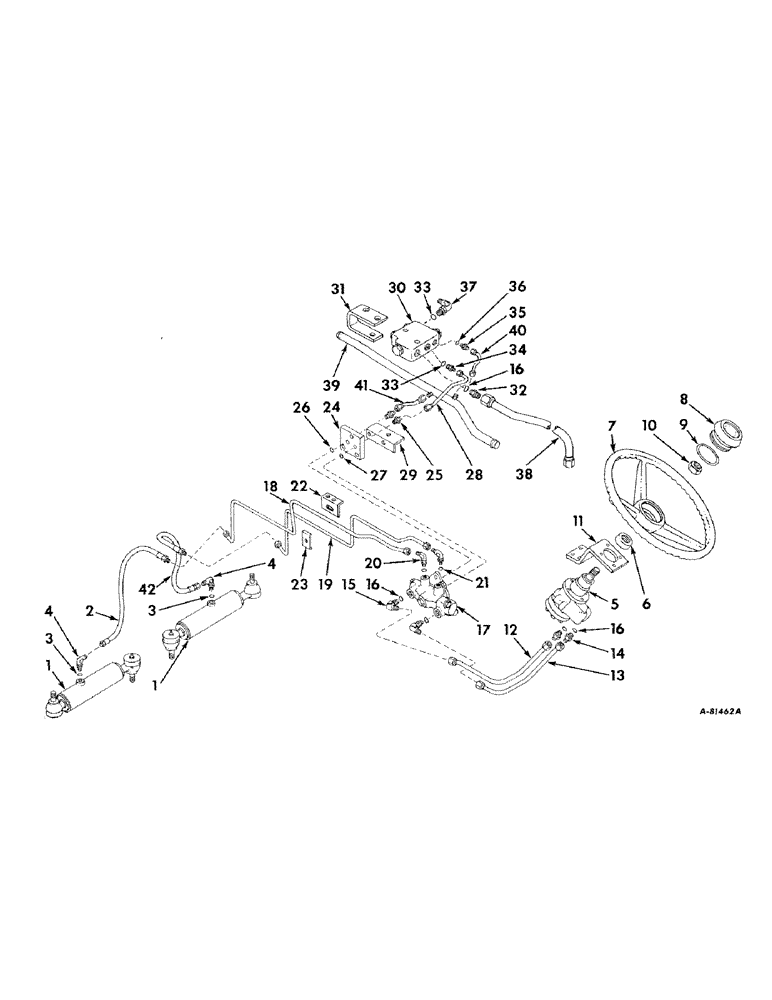

Запчасти Case IH 2424 (105) - STEERING MECHANISM, POWER STEERING Steering Mechanism

1

389389R91

CYLINDER ASSY, power steering, for components see list of parts under details of power steering cylinder

1шт.

374548R1

SLOTTED NUT

actuating cyl

4шт.

32-822

COTTER PIN,1/8" x 1 3/8"

PIN, split (Cotter), 1/8" x 1-3/8"

4шт.

2

391807R91

HOSE

ASSY, power steering LH cyl

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

5

389397R91

PUMP

ASSY, power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

6

226032R1

SEAL

dust

1шт.

7

385156R1

WHEEL (STEERING)

WHEEL, 16 in dia steering

1шт.

7

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

8

378395R1

CAP

steering wheel

1шт.

9

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

10

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

11

388870R1

BRACKET, hand pump support

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

388871R11

PIPE ASSY, valve to hand pump

1шт.

13

388872R11

PIPE ASSY, valve to hand pump

1шт.

14

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube adj str thd 90 deg

2шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64

5шт.

17

385131R92

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

18

388873R11

TUBE

PIPE ASSY, front power steering

1шт.

19

388874R11

TUBE

PIPE ASSY, front power steering

1шт.

20

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

22

388875R1

BRACKET ASSY, pipe

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

23

389503R1

CLAMP, pipe bracket

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

388877R1

PLATE, manifold

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

102635

NUT,3/8"-16, G5

2шт.

25

9402682

CONNECTOR, ELEC

CONNECTOR, 9/16-18 37 deg hyd flared tube

2шт.

26

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

27

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

28

389516R11

PIPE ASSY, flow divider to steering valve

1шт.

29

388880R1

BRACKET, pilot valve

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

389412R91

FLOW DIVIDER ASSY, for components see list of parts under details of flow divider valve

1шт.

31

389520R1

BRACKET, flow divider mounting

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

148115

SCREW, 5/16-24 x 2-1/4 cr-rec-pan-hd mach

2шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

394828R1

CONNECTOR, flow divider to hitch pressure pipe

1шт.

33

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

34

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, flow divider to steering valve pipe

1шт.

35

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

1шт.

38

389519R11

PIPE ASSY, flow, Serial Range: divider-hitch

1шт.

39

389521R11

PIPE ASSY, suction

1шт.

40

389518R11

PIPE ASSY, flow divider to suction pipe

1шт.

41

389517R11

PIPE ASSY, steering valve to suction pipe

1шт.

42

389504R91

HOSE

ASSY, power steering RH cyl

1шт.
