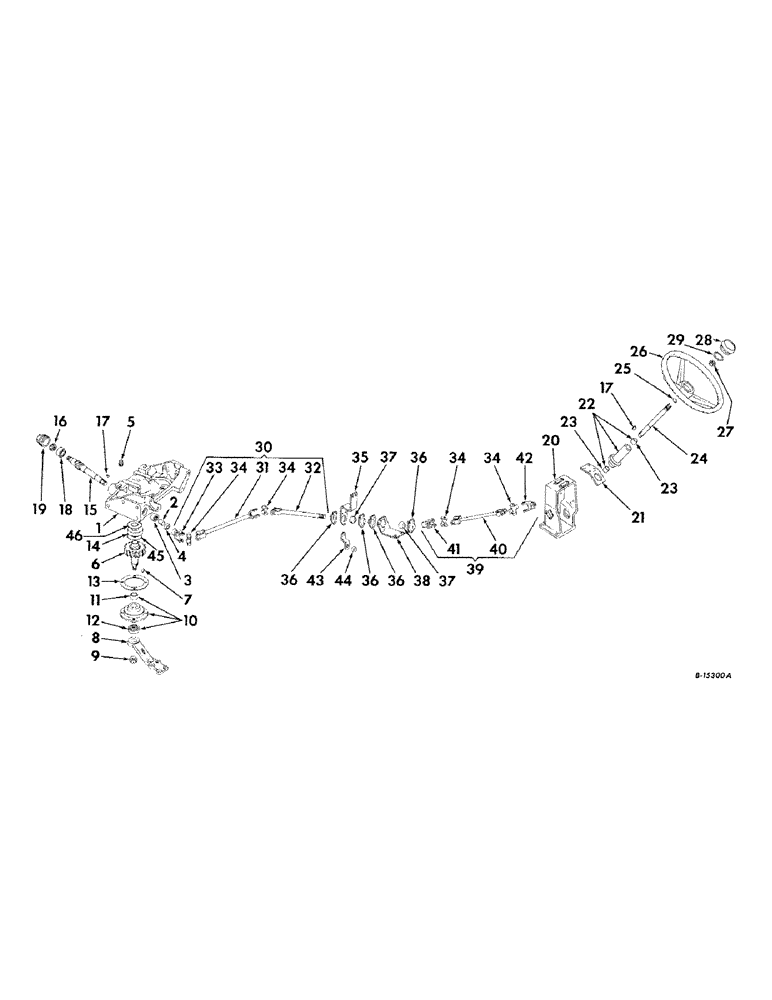

Запчасти Case IH 2424 (103) - STEERING MECHANISM, STEERING MECHANISM Steering Mechanism

1

388474R11

BOLSTER ASSY, front, gasoline engine tractors, composed of (1) bearing 375705R91, (1) bolster 388474R1 (NSS), (1) bushing 375592R1, (1) oil seal 381721R91, (1) plug 444576, (1) plug 444660, (1) plug 356568R1

1шт.

Tractors without power steering.

1шт.

1

388864R91

BOLSTER ASSY, front, gasoline engine tractors, composed of (1) bolster 388474R1 (NSS), (1) plug 172574, (1) plug (6660DA), (1) plug 444576, (1) plug 444660, (1) plug 356568R1

1шт.

Tractors with power steering.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

3шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

3шт.

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion

1шт.

Tractors with power steering.

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc-hd pipe

1шт.

446220

WASHER

1/2 x 1-1/8 x .083

1шт.

1

388475R21

BOLSTER ASSY, front, diesel engine tractors, composed of (1) bearing 375705R91, (1) bolster 388475R2 (NSS), (1) bushing 375592R1, (1) oil seal 381721R91, (1) plug 444576, (1) plug 444660, (1) plug 356568R1

1шт.

Tractors without power steering.

1шт.

1

388862R92

BOLSTER ASSY, front, diesel engine tractors, composed of (1) bolster 388475R2 (NSS), (1) plug 6660DA, (1) plug 172574, (1) plug 444576, (1) plug 444660, (1) plug 356568R1

1шт.

Tractors with power steering.

1шт.

172574

PLUG,Exp, 1 1/2"

1-1/2 in. expansion

1шт.

Tractors with power steering.

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc-hd pipe

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 4 hex-hd cap

1шт.

49952D

STUD, front bolster

1шт.

274468

HAMMER

NUT, 5/8-18 hex

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

446220

WASHER

1/2 x 1-1/8 x .083

1шт.

2

375592R1

BUSHING

steering worm

1шт.

Tractors without power steering.

1шт.

3

375705R91

NEEDLE BEARING

steering worm shaft

1шт.

Tractors without power steering.

1шт.

4

381721R91

OIL SEAL

steering worm shaft oil

1шт.

Tractors without power steering.

1шт.

5

356568R1

PLUG, steering gear housing vent

1шт.

Tractors without power steering.

1шт.

6

379150R1

GEAR, steering worm, 25T

1шт.

Tractors without power steering.

1шт.

6

388869R1

SHAFT

steering arm

1шт.

Tractors with power steering.

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

7

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 Woodruff A, steering worm gear

1шт.

Tractors without power steering.

1шт.

8

376349R1

ARM, steering gear

1шт.

Tractors without power steering.

1шт.

8

377188R2

ARM, steering gear

1шт.

Tractors with power steering.

1шт.

9

70121D

NUT

steering gear arm

1шт.

10

369699R11

CAGE ASSY, steering worm gear

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hed cap

3шт.

376107R1

BOLT,Hex, 7/16" - 14 x 1 1/4", W/ Nylon Pellet

SCREW, 7/16-14 x 1-1/4 hex-hd cap, in hole on left side

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11

369700R1

BUSHING

steering worm gear cage

1шт.

12

372370R91

SEAL

steering worm gear cage oil

1шт.

13

52951D

GASKET

steering worm wheel shaft lower brg cage

1шт.

14

369702R1

BUSHING

ADAPTER, steering worm gear shaft upper brg

1шт.

15

379149R1

WORM, steering

1шт.

Tractors without power steering.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

16

69442D

NUT

steering worm

1шт.

Tractors without power steering.

1шт.

17

103462

KEY

3/16 x 1 Woodruff 13

2шт.

Tractors without power steering.

1шт.

18

ST678

BALL BEARING,25mm ID x 52mm OD x 15mm W

BEARING, steering worm ball

1шт.

Tractors without power steering.

1шт.

19

6660DA

BEARING CAP

steering worm brg

1шт.

Tractors without power steering.

1шт.

20

388661R1

SUPPORT, fuel tank and steering

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 hex-hd cap

3шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

388662R1

BRACKET, upper steering shaft support

1шт.

Tractors without power steering.

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

22

378698R91

SUPPORT ASSY, rear steering shaft upper

1шт.

Tractors without power steering.

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

23

378699R1

BUSHING,22.25mm ID x 25.43mm OD x 22.35mm L

BEARING, rear steering shaft upper, support

2шт.

Tractors without power steering.

1шт.

24

388663R1

SHAFT, rear steering wheel

1шт.

Tractors without power steering.

1шт.

615191R1

WASHER

29/32 x 1-1/4 x 16 ga

2шт.

25

454331R1

SNAP RING,#87, Ext

2шт.

Tractors without power steering.

1шт.

26

366557R2

STEERING WHEEL

WHEEL, 18 in dia. steering

1шт.

Tractors without power steering.

1шт.

26

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia. steering

1шт.

26

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

Tractors with power steering.

1шт.

27

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

28

378394R1

CAP

steering wheel

1шт.

Tractors without power steering.

1шт.

28

378395R1

CAP

steering wheel

1шт.

Tractors with power steering.

1шт.

29

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

30

388664R91

JOINT ASSY, front and center steering and universal

1шт.

Tractors without power steering.

1шт.

31

388665R91

JOINT ASSY, front steering

1шт.

Tractors without power steering.

1шт.

32

388667R91

JOINT ASSY, center steering

1шт.

Tractors without power steering.

1шт.

33

350256R1

YOKE

front steering shaft universal joint

1шт.

Tractors without power steering.

1шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

34

150635R92

SPIDER

BEARING & SPIDER ASSY, steering shaft

4шт.

Tractors without power steering.

1шт.

35

388669R1

BRACKET, bearing support

1шт.

Tractors without power steering.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

36

369663R1

RETAINER

steering shaft front bearing

4шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

5шт.

109084

NUT,1/4"-20, G5

6шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

37

369661R1

SPHERICAL BEARING,0.881" ID x 1.25"

BEARING, steering shaft

2шт.

Tractors without power steering.

1шт.

38

388670R1

BRACKET, rear bearing support

1шт.

Tractors without power steering.

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

39

388673R91

JOINT ASSY, rear steering

1шт.

Tractors without power steering.

1шт.

40

388671R91

JOINT ASSY, rear steering

1шт.

Tractors without power steering.

1шт.

41

373087R1

YOKE

rear universal joint spline

1шт.

Tractors without power steering.

1шт.

42

350256R1

YOKE

rear universal joint

1шт.

43

391049R1

BRACKET, front bearing support anchor

1шт.

Tractors without power steering.

1шт.

44

391050R1

SPACER, front bearing support anchor bracket, gasoline engine tractors

1шт.

Tractors without power steering.

1шт.

45

393100R1

SHIM

steering worm gear lower, .021

1шт.

45

393101R1

WASHER

SHIM, steering worm gear lower, .033

1шт.

46

393102R1

SHIM

worm gear upper, .008

1шт.
