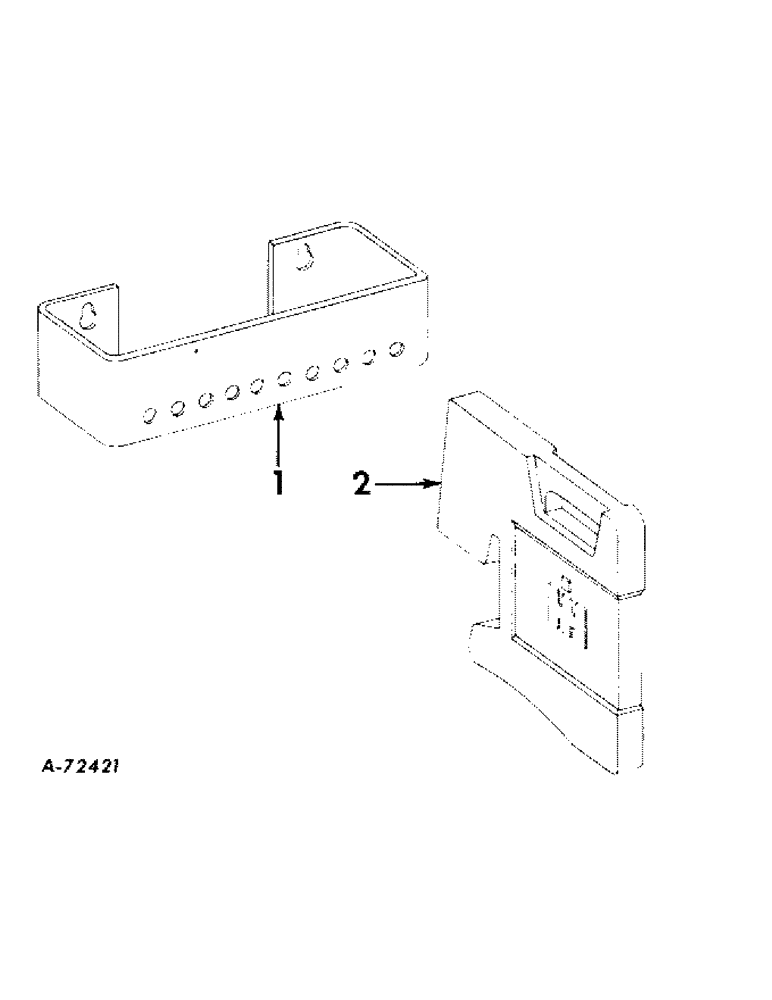

Запчасти Case IH 2424 (165) - MISCELLANEOUS EQUIPMENT, FRONT END WEIGHT BRACKET AND WEIGHTS Miscellaneous Equipment

383388R91

PARTS ACCESSORY, front end weight mounting bracket, also order weight & mounting parts desired

1шт.

1

383389R11

BRACKET

ASSY, weight mounting

1шт.

271610

SCREW, 3/4-10 x 1-7/8 hex-hd cap

4шт.

2

383392R1

WEIGHT

front end, 67 lbs

1шт.

2

383393R1

WEIGHT

front end, 100 lbs

1шт.

2753449R1

PRODUCT GRAPHIC, crank position, for 48 in. narrow tread rear axle

1шт.

2753469R1

PRODUCT GRAPHIC

flashing warning light (NSS)

1шт.

2750839R1

DECAL

PRODUCT GRAPHIC, lighting switch

1шт.

2753413R1

PRODUCT GRAPHIC

safety & operating instructions

1шт.

381738R91

GASKET

SET, crankcase, carbureted engine, consists of

1шт.

375783R1

GASKET

BREATHER PIPE FLANGE GASKET

1шт.

46179DC

GASKET

CRANKCASE FRONT COVER GASKET

1шт.

43445DA

PAD

CRANKCASE OIL SEAL RETAINER PLATE FELT

4шт.

43446DA

GASKET,1.29mm Thk

CRANKSHAFT OIL SEAL RETAINER PLATE GASKET

4шт.

378040R91

PACKING RING

CRANKSHAFT REAR OIL SEAL

1шт.

377997R1

GASKET

CRANKSHAFT REAR OIL SEAL RETAINER GASKET

1шт.

46168DB

GASKET

DISTRIBUTOR DRIVE HOUSING GASKET

1шт.

49124D

GASKET

FUEL PUMP GASKET

1шт.

45875D

GASKET

GOVERNOR HOUSING GASKET

1шт.

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

GOVERNOR ROCKSHAFT FELT SEAL

1шт.

149345R91

OIL SEAL

GOVERNOR SPEED CHANGE LEVER SHAFT OIL SEAL

1шт.

13728D

GASKET

OIL FILTER CASE GASKET

1шт.

43458DB

GASKET

OIL PAN GASKET

1шт.

375786R1

GASKET

OIL PUMP BODY COVER GASKET

2шт.

367687R1

GASKET

WATER PUMP BODY GASKET

1шт.

375743R1

GASKET

WATER PUMP BODY GASKET

1шт.

375745R1

GASKET

WATER PUMP PLATE GASKET

1шт.

375866R93

PACKAGE

GASKET SET, valve grinding, carbureted engine, consists of

1шт.

382116R1

GASKET

CARBURETOR GASKET

1шт.

31336D

GASKET

CARBURETOR TO MANIFOLD GASKET

1шт.

383525R2

KIT

CYLINDER HEAD GASKET

1шт.

352014R3

GASKET

EXHAUST AND INTAKE MANIFOLD GASKET

2шт.

43294D

GASKET

FAN BRACKET GASKET

1шт.

43378DD

GASKET

VALVE HOUSING GASKET

1шт.

62866D

WASHER,5/64" Thk x 13/32" ID

VALVE HOUSING STUD NUT

1шт.

3041249R92

GASKET KIT

GASKET SET, crankcase, diesel engine, consists of

1шт.

708285R1

GASKET

CRANKCASE FRONT COVER GASKET

1шт.

709903R1

GASKET

CRANKCASE FRONT PLATE GASKET

1шт.

703840R1

GASKET

CRANKCASE OIL PAN GASKET

1шт.

708907R1

GASKET

CRANKSHAFT REAR OIL SEAL RETAINER GASKET

1шт.

703883R6

GASKET

CYLINDER HEAD GASKET

1шт.

704165R2

MANIFOLD GASKET

EXHAUST MANIFOLD GASKET

2шт.

3043370R1

GASKET

FUEL FEED PUMP GASKET

1шт.

3061658R1

GASKET

FUEL FEED PUMP GASKET

1шт.

703851R1

GASKET

HYDRAULIC PUMP OPENING COVER GASKET

1шт.

708289R1

BOLT

INJECTION PUMP GASKET

1шт.

703849R1

GASKET

INJECTION PUMP GEAR COVER GASKET

1шт.

704162R1

MANIFOLD GASKET

INTAKE MANIFOLD GASKET

2шт.

706592R1

GASKET

OIL FILTER BASE GASKET

1шт.

3405H

GASKET

OIL PAN DRAIN PLUG GASKET

1шт.

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

PRE-COMBUSTION CHAMBER GASKET UPPER

4шт.

710383R1

GASKET

PRE-COMBUSTION CHAMBER GASKET LOWER

4шт.

703815R1

GASKET

THERMOSTAT HOUSING GASKET

1шт.

703896R1

GASKET

VALVE COVER GASKET

1шт.

703816R1

GASKET

WATER PUMP GASKET

1шт.

706105R93

GASKET KIT

GASKET SET, valve grinding, diesel engine, consists of

1шт.

703883R6

GASKET

CYLINDER HEAD GASKET

1шт.

704165R2

MANIFOLD GASKET

EXHAUST MANIFOLD GASKET

2шт.

704162R1

MANIFOLD GASKET

INTAKE MANIFOLD GASKET

2шт.

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

PRE-COMBUSTION CHAMBER GASKET UPPER

4шт.

710383R1

GASKET

PRE-COMBUSTION CHAMBER GASKET LOWER

4шт.

703815R1

GASKET

THERMOSTAT HOUSING GASKET

1шт.

703896R1

GASKET

VALVE COVER GASKET

1шт.
