(052[A]) - LUBRICATION SYSTEM, LUBRICATING OIL FILTER, GASOLINE ENGINE TRACTORS

Запчасти Case IH 2424 (052[A]) - LUBRICATION SYSTEM, LUBRICATING OIL FILTER, GASOLINE ENGINE TRACTORS Lubrication System

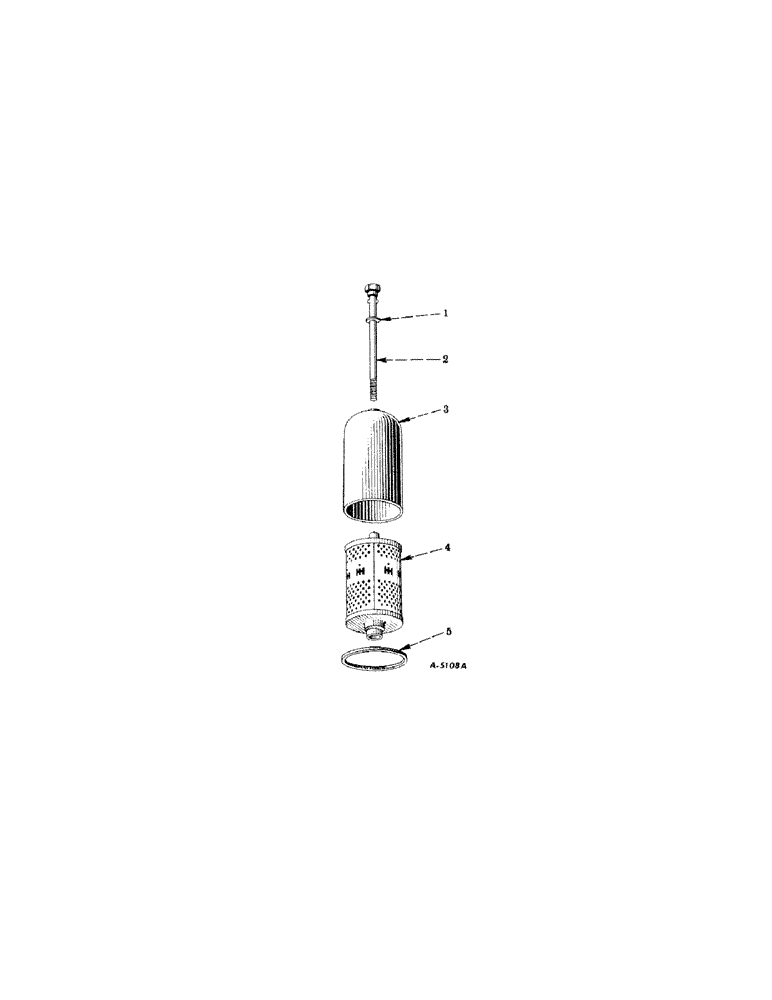

Схема запчастей Case IH 2424 - (052[A]) - LUBRICATION SYSTEM, LUBRICATING OIL FILTER, GASOLINE ENGINE TRACTORS Lubrication System
2
5
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13727D

GASKET

GASKET, oil filter case retaining bolt

1шт.

2

63857DA

BOLT

oil filter case retaining

1шт.

3

63856D

CASE

oil filter

1шт.

4

376374R91

FILTER, ENGINE OIL

ELEMENT, oil filter

1шт.

4

376374R91GV

FILTER

Value, Oil Filter

1шт.

5

13728D

GASKET

oil filter case

1шт.
