Запчасти Case IH 2424 (046) - GOVERNOR, GASOLINE ENGINE TRACTORS Governor

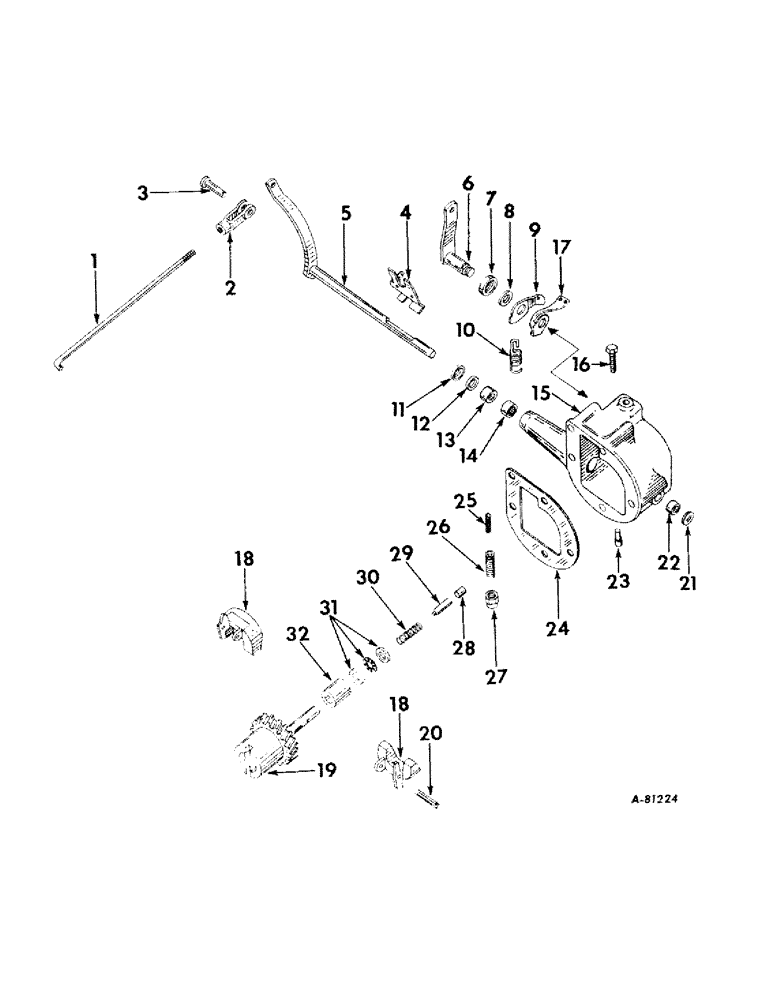

Схема запчастей Case IH 2424 - (046) - GOVERNOR, GASOLINE ENGINE TRACTORS Governor
2
13
8
14
5
10
25
18
4
9
24
12
29
19
20
3
6
11
16
26
1
21
32
18
7
1
23
30
22
15
31
28
27

Артикул

Название

Примечание

Количество

1

375780R1

ROD

governor connecting

1шт.

137130

PIN

1/16 x 7/16 cot

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adjustable rod end

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

4

367711R1

FORK

governor rockshaft

1шт.

131970

SCREW,Sl Fil Hd, #8 - 32 x 1/2"

no. 8 x 1/2 slt-rd-hd mach

2шт.

492-11008

LOCK WASHER,#8

WASHER, lock, #8

2шт.

5

367709R11

ROCKSHAFT

ASSEMBLY, governor

1шт.

6

46947DAXB

LEVER

AND SHAFT, governor speed change

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

7

149345R91

OIL SEAL

SEAL, governor speed change shaft oil

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER, governor spring lever, inside & outside governor housing

1шт.

9

51491DA

LEVER

governor spring

1шт.

10

389452R1

SPRING

governor high speed

1шт.

11

43483D

SEAL RETAINER

RETAINER, governor rockshaft seal

1шт.

12

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor rockshaft

1шт.

13

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

14

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, governor rockshaft needle

1шт.

15

6340DBX

HOUSING

ASSEMBLY, governor, composed of (2) bearing 45753D (1) bushing 46939D, (1) housing 6340DB (NSS), (1) pin 49942D (1) pin 49220D, (1) plug 173531

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

179827

FRONT AXLE

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

16

357432R3

BOLT

STOP, governor speed change lever

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

17

389451R1

SPRING

governor low speed

1шт.

18

393750R1

WEIGHT

governor

2шт.

19

375778R11

GEAR

PINION ASSEMBLY, ignition unit and governor, 33 teeth

1шт.

20

46924D

PIN

governor weight

2шт.

108628

PIN

1/16 x 7/8 cot

2шт.

21

172531

PLUG,Exp, 3/4"

3/4 expansion, governor housing

1шт.

22

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, governor rockshaft needle

1шт.

23

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, governor rockshaft lever retainer

1шт.

24

45875D

GASKET

governor housing

1шт.

25

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

26

31804DA

BODY

governor bumper spring

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

27

129-531

NUT,Crown, 7/16"-14

7/16-20NF low crown

1шт.

28

49220D

STOP

PIN, governor shaft stop

1шт.

29

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

30

49218DA

SPRING

governor bumper

1шт.

31

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BALL BEARING, governor thrust

1шт.

32

49325D

BUSHING

SLEEVE, governor thrust, steel, optional with 363866R1

1шт.

32

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, governor thrust, nylon, optional with 49325D

1шт.

33

391020R92

1шт.

PACKAGE, governor assembly, consists of (1) bearing 43481D (2) bearing 45753D, (1) body 31804DA, (1) bushing 46939D, (1) fork 367711R1, (1) gasket 45875D, (1) housing 6340DBX, (1) lever 46947DAXB, (1) lever 51491DA, (1) nut 114494, (1) nut 114503, (1) nut 131487, (1) nut 272121, (1) oil seal 149345R91, (2) pin 46924D, (1) pin 46942D, (1) pin 49219DA, (1) pin 49220D, (2) pin 108628, (1) pinion 375778R11, (1) plug 172531, (1) retainer 43483D, (1) rockshaft 367709R11, (1) screw 179821, (1) screw 179827, (3) sc

1шт.

391021R92

PACKAGE

1шт.

PACKAGE, governor overhaul service, consists of (1) bearing 43481D, (2) bearing 45753D, (1) bushing 46939D, (1) fork 367711R1, (1) gasket 45875D, (1) lever 46947DAXB, (1) lever 51491DA, (1) oil seal 149345R91, (2) pin 46924D, (1) pin 46942D, (1) pin 49219DA, (2) pin 108628, (1) plug 172531, (1) retainer 43483D, (1) rockshaft 367709R11, (1) screw 179827, (1) seal 43482D, (1) sleeve 49325D, (1) spring 28078D, (1) spring 49218DA, (1) spring 389451R1, (1) spring 389452R1, (1) stop 357432R3, (2) washer 151341R1,

1шт.

Выбрано товаров: 51
